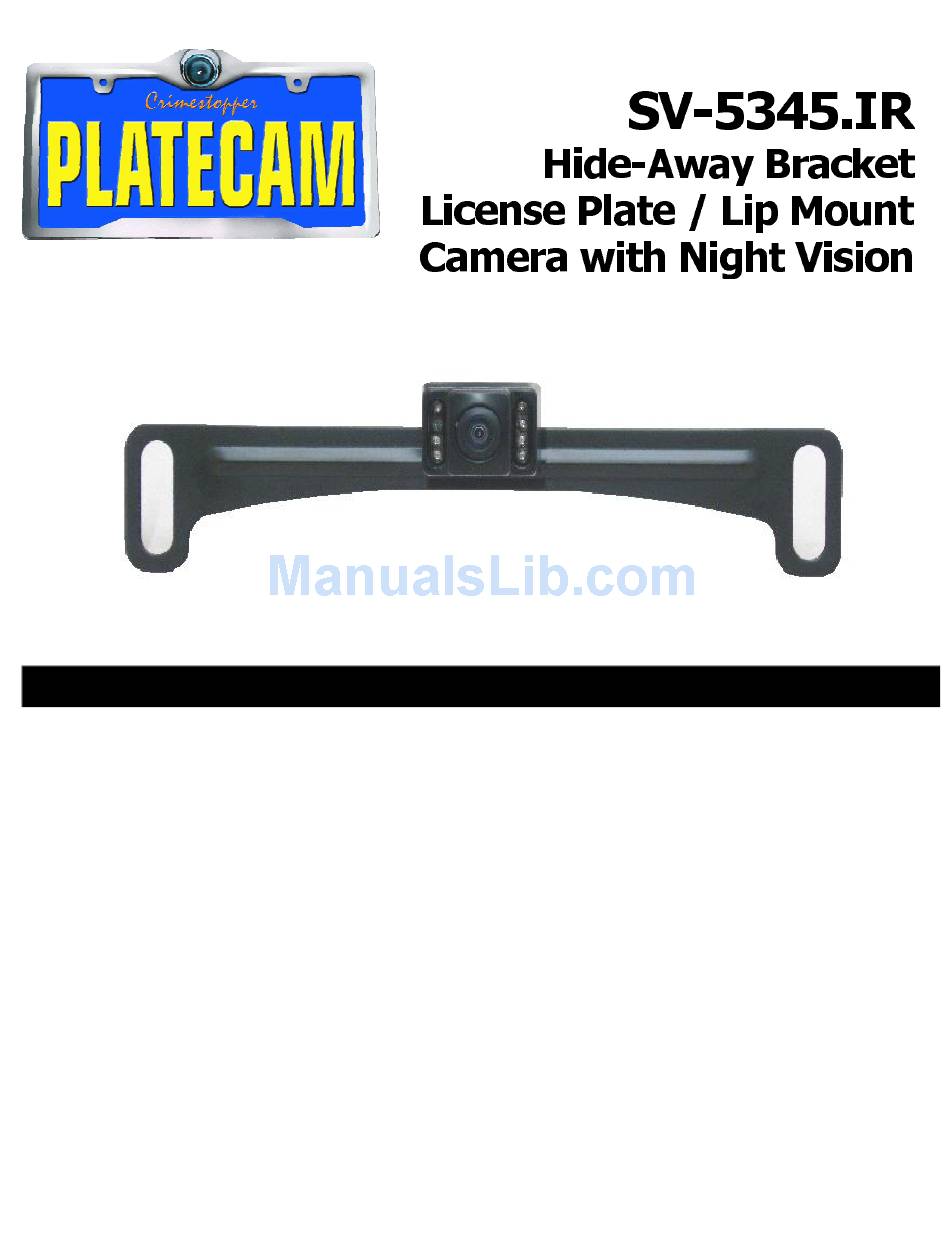

Platecam SV-5345.IR Installation Instructions

Download this manual

The SV-5345.IR is a special designed license plate metal bar back up camera with a super wide

view angle. The SV-5345.IR is designed to be installed in the back of the license plate on any

vehicle. It is easy to install with no drilling required, requiring minimal installation time. This

uniquely designed product can be used for any passenger car, SUV and Van. It can also be

used on many large Semi Trucks, School Buses, and Transit Buses

FEATURES:

• Can be mounted on the license plate or on license plate bezel

• Can alternate between normal and reverse image

• Infrared LED for night vision

• The 150° ultra wide-angle CMOS color camera provides rear images in real time and

eliminates the dangerous "blind-spot" directly behind your vehicle when backing.

• Works well in day or night, on most vehicles.

• Includes distance grid to help the driver when reversing

• The plate cam easily connects with other SecurView products such as the SV-8300.HD

and SV-8400.RM 3.5" LCD monitors. It can also be integrated with your existing OEM or

aftermarket LCD/TFT displays.

• The PlateCam™ is designed for vehicles in which the license plate location is centered

and above the level of the rear bumper. The PlateCam™ may not perform well on

vehicles with low or offset license plate positions.

INSTALLATION INSTRUCTIONS:

Page 1 The SV-5345.IR is a special designed license plate metal bar back up camera with a super wide view angle. The SV-5345.IR is designed to be installed in the back of the license plate on any vehicle. It is easy to install with no drilling required, requiring minimal installation time. This uniquely designed product can be used for any passenger car, SUV and Van.
Page 2 If you have to drill a hole, make sure to seal the hole once you route the wiring through to prevent leaking or moisture damage. 4. The SV-5345.IR is designed to use the existing License Plate mounting equipment OPTION 2: LIP MOUNT 1.
Page 3 REVERSE (MIRROR) IMAGING: The SV-5345.IR Camera has built-in circuitry to “mirror” the image so objects on the right of vehicle appear on the right and objects on the left appear on the left when looking at a standard monitor. If your existing monitor or in-dash monitor has a reverse camera input where the monitor itself performs the mirror image, then your picture will not be correct.
Page 4 PlateCam™ Rear Vision System. The PlateCam™ is designed as a safety enhancement device and is in no way intended as a replacement for rear-view mirrors, side-view mirrors or physically checking the surroundings when backing a vehicle.
