Mazda KF69 79 EZX Installation Instructions Manual

NOTE 2014 INSTALLATION SUPPLEMENT STARTS ON PAGE 9

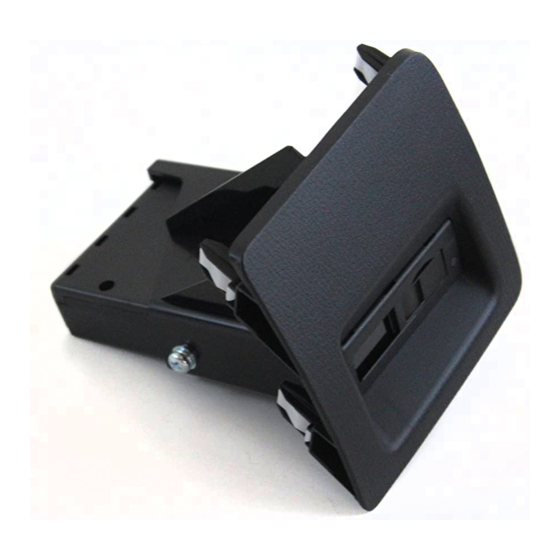

GENUINE CAR-NAVIGATION UNIT

INSTALLATION INSTRUCTIONS

Thank you for purchasing a genuine Mazda accessory.
Before removal and installation, be sure to thoroughly read these instructions.
Please read the contents of this booklet in order to properly install and use the
car-navigation unit. Your safety depends on it.
Keep these instructions with your vehicle records for future reference.
• There are several
safety when installing or removing the car-navigation unit. Always read and follow them
in order to prevent injuries, accidents, and possible damage to the vehicle.
WARNING: Indicates a situation in which serious injury or death could result if
the warning is ignored.
CAUTION: Indicates a situation in which bodily injury or damage to the vehicle
could result if the caution is ignored.
• For areas indicating the tightening torque in this instruction manual, tighten to the
specified torque using a torque wrench. For areas in which the tightening torque is
indicated inside parentheses ( ), the tightening torque is indicated as a reference value,
however tightening using a torque wrench is not necessary.
• Do not modify the car-navigation unit.
• Do not install the car-navigation unit in any way other than described in the following
instructions.
• If in any doubt, please ask your Mazda dealer to install the accessory in order to
prevent errors in installation.
• If you have any questions about the use of the accessory, ask your Mazda dealer for
proper advice before using it.
• Mazda and its suppliers are not responsible for injuries, accidents, and damage to
persons and property that arise from the failure of the dealer or installer to follow these
instructions.
• To ensure safety and reliability of the work, installation, removal and disposal work
must be carried out by an Authorized Mazda Dealership.
• Be careful not to lose removed parts, and be sure that they are kept free from
scratches, grease or other dirt.
PART NUMBER: KF69 79 EZX
NOTE
To the dealer
• Please turn over these instructions to the customer after installation.
To the customer
• Keep these instructions after installation. The instructions may be necessary
for installing other optional parts or removal of this accessory.
• Should the vehicle or this accessory be resold, always leave these instructions
with it for the next owner.
WARNING
WARNING and CAUTION sections in this booklet concerning
PART NAME: CAR-NAVIGATION UNIT
KD37 79 EZX
VEHICLE: MAZDA CX-5
1
(MEXICO)
(US/CANADA)
