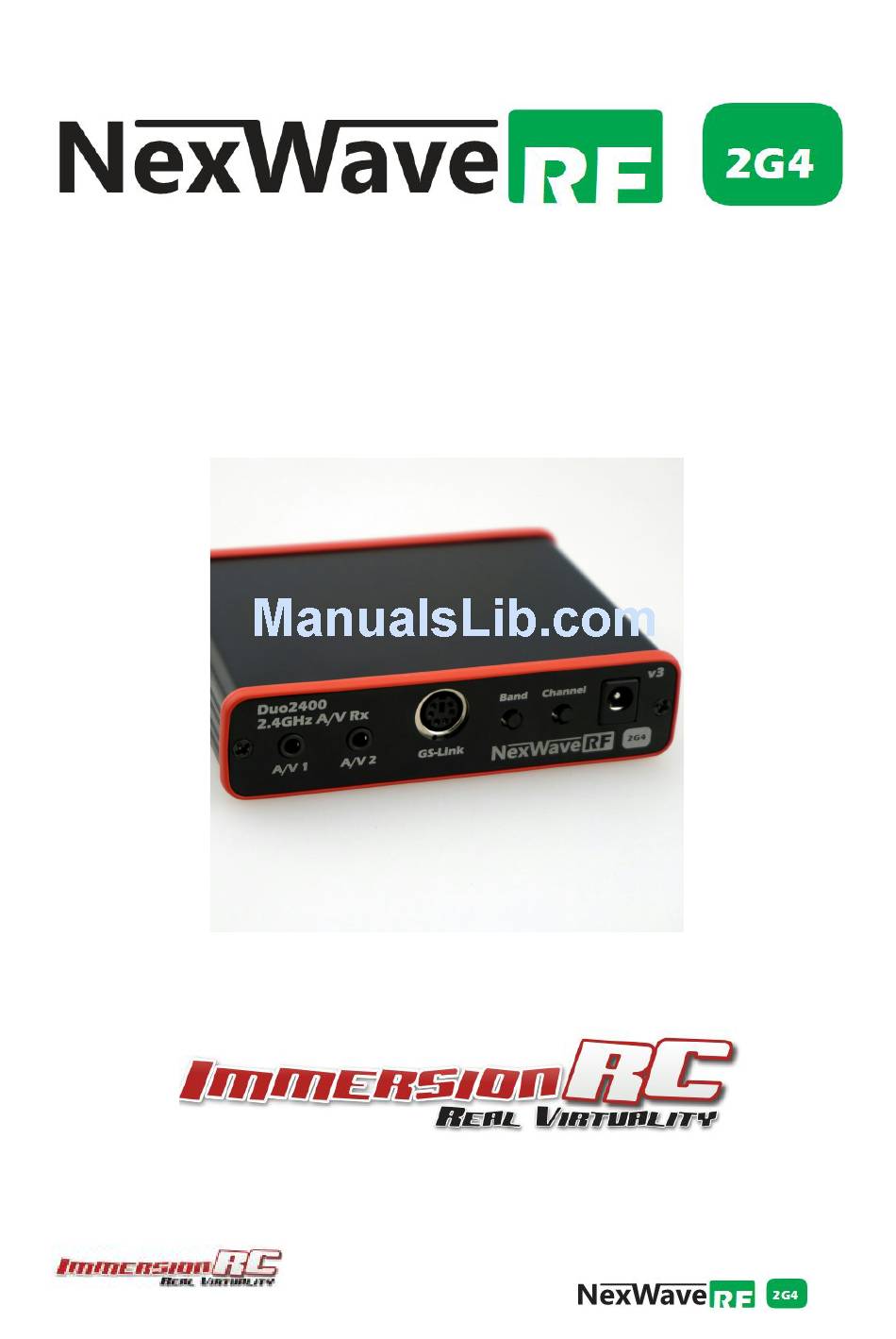

- Page 1 Duo 2400 V3 Diversity Receiver Instruction manual - International edition Rev 1.0 - 30 Oct 2015 1 ...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Feature overview Overview Package Content Connectors and Pin-Outs A/V connection Power Groundstation Link Connection Instructions on use Operating the Duo 2400 Diversity Receiver Beep Codes Low Battery Volts and Low Battery 100mV Rx-change Ticks Optimal Antenna Connection Antenna Selection &... -
Page 3: Feature Overview
● Standard 2.4GHz band 8 channel frequencies ● Additional 2.4GHz band 12 channel frequencies ● Dual, buffered AV outputs ● Automatic user configurable low battery alarm ● High bandwidth stereo-audio ● >-90dB typical sensitivity ● Single-cable ImmersionRC ground station link Overview One of the challenges of video downlinks on high frequency bands, such as 2.4GHz, is the signal breakup due to multipathing. ‘Nulls’ in the received signal occur when the direct signal from the transmitter arrives at the same time as a reflected signal, which happens to be 180 degrees out of phase with the direct signal. ... -
Page 4: Package Content
Package Contents ● Duo2400 v3 Receiver ● 2x linear polarized antennas with SMA connector (rubber ducky style) ● 1x power connection lead ● 2x 3.5mm Male to 3x Phono cable ● 2x ImmersionRC logo stickers 4 ... -
Page 5: Connectors And Pin-Outs
Video, and Stereo-Audio are available on these jacks, which can be connected directly to an LCD headset, display, or recording device. The A/V outputs may also be used to connect to the ImmersionRC iTelemetry dongle, to decode telemetry data from your model on your smart-phone or tablet (iPhone, iPad, and Android devices supported). -
Page 6: Groundstation Link Connection
This connector may be used to power the receiver, control band and channel options, and also interface to the Video, and Audio output lines. The ImmersionRC Antenna Tracker v2, currently shipping, includes a compatible connector. Instructions on use... - Page 7 See beep codes in the table below. 7 ...
-
Page 8: Beep Codes
Beep Codes Beep Code Menu Menu Choices Low Batt Volts 1 – Auto (for 2S or 3S LiPo)* . 2 – 6v 3 – 7v 4 – 8v 5 – 9v 6 –10v 7 – 11v 8 – 12v Default: 6V for 2S, 9V for 3S Low Batt 1 –... -
Page 9: Rx-Change Ticks
In Auto mode (the default), the receiver will sense the attached battery voltage, and will set the alarm voltage accordingly (6V for 2S and 9V for 3S LiPo). This mode is designed only for use with LiPo batteries. For use with NiCD, NiMh, or other batteries, set the alarm voltage manually, for example: 9.2v set LowBattVolts to 5 (9v), and LowBatt100mV to 3 (0.2v) -
Page 10: Optimal Antenna Connection
2510 Lawmate Band 2 2414 2432 2450 2468 Airwave Band 3 2370 2396 2410 2430 International Band Band 4 2396 2396 2410 2430 NexWaveRF USA (US) Note that the ImmersionRC 700mW 2.4GHz transmitters are available (currently) in two versions, an international version, which uses the common Lawmate frequencies (Band 1), and a USA (Band 4, US) version, which uses three frequencies legal for use in the USA (and legal for US retailers to ship to domestic customers) Band 3 falls within the UK/EU Amateur radio band, and is available by special order (contact your local retailer if you are interested in this product) 10 ... -
Page 11: Support
ImmersionRC product contact them first. For support on issues involving equipment from other brands and also general support for ImmersionRC products, the best place to go is the ImmersionRC section of F PVlab.com We actively monitor this forum and provide support here. -
Page 12: Like Us
We would like thank you for purchasing this ImmersionRC product. Like ImmersionRC’s Facebook page and be kept up-to-date with news, product releases, firmware updates, tips and tricks, and other information relevant to the FPV hobbyist. http://www.facebook.com/ImmersionRC You can also follow us on Google Plus google.com/+immersionrc...
