Neptronic TUCB24C6X2 User Manual

Tucb & tuhb series universal wall-mount controller
Hide thumbs Also See for TUCB24C6X2:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual

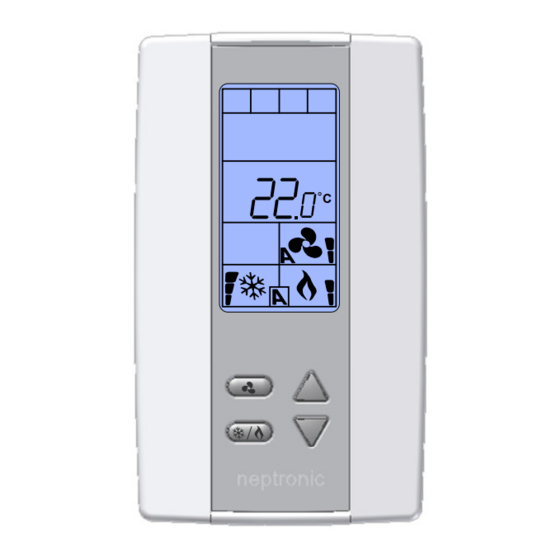

Universal Wall-Mount Controller
TUCB & TUHB Series
BACnet Communication Module User Guide
C
TUCB24C6X2 with Internal Temperature Sensor (6 binary/2 analog outputs)
TUHB24C6X2 with Internal Temperature and Humidity Sensor (6 binary/2 analog outputs)


TUXB24C6X2-BACnet Guide-160603.docx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUCB24C6X2 and is the answer not in the manual?

Questions and answers

Related Manuals for Neptronic TUCB24C6X2

Summary of Contents for Neptronic TUCB24C6X2

  • Page 1       Universal Wall-Mount Controller TUCB & TUHB Series BACnet Communication Module User Guide TUCB24C6X2 with Internal Temperature Sensor (6 binary/2 analog outputs) TUHB24C6X2 with Internal Temperature and Humidity Sensor (6 binary/2 analog outputs)     TUXB24C6X2-BACnet Guide-160603.docx...

  • Page 2: Table Of Contents

    Object Table Information  ..............................  8   Analog Input (AI) ................................  8   Analog Output (AO)................................  8   Analog Value (AV) ................................  9   Binary Input (BI) ................................  1 4  Binary Output (BO)  ...............................  1 4  Binary Value (BV) .................................  1 4  Multi State Value (MSV)  ...............................  1 7  Other ....................................  2 1  Notes ....................................  2 2      www.neptronic.com Page | i  ...

  • Page 3: Introduction

    The controller provides a BACnet network interface between BACnet client devices and Neptronic Controller series devices. It uses the BACnet Master Slave/Token Passing (MS/TP) protocol at the BACnet MAC layer.

  • Page 4: Bacnet Properties Configuration

    For more information, refer to the MAC Address and Max_Master section. Configure the name of the device through the WriteProperty service to Name of the  Device Object.Object_Name device Device Object.Object_Name. For example, TUCB24       www.neptronic.com Page | 2  ...

  • Page 5: Configuration Options

    This configuration is better than Example 1 but it is still not optimal. The Max_Master is set to the most efficient value but the gap between the two MAC addresses is high. Therefore, each unit must poll four units until it finds the right one to pass the token.   www.neptronic.com Page | 3  ...

  • Page 6: Copy Config

     Cold Reset. The Cold Reset restarts the controller with Factory configuration. Warning: The Cold Reset erases the actual configuration when setting the MSTP address. Therefore, exercise caution while performing a Cold Reset.     www.neptronic.com Page | 4  ...

  • Page 7: Device Object Properties

    TUCB24, programmable up to 32 Bytes Description Programmable up to 32 Bytes (default: BACnet Unit Controller) Object_Type Device System_Status Operational Vendor_Identifier Always 153 Vendor_Name Always Neptronic Model_Name Example, TUCB24 Firmware_Revision currently, 1.17 Application_Software_Version currently, 1.02 Protocol_Version Always 1 Protocol_Revision Always 14 DataBase_Revision Default 0;...

  • Page 8: Object Types Supported

    Value  Description available for BV.30.  Priority_Array  Object automatically returns to Normal after a  Relinquish_Default programmable time. Refer to Proprietary property #1002 of Device Object in Table 2 - Device Object Properties. www.neptronic.com Page | 6  ...

  • Page 9: Out Of Service Property

    Out of Service Property Neptronic controllers offer the use of the Out of Service writable property. When the value of this property is set to True, it disconnects the object from the physical input, enabling you to input other values. This is useful for special applications or while troubleshooting.

  • Page 10: Object Table Information

    Percentage value of analog output 1, based on demand. 0 to 100%, Resolution 0.1% Cov Increment Present Value AO.2 AnalogOutput2 Percentage value of analog output 2, based on demand. 0 to 100%, Resolution 0.1% Cov Increment     www.neptronic.com Page | 8  ...

  • Page 11: Analog Value (Av)

    Configuration value that represents the range through which the controller will modulate the Present Value 1ºF to 9ºF or 0.5ºC to 5.0ºC AV.25 Cfg_Heating2PropBand heating output from 0 to 100% for Heating Ramp 2. Cov Increment Resolution 1ºF/0.5ºC www.neptronic.com Page | 9  ...
  • Page 12 5% RH to 95% RH, Resolution 0.1% RH Cov Increment Configuration value used to calibrate the internal relative humidity sensor (irh). Present Value AV.71 Cfg_InternHumidityOffset* ± 5%, Resolution 0.1% RH Only available on model TUHB24C6X2. Cov Increment www.neptronic.com Page | 10  ...
  • Page 13 100 to 5,000 PPM, Resolution 50 PPM Cov Increment Configuration value that represents the maximum limit of CO2 concentration before the controller Present Value AV.97 CO2Setpoint 100 to 2,000 PPM, Resolution 10 PPM sends an alarm. Cov Increment www.neptronic.com Page | 11  ...
  • Page 14 15% to 80%, Resolution 1% Cov Increment Present Value AV.134 Cfg_BinaryOutput5OpenPos See AV.116 0% to 76% (0 to BO5closepos-4%), Resolution 1% Cov Increment Present Value AV.135 Cfg_BinaryOutput5ContactDelay See AV.117 0 to 15 minutes, Resolution 1 minute Cov Increment www.neptronic.com Page | 12  ...
  • Page 15 Value is used to verify whether the copy to the controllers operation was successful or has failed Present Value AV.167 CopyCfgResult 0 to 254, Resolution 1 No unit while using the Copy Config option. Cov Increment     www.neptronic.com Page | 13  ...

  • Page 16: Binary Input

    Configuration to allow users to turn off the controller. (0) Enable - user can turn off the controller, (1) BV.3 Cfg_UserSysOffMode Present Value 0 = Disable, 1 = Enable Disable - prevents the user from turning off the controller. www.neptronic.com Page | 14  ...
  • Page 17 If set to (1) Disable, the user must Present Value 0 = Enable, 1 = Disable set the fan speed manually. Configuration value to select between the Standard (Neptronic) and Advanced (OE1) fan speed BV.21 Cfg_FanSpeedOption Present Value 0 = Standard, 1 = Advanced specifications.
  • Page 18 If object is ON, all buttons are inactive and PRG mode is not accessible via the controller. Present Value 0 = Off, 1 = On BV.90 CopyCfgExecute When using Copy Config, this value is used to start the copy to other controllers. Present Value 0 = No, 1 = Yes www.neptronic.com Page | 16  ...

  • Page 19: Multi State Value (Msv)

    (2) Dehumidification: The TUxB is authorized only to dehumidify. 3 = Humidification (3) Humidification: The TUxB is authorized only to humidify. 4 = Off (4) OFF: The TUxB will not consider relative humidity setpoints and no action will be taken. www.neptronic.com Page | 17  ...
  • Page 20 2= Medium MSV.27 Cfg_FanModeWindowOpened Present Value 3= High (2) Medium: Fan is limited to medium speed. 4 = Auto (3) High: Fan is limited to high speed. (4) Auto: Fan automatically changes speed, based on demand. www.neptronic.com Page | 18  ...
  • Page 21 (8) Selector Switch: Controller activates the Local mode. The controller shuts off fan outputs. (11) = Occupancy (9) Ch Ov Contact Norm Cool: Heating mode activates when the contact is closed and cooling (12) = Night Set Back mode activates when the contact is opened. www.neptronic.com Page | 19  ...
  • Page 22 (9) Humidify With Fan: The controller modulates the output based on the humidify demand. (10) CO2Alarm: Carbon dioxide (CO2) alarm. The controller activates or deactivates the output based on carbon dioxide levels. www.neptronic.com Page | 20  ...

  • Page 23: Other

    Program Change will be reset and the firmware will be LOADED into the memory. Use only the binary file are supported provided by Neptronic. Firmware binary file. Set to LOAD to program the file in application memory. The controller File Size FIL.1...

  • Page 24: Notes

    Notes     400 Lebeau blvd, Montreal, Qc, H4N 1R6, Canada www.neptronic.com Toll free in North America: 1-800-361-2308 Tel.: (514) 333-1433 Fax: (514) 333-3163 Customer service fax: (514) 333-1091 Monday to Friday: 8:00am to 5:00pm (Eastern time)    ...
