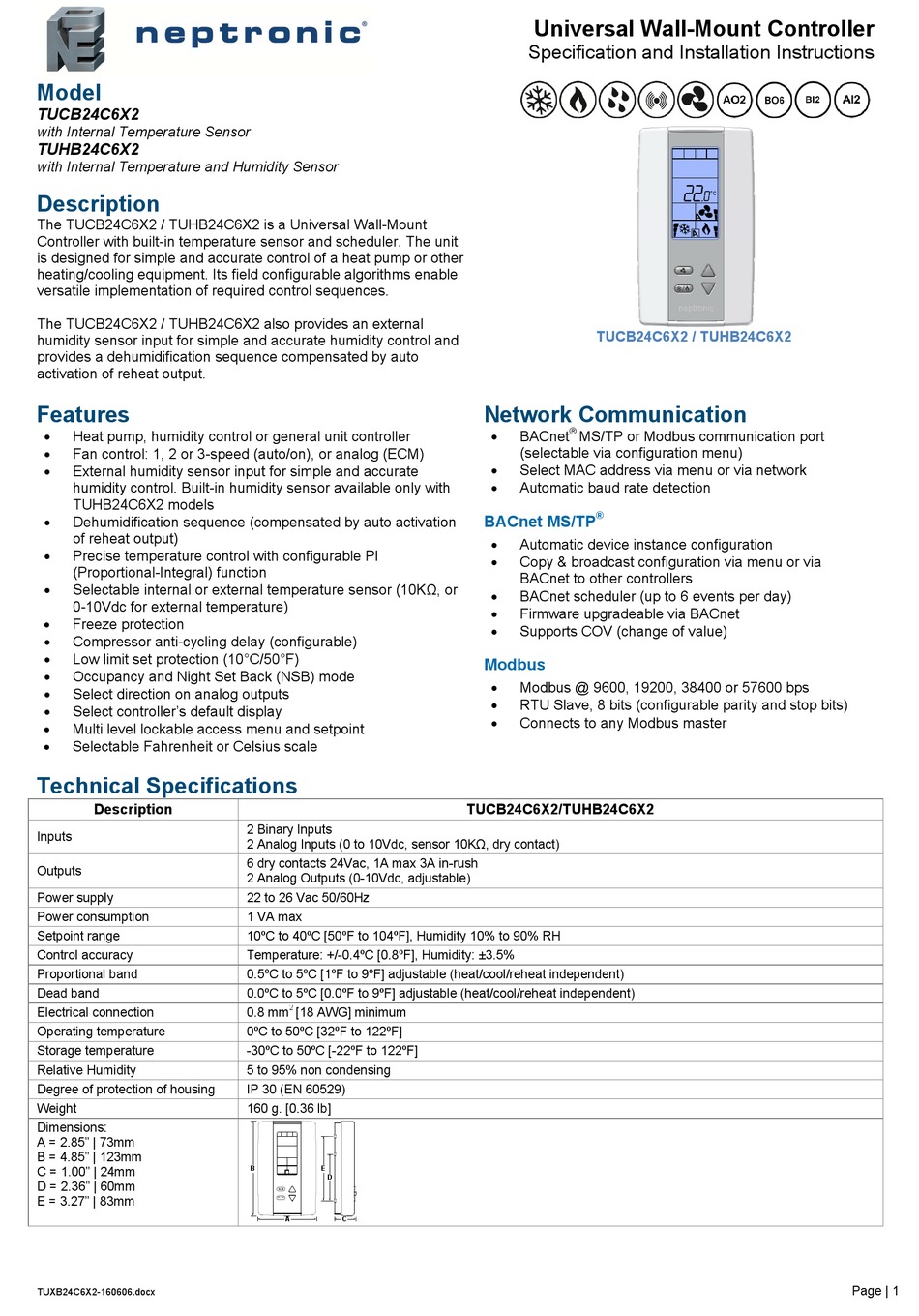

Neptronic TUCB24C6X2 Installation Instructions Manual

Universal wall-mount controller
Hide thumbs Also See for TUCB24C6X2:

Advertisement

Quick Links

Model
TUCB24C6X2
with Internal Temperature Sensor
TUHB24C6X2
with Internal Temperature and Humidity Sensor
Description
The TUCB24C6X2 / TUHB24C6X2 is a Universal Wall-Mount
Controller with built-in temperature sensor and scheduler. The unit
is designed for simple and accurate control of a heat pump or other
heating/cooling equipment. Its field configurable algorithms enable
versatile implementation of required control sequences.
The TUCB24C6X2 / TUHB24C6X2 also provides an external
humidity sensor input for simple and accurate humidity control and
provides a dehumidification sequence compensated by auto
activation of reheat output.
Features
Heat pump, humidity control or general unit controller
Fan control: 1, 2 or 3-speed (auto/on), or analog (ECM)
External humidity sensor input for simple and accurate
humidity control. Built-in humidity sensor available only with
TUHB24C6X2 models
Dehumidification sequence (compensated by auto activation
of reheat output)
Precise temperature control with configurable PI
(Proportional-Integral) function
Selectable internal or external temperature sensor (10KΩ, or
0-10Vdc for external temperature)
Freeze protection
Compressor anti-cycling delay (configurable)
Low limit set protection (10°C/50°F)
Occupancy and Night Set Back (NSB) mode
Select direction on analog outputs
Select controller's default display
Multi level lockable access menu and setpoint
Selectable Fahrenheit or Celsius scale

Technical Specifications

Description
Inputs
Outputs
Power supply
Power consumption
Setpoint range
Control accuracy
Proportional band
Dead band
Electrical connection
Operating temperature
Storage temperature
Relative Humidity
Degree of protection of housing
Weight
Dimensions:
A = 2.85" | 73mm
B = 4.85" | 123mm
C = 1.00" | 24mm
D = 2.36" | 60mm
E = 3.27" | 83mm
TUXB24C6X2-160606.docx
2 Binary Inputs
2 Analog Inputs (0 to 10Vdc, sensor 10KΩ, dry contact)
6 dry contacts 24Vac, 1A max 3A in-rush
2 Analog Outputs (0-10Vdc, adjustable)
22 to 26 Vac 50/60Hz
1 VA max
10ºC to 40ºC [50ºF to 104ºF], Humidity 10% to 90% RH
Temperature: +/-0.4ºC [0.8ºF], Humidity: ±3.5%
0.5ºC to 5ºC [1ºF to 9ºF] adjustable (heat/cool/reheat independent)
0.0ºC to 5ºC [0.0ºF to 9ºF] adjustable (heat/cool/reheat independent)
2
0.8 mm
[18 AWG] minimum
0ºC to 50ºC [32ºF to 122ºF]
-30ºC to 50ºC [-22ºF to 122ºF]
5 to 95% non condensing
IP 30 (EN 60529)
160 g. [0.36 lb]
B
E
D
ºF / º C
A
C
Universal Wall-Mount Controller
Specification and Installation Instructions
TUCB24C6X2 / TUHB24C6X2
Network Communication
®
BACnet
MS/TP or Modbus communication port
(selectable via configuration menu)
Select MAC address via menu or via network
Automatic baud rate detection
®
BACnet MS/TP
Automatic device instance configuration
Copy & broadcast configuration via menu or via
BACnet to other controllers
BACnet scheduler (up to 6 events per day)
Firmware upgradeable via BACnet
Supports COV (change of value)
Modbus
Modbus @ 9600, 19200, 38400 or 57600 bps
RTU Slave, 8 bits (configurable parity and stop bits)
Connects to any Modbus master
TUCB24C6X2/TUHB24C6X2
C
Page | 1
