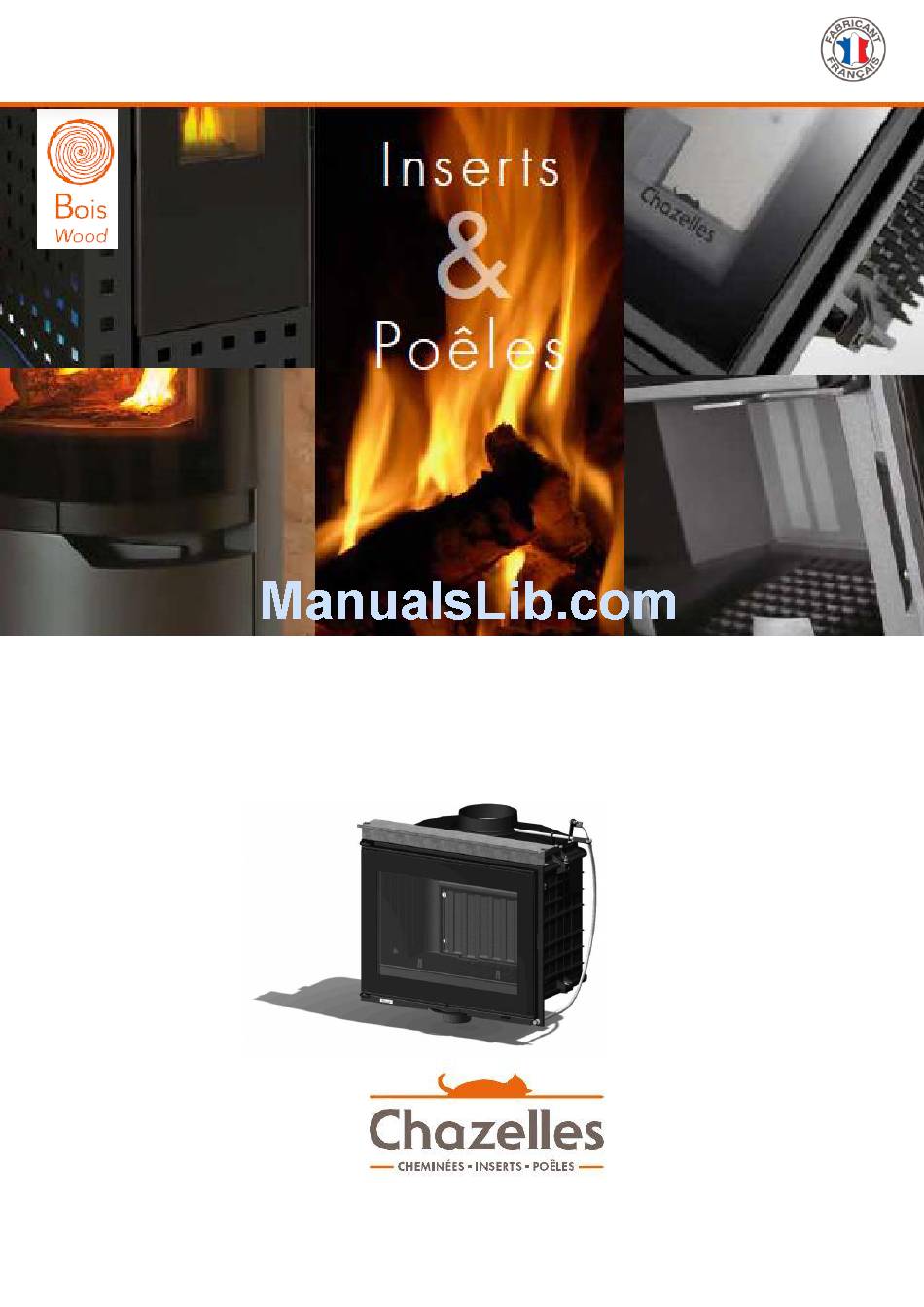

- Page 1 User Manual Wood insert F70L...
-
Page 2: Table Of Contents
TABLE DES MATIÈRES DIMMENSIONS ............................3 DECLARATION OF PERFORMANCE ......................4 GENERAL POINTS ............................. 5 SECURITY ..............................5 Presentation of the F70 L ......................... 6 ACCESSOIRES ............................6 ASSEMBLY OF THE OUTSIDE AIR UNION CONE ..................6 PARTICULAR PRESCRIPTIONS CONCERNING THE OUTSIDE AIR INLET ............. 7 SET UP THE DEFLECTOR ........................... - Page 3 AFTER SALES SERVICE ..........................17 CONTRACTUAL WARRANTY ........................17 GENERAL POINTS ..........................17 Duration ............................. 17 Legal warranty ............................ 17 Validity ............................... 17 EXCLUSION ............................. 18 Wear parts ............................18 WARRANTY CERTIFICATE ........................19...
-
Page 4: Dimmensions
DIMMENSIONS... -
Page 5: Declaration Of Performance
2. Numéro de type, de lot ou de série ou tout autre élément permettant l’identification du produit de construction, conformément à l’article 11, paragraphe 4 : Insert F70L 3. Usage ou usages prévus du produit de construction, conformément à la spécification technique harmonisée applicable, comme prévu par le fabricant: Chauffage des locaux dans les bâtiments résidentiels sans... -
Page 6: General Points
GENERAL POINTS This manual is focused on the assembly, use and maintenance of the F70L insert. It must be kept during the whole lifetime of the appliance. The installation of a fireplace equipped with a Chazelles insert must comply with: The regulations in force The instructions given in the documents supplied with the appliance. -
Page 7: Presentation Of The F70 L

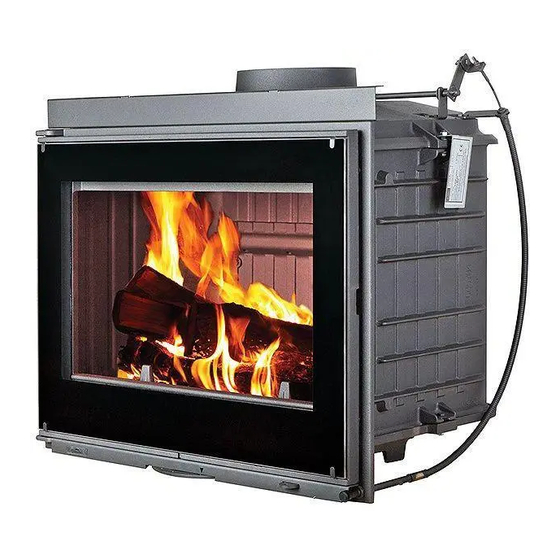

Presentation of the F70 L Air control Door lock Draught control Union cone for outside air connection Hood shutter Union cone smoke connection ACCESSOIRES 1x Union cone for air 4x Screws CHC M5-12 4x Washers L5 1x Deflector 1x Cold hand 1x Squeegee Before installing the appliance, you must check if any elements are missing. -
Page 8: Particular Prescriptions Concerning The Outside Air Inlet
PARTICULAR PRESCRIPTIONS CONCERNING THE OUTSIDE AIR INLET Please refer to the installation manual of the insert for the setup of the combustion air inlet. There are 2 possibilities: Creation of a new surround: If a surround has to be created, you should set up the insert on a concrete sheet. Rehabilitation of an existing surround In this case, it is necessary to pierce the hearth concrete slab, following the dimensions of the appliance (below). -
Page 9: Draught Control Operation
DRAUGHT CONTROL OPERATION The aim of the regulation mechanism of the draught control is to adjust the draught. It allows, according to the different phases, to act on the smoke flow. Then, it allows choosing the fire intensity and the power level desired. -
Page 10: Opening Of The Door
OPENING OF THE DOOR Be careful, the opening of the door when it is hot, must always be done with the cold hand. COMBUSTION CONTROL OPERATION The aim of the combustion control is to adjust the combustion. It allows, according to its various positions, to act on the primary and secondary air flow. -
Page 11: High And Low Ventilation
Position B : Position C : HIGH AND LOW VENTILATION Please refer to the installation manual for the implementation of the ventilation around the appliance. Attention, to avoid any kind of surrounds and insert overheating, the ventilations section (low and high), must be scrupulously respected (pleases refer to the technical sheet of the appliance). -
Page 12: Assemble Of The Frame (In Option)
ASSEMBLE OF THE FRAME (IN OPTION) For the frame options and their dimensions, please refer to the CHAZELLES frame manual. Frame S Frame L Ref: FOYACFFCADRESD7000 Ref: FOYACFFCADRELD7000 - Place the frame on the insert - Check for the balance of the frame - Fasten the frame Cadre à... -
Page 13: Assembly Of The Convection Mantle (In Option)
Favour an operation of your insert by using small loads. General points F70L inserts are made to be operated only with woods burning logs. The maximal length of the logs is about 50 cm. It is absolutely forbidden to use inside the appliance, another material than wood burning logs. -
Page 14: Instruction For Use
INSTRUCTION FOR USE First lightings Don’t make a too strong a fire! The first lighting should be moderate and should not burn for more than three hours. During first lightings, solvents in the paintwork may give off unpleasant smells. Ventilate the room! Lightning We advise you to light the fire from the top. -
Page 15: Maximum Power Operation
Maximum power operation For an optimal heating: Load the appliance with 3 logs (diameter around 12 cm) Combustion handle Draught handle Position B Open position Nominal power operation Combustion handle Draught handle Position B Closed combustion Operation at a low speed Combustion handle Draught handle Position C... -
Page 16: Maintenance
MAINTENANCE De-ashing The air required for combustion of wood arrives beneath the grid when the primary air damper is open, and also keeps the grid cool. In order to obtain optimal performance and avoid degradation of the grid due to overheating, it is therefore essential to prevent its obstruction by regularly removing ashes. -
Page 17: Safety Rules
SAFETY RULES The fireplace radiates a lot of heat through the window glass. Do not place any heat-sensitive materials or objects closer than 1.20 metres from the glass. Never operate the appliance without the ash box in position. When removing ashes, empty the ash box into a metal or non-inflammable container reserved exclusively for the purpose. -
Page 18: After Sales Service
(which doesn’t comply with legal and regulatory provisions). In the same way, Chazelles should in no way be held responsible for a normal wear and tear of the equipment or its abnormal use, in particular in cases of use of the equipment in conditions different from those for which it was dedicated to. -
Page 19: Exclusion
Wear parts are warranted one year from the date of delivery of the appliance. Out of warranty Wear parts INDICE DESCRIPTION CODE Warranty Serigraphic window -F70L-660x487 4AX60605720 Out of warranty Air guide 1AT60605775 1 year Tresse Eversil 9 noir 5AIT650_009... -
Page 20: Warranty Certificate
WARRANTY CERTIFICATE The purchaser designated hereunder acknowledges his/her awareness of the various informational documents on use and maintenance to ensure proper operation of the appliance PUSCHASER Date:………………………………………………………………………………… Last name:…………………………………………………………………………… First name :…………………………….……………………………………………… Address :……………………………………………………………………………………………………………………….……… ……………………………………………………………………………………………..…………………………………………… ……………………………………………………………………….…………………………………………….…………………… City:………………………………………………………………………………… Country… Firm VENDOR: document to be returned within the month following purchase at the sales outlet for the appliance Reference:…………………………………………………..…………………... - Page 21 Reproduction is strictly forbidden without prior written permission from Chazelles company. Chazelles does not warranty that this document is error-free and reserves the right to update, correct or modify it at any time, without notice, in the interests of the customers.
