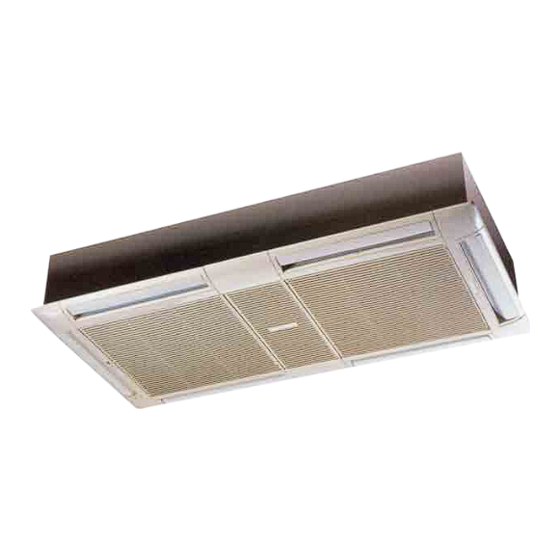

Chilled or hot water cassette
Hide thumbs Also See for K 30 OG 2T:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation and Maintenance Manual
Installation and maintenance manual
Manuel d'installation et de maintenance
Installations- und Wartungshandbuch
Manuale di installazione e di manutenzione
Manual de instalación y de mantenimiento
K 30 OG 2T
K 45 OG 2T
K 45 OG 4T
English
CHILLED OR HOT WATER CASSETTE
CASSETTE EAU GLACEE OU EAU CHAUDE
KALTWASSER ODER GEHEIZTESWASSER -KASSETTE
CASSETTA ACQUA GHIACCIATA O RISCALDATA
CASETE AGUA HELADA O CALENTADA
IOM KOG 02-N-3ALL
Part number / Code / Teil Nummer / Codice / Código : 3990269
Supersedes / Annule et remplace / Annulliert und ersetzt /
Annulla e sostituisce / Anula y sustituye : IOM KOG 02-N-2ALL
Français
Deutsch
Italiano
Español

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K 30 OG 2T and is the answer not in the manual?

Questions and answers

Related Manuals for Airwell K 30 OG 2T

Summary of Contents for Airwell K 30 OG 2T

  • Page 1 Installation and maintenance manual Manuel d’installation et de maintenance Installations- und Wartungshandbuch Manuale di installazione e di manutenzione Manual de instalación y de mantenimiento K 30 OG 2T K 45 OG 2T K 45 OG 4T English Français Deutsch Italiano Español...
  • Page 3 INSTALLATION INSTRUCTION NOTICE D’INSTALLATION INSTALLATIONSHANDBUCH ISTRUZIONI INSTALLAZIONE INSTRUCCIONES DE INSTALACIÓN...

  • Page 4: Table Of Contents

    CHILLED WATER CASSETTE ONTENTS 1 SAFETY PRECAUTIONS .................... 3 2 DESCRIPTION ......................4 2.1 PACKAGE CONTENTS ............................. 4 2.2 2 PIPES CASSETTE DIMENSIONS ........................4 2.3 WEIGHTS ............................... 4 2.4 4 PIPES CASSETTE DIMENSIONS ........................5 2.5 WEIGHTS ............................... 5 3 GENERAL .........................

  • Page 5: Safety Precautions

    CHILLED WATER CASSETTE AFETY PRECAUTIONS ELECTRICAL POWER MUST BE SWITCHED OFF BEFORE STARTING ANY WORK ON CONTROL BOXES The aim of this manual is to provide cassette users with instructions for installation, commissioning, operation and maintenance. It does not contain the complete description of all the maintenance operations guaranteeing the unit’s long life and reliability. Only the services of a qualified technician can guarantee the unit’s safe operation over a long service life.

  • Page 6: Description

    CHILLED WATER CASSETTE ESCRIPTION PACKAGE CONTENTS Cassette Documentation bag Angle attachment fittings Fascia assembly Fastener bag: Angle brackets + screws Rubber shock absorbing pads Treated air distribution frame screws Fascia clips 2 PIPES CASSETTE DIMENSIONS WEIGHTS MODELS 30 2T 45 2T Suspended ceiling T bar (suspended ceiling) WEIGHTS (kg)

  • Page 7: Pipes Cassette Dimensions

    CHILLED WATER CASSETTE ESCRIPTION CONTINUED 4 PIPES CASSETTE DIMENSIONS WEIGHTS Suspended ceiling MODELS 45 4T T bar (suspended ceiling) WEIGHTS (kg) Evaporator Intake grille Electrical connection Condensate evacuation Ø 15 Hot water outlet RC1/2" Hot water intake RC1/2" Cold water outlet RC1" Cold water intake RC1"...

  • Page 8: General

    CHILLED WATER CASSETTE ENERAL ELECTRICAL SPECIFICATION Models 30 2P 45 2P with heating without heating with heating without heating Nominal current 0.96 Maximal current 22.6 1.27 1.35 Fuse rating aM ** Fuse rating ASE / VDE Power supply ~ 230V - 50 Hz 3N ~ 400V - 50 Hz ~ 230V - 50 Hz 3N ~ 400V - 50 Hz...

  • Page 9: Installation

    CHILLED WATER CASSETTE NSTALLATION INSTALLATION LOCATION Installing the cassette will be easier with the use of a fork lift truck. Use the packing base by placing it between the Do not install the cassette in a room where gasses, acids or cassette and the truck forks.

  • Page 10: Cassette Fitting

    CHILLED WATER CASSETTE NSTALLATION CONTINUED WARNING ! If it is indented to install ducting to an adjacent room, refer to § 4.4 for removal of the pre-punched panel before installing the cassette. CASSETTE FITTING Fix the screws to fix the corner irons To make the assembly easier the electrical box can be In the event that the suspended ceiling is 300 mm from the disassembled by removing 2 screws, and disconnect the...

  • Page 11: Connections

    CHILLED WATER CASSETTE ONNECTIONS CONDENSATE EVACUATION The condensate evacuation pipe must be heat insulated To ensure effective condensate evacuation, the downward to a thickness of 5 to 10 mm with insulating material such slope must be 1 cm per metre without any restricted or as polyurethane, propylene or neoprene (Fireproofing ascending section.

  • Page 12: Electrical Connection

    CHILLED WATER CASSETTE LECTRICAL CONNECTION ELECTRICAL CONNECTION The manufacturer and their representatives decline all responsibility for any accidents caused by inadequate or Take care ! non-existent earthing of the installation. Before starting any electrical connection, check that the electrical supply corresponds to the All the cassettes are intended to operate on a normal voltage specification indicated on the unit’s maker’s plate.

  • Page 13: Electric Heating

    CHILLED WATER CASSETTE LECTRICAL CONNECTION CONTINUED ELECTRIC HEATING Take care ! Each electric heating system is equipped with 2 SAFETY The electrical coil must never operate without the DEVICES. One is reset automatically, the other is manually fan turning. reset. They cut off electrical supply to the heating resistances as soon as an operating anomaly is detected.

  • Page 14: Electricity

    CHILLED WATER CASSETTE LECTRICITY THERMOSTAT LOCATION The unit must be installed and fitted in Also ensure that the thermostat is located in the room’s normal thermal currents and that it is not located in shelving accordance with current safety standards or covered by curtains.
  • Page 15 CHILLED WATER CASSETTE LECTRICITY CONTINUED ON / OFF key Operating mode selection key for COOLING HEATING A U TO M AT I C C O O L I N G / H E AT I N G REGULATION, FAN ONLY I FEEL key: local detection of temperature V E N T I L AT I O N S P E E D o r A U TO M AT I C VENTILATION selection key...

  • Page 16: Room Thermostat Trm-Vp And Trm-Fa

    CHILLED WATER CASSETTE LECTRICITY CONTINUED ROOM THERMOSTAT TRM-VP AND TRM-FA The room thermostat of the air conditioner regulates the room temperature. It is designed for closed, dry rooms such as flats, offices, etc. Maximum acceptable relative humidity of the air : 95%. This value should not be exceeded.

  • Page 17: Final Operations

    CHILLED WATER CASSETTE LECTRICITY CONTINUED FINAL OPERATIONS ADJUSTMENT OF THE TEMPERATURE RANGE The room thermostat is set in the factory for a minimum temperature of +5°C and a max. temperature of +30°C. Two rings are provided inside the knob for reducing the temperature range.

  • Page 18: Tae20 Room Thermostat

    CHILLED WATER CASSETTE LECTRICITY CONTINUED TAE20 ROOM THERMOSTAT FIELDS OF APPLICATION  Regulating ambient temperature in rooms heated or cooled.  Opening and closing the valve.  Cutting in and out the electric heating.  Controlling the three speed fan. DESCRIPTION The unit comprises two parts: The case is hooked onto the fitted mounting plate, then...

  • Page 19: Air Distribution

    CHILLED WATER CASSETTE IR DISTRIBUTION install the central grille by twisting AIR DISTRIBUTION MODULE FITTING Avoid distorsions of the frame caused by excessive traction; the frame should be correctly centered in relation to the false Carefully unpack the module and fit the clips in the frame ceiling and it should especially ensure an airtight separation corners.

  • Page 20: Commissioning

    CHILLED WATER CASSETTE OMMISSIONING CHECKS BEFORE COMMISSIONING Check the connections seals and, if required, insulate the evacuation pipes to protect against frost or condensation. Ensure that the installation pipe work has been cleaned and bled of any air, before commissioning the unit. Take care ! Check that the condensate evacuation pipe is connected and provides effective condensate drainage.
  • Page 21 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO APPENDIX ANNEXE ANLAGE ALLEGATO ANEXO...
  • Page 22 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO...
  • Page 23 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO WIRING DIAGRAM SCHEMAS ELECTRIQUES STROMLAUFPLANS SCHEMA ELETRICO ESQUEMA ELECTRICO TAKE CARE! These wiring diagrams are correct at the time of publication. Manufacturing changes can lead to modifications. Always refer to the diagram supplied with the product. ATTENTION Ces schémas sont corrects au moment de la publication.
  • Page 24 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO 30 2T - 30 4T - 45 2T - 45 4T SANS VANNE...
  • Page 25 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO 30 2T AVEC CHAUFFAGE - SANS VANNE...
  • Page 26 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO 45 2T AVEC CHAUFFAGE - SANS VANNE...
  • Page 27 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO 30 2T - 30 4T - 45 2T - 45 4T AQUANET...
  • Page 28 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO 30 2T - 30 4T - 45 2T - 45 4T AVEC CHAUFFAGE - AQUANET VIII...
  • Page 29 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO 2-PIPE 4-PIPE COOLING HEATING LOW SPEED MEDIUM SPEED HIGH SPEED COILS COILS BATTERIES BATTERIES FROID CHAUD PETITE VITESSE VITESSE MOYENNE GRANDE VITESSE 2 TUBES 4 TUBES BATTERIEN BATTERIEN KÜHLUNG HEIZUNG KLEINE MITTLERE HOHE 2 ROHREN...
  • Page 30 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO + SCH 2T + L/L1 N Q3 Q2 Q1 TAE20 2T + L/L1 N Q3 Q2 Q1 TAE20 2T + L/L1 N Q3 Q2 Q1 TAE20...
  • Page 31 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO 4T + L/L1 N Q3 Q2 Q1 TAE20 2T + L/L1 N TRM-VP + SCH 2T + L/L1 N TRM-VP...
  • Page 32 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO 2T + L/L1 N TRM-VP 2T + L/L1 N TRM-VP 2T + L/L1 N TRM-VP...
  • Page 33 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO 4T + L/L1 N TRM-VP 2T + L/L1 N TRM-FA + SW 2T + L/L1 N TRM-FA XIII...
  • Page 34 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO 2T + L/L1 N TRM-FA 2T + L/L1 N TRM-FA 2T + L/L1 N TRM-FA...
  • Page 35 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO 2T + 2T + 2T + L/L1 N TRM-FA 4T + L/L1 N TRM-FA...
  • Page 36 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO...
  • Page 37 Declaramos, bajo nuestra responsabilidad, que los productos designados en este manual son conformes a las disposiciones de las directivas CEE enunuciadas a continuacion, asi como a las legislaciones nacionales que las contemplan. K 30 OG 2T - K 45 OG 2T - K 45OG 4T REF: 7SP04...
  • Page 38 As part of our ongoing product improvement programme, our products are subject to change without prior notice. Non contractual photos. Dans un souci d'amélioration constante, nos produits peuvent être modifiés sans préavis. Photos non contractuelles. In dem Bemühen um ständige Verbesserung können unsere Erzeugnisse ohne vorherige Ankündigung geändert werden. Fotos nicht vertraglich bindend. A causa della politica di continua miglioria posta in atto dal costruttore, questi prodotti sono soggetti a modifiche senza alcun obbligo di preavviso.
