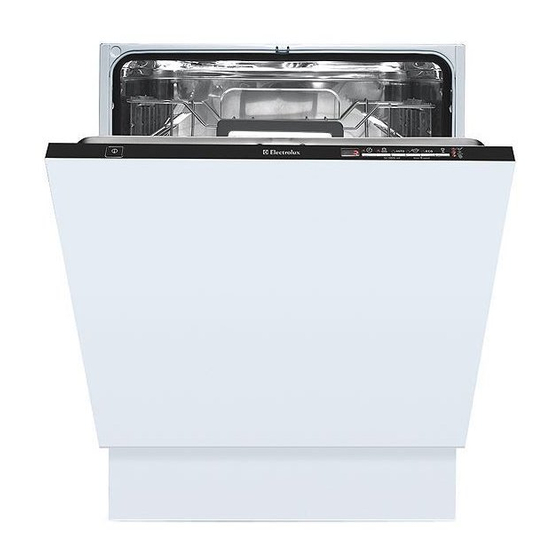

Electrolux ESL 66010 User Manual

Hide thumbs Also See for ESL 66010:

User manual (52 pages)

User manual (28 pages)

User manual (20 pages)

Table Of Contents

Summary of Contents for Electrolux ESL 66010

Page 1 ESL 66010 Downloaded from DishWasher-Manual.com Manuals...
Page 2 We were thinking of you when we made this product Downloaded from DishWasher-Manual.com Manuals...
Page 3 You’ve chosen a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You can look at some examples on the cover in this manual.
Page 4: Table Of Contents
4 electrolux contents Contents Safety information Product description Control panel First use Daily use Washing programmes Care and cleaning Something not working Technical data Hints for test institutes Installation Environment concerns Guarantee/Customer Service The following symbols are used in this manual: Important information concerning your personal safety and information on how to avoid damaging the appliance.
Page 5: Safety Information
5 Safety information Do not take any dishes out of the dishwasher before the end of the dishwashing cycle. In the interest of your safety and to After use, isolate the appliance ensure the correct use, before...
Page 6 6 electrolux safety information Child safety This appliance is designed to be operated by adults. Don’t allow For electrical and water connection children to use the dishwasher carefully follow the instructions unsupervised. given in specific paragraphs. Keep all packaging well away from children.
Page 7: Product Description
7 Product description Upper basket Water hardness dial Salt container Detergent dispenser Rinse aid dispenser Rating plate Filters Lower spray arm Upper spray arm Downloaded from DishWasher-Manual.com Manuals...
Page 8: Control Panel
Control panel On/Off button Digital display The digital display indicates: the level of hardness to which the Delay start button water softener is set, the approximate remaining time of Programme selection buttons the running programme, activation/deactivation of the rinse...
Page 9 9 Indicator lights Salt Illuminates when the special salt has run out. Rinse aid Illuminates when the rinse aid has run out. Indicates the activation/deactivation of the Multi-tab function "Multi-tab function" (see "Multi-tab function"). The salt indicator light on the...
Page 10 10 electrolux control panel Setting mode Always remember that when: setting the water softener, activating/deactivating the audible signals, activating/deactivating the rinse aid dispenser, the appliance MUST be in setting mode: Press On/Off button, ALL programme button lights are illuminated = appliance in setting mode.
Page 11 11 Audible signals Audible signals have been introduced to help indicate which operations the dishwasher is performing: - setting of the water softener - end of programme 4. To change the current setting, - intervention of an alarm due to...
Page 12: First Use
12 electrolux first use First use Set the water softener Before using your dishwasher for the first time: The dishwasher is equipped with a water softener designed to remove Ensure that the electrical and minerals and salts from the water...
Page 13 13 The water softener must be set in 3. Press button 1, the lights of both ways: manually, using the water buttons 2 and 3 turn off while the hardness dial and electronically, using light of button 1 goes on flashing.
Page 14 14 electrolux first use Filling with dishwasher salt 4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket. 5. Replace the cap tightly turning it Only use salt specifically designed for clockwise until it stops with a click.
Page 15: Filling With Rinse Aid
15 Filling with rinse aid According to the finish and drying results obtained, adjust the dose of Rinse aid ensures thorough rinsing, rinse aid by means of the 6 position and spot and streak free drying. selector (position 1 minimum dosage, Rinse aid is automatically added position 6 maximum dosage).
Page 16: Daily Use
16 electrolux daily use Daily use Check if it’s necessary to refill with - Lay small objects in the cutlery dishwasher salt or rinse aid basket. Load cutlery and dishes into the Plastic items and pans with non dishwasher. stick coatings have a tendency to Fill with dishwasher detergent .
Page 17 17 For washing in the dishwasher the following cutlery and dishes are not suitable: - Cutlery with wooden, horn, china or mother-of-pearls handles. - Plastic items that are not heat resistant. - Older cutlery with glued parts that are not temperature resistant.
Page 18 18 electrolux daily use Open the door and slide out the The two rows of prongs on the lower baskets to load the dishes. basket can be easily lowered to allow you to load pots, pans and bowls. The lower basket...
Page 19 19 The cutlery basket To make loading of the cutlery basket easier, lower the cutlery basket handle (fig.2). Long bladed knives stored in an fig. 2 upright position are a potential hazard. Long and/or sharp items of cutlery...
Page 20 20 electrolux daily use The cutlery basket is in two parts The upper basket which can be separated to give The upper basket is designed for greater loading flexibility. To separate saucers, salad bowls, cups, glasses, the two parts, slide them horizontally pots and lids.
Page 21 21 Adjusting the height of the upper basket If washing very large plates you can load them in the lower basket after moving the upper basket to the higher position. Maximum height of the dishes in the lower basket...
Page 22 22 electrolux daily use Use of detergent 20 = approximately 20 g of detergent 30 = approximately 30 g of detergent Only use detergents specifically 3. All programmes with prewash designed for use in dishwashers. need an additional detergent dose (5/10 g) that must be placed in the Please observe the manufacturer’s...
Page 23 23 Multi-tab function Activation/deactivation of the Multi- tab function This appliance is equipped with the Multi-tab function, that allows the use Simultaneously press and hold the of combi detergent tablets. two buttons positioned over the symbol Multi-tab, until the Multi-tab These products are detergents with a function indicator light illuminates.
Page 24 24 electrolux daily use Activation/deactivation of the rinse aid dispenser 1. Press the On/Off button. The If you decide to turn back to the dishwasher must be in setting use of standard detergent system mode. we advise that you: 1. Deactivate the Multi-tab function.
Page 25 25 Select and start a washing 4. The opening of the door will programme interrupt the countdown. Close the door; the countdown will continue from the point at which it was interrupted. 5. Once the delay start has elapsed...
Page 26 26 electrolux daily use Cancel a washing programme in Open the dishwasher door. progress The indicator light of the Simultaneously press and hold the programme just ended will remain two programme buttons positioned over the word Cancel, until all the 1.
Page 27: Washing Programmes
27 Washing programmes Programme Degree of Type of load Programme description soil Prewash Main wash up to 70°C Crockery, 2 intermediate rinses cutlery, pots Heavy soil Final rinse and pans Intensive Drying Prewash Main wash up to 50°C or 65°C...
Page 28: Care And Cleaning
28 electrolux care and cleaning Care and cleaning Cleaning the filters 4. Take hold of the coarse filter (A) by the handle with the hole and The filters must be checked and remove from the microfilter (B). cleaned from time to time. Dirty filters will degrade the washing result.
Page 29 29 Frost precautions Avoid placing the machine in a location where the temperature is NEVER try to remove the spray below 0°C. If this is unavoidable, arms. empty the machine, close the If residues of soil have clogged the...
Page 30: Something Not Working
30 electrolux something not working Something not working The dishwasher will not start or stops during operation. Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the indications described in the chart, without calling out an engineer.
Page 31 31 The flashing of the point-shaped optical signal on the floor beneath the dishwasher’s door will not be visible if the appliance has been installed higher up with a furniture door mounted flush. Malfunction Possible cause and solution The programme does not start The dishwasher’s door has not been...
Page 32 32 electrolux something not working The wash results are not satisfactory The dishes are not The wrong washing programme has been selected. clean The dishes are arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded.
Page 33: Technical Data
33 Technical data Dimensions Width 59.6 cm Height 81.8 - 87.8 cm Depth 55.5 cm Electrical connection Information on the electrical connection is given Voltage - Overall power - on the rating plate on the inner edge of the Fuse dishwasher’s door...
Page 34 34 electrolux technical data Consumption values Programme Programme Energy Water duration consumption consumption (in minutes) (in kWh) (in litres) Intensive 1.8 - 2.0 23 - 25 Auto 1.1 - 1.5 12 - 23 Quick 1.05 (Test programme for test institutes)
Page 35: Hints For Test Institutes
35 Hints for test institutes Testing in accordance with EN 60704 Test in accordance with EN 50242 must be carried out with appliance must be carried out when the salt fully loaded and using the test container and rinse aid dispenser programme (see "Consumption...
Page 36: Installation
36 electrolux installation Installation Fixing to the adjacent units The dishwasher must be secured against tilting. Any electrical and/or plumbing Therefore make sure that the counter work required to install this it is fixed under, is suitably secured to appliance should be carried out by...
Page 37 37 Water supply connections This dishwasher may be fed with either hot (max. 60°) or cold water. This appliance has been fitted with Nevertheless we advise you a cold safety features which will prevent the water supply. water used in the appliance from...
Page 38 38 electrolux installation Water inlet hose with safety valve After connecting the double-walled water inlet hose, the safety valve is next to the tap. Therefore the water inlet hose is only under pressure while the water is running. If the water...
Page 39 39 Water outlet hose connection The total length of the drain hose, including any extension you might The end of the drain hose can be add, must be no longer than 4 metres. connected in the following ways: The internal diameter of the extension 1.
Page 40 40 electrolux installation Electrical connection Safety standards require the appliance to be earthed. Prior to using the appliance for the first time, ensure that the rated voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed.
Page 41: Environment Concerns
41 Environment concerns Packaging material Old appliance The packaging materials are The symbol on the product or on environmentally friendly and can be its packaging indicates that this recycled. The plastic components are product may not be treated as identified by markings, e.g.
Page 42: Guarantee/Customer Service
Guarantee/Customer Service Standard guarantee conditions Costs incurred for calls to put right an appliance which is improperly We, Electrolux, undertake that if installed or calls to appliances within 12 months of the date of the outside the United Kingdom. purchase this Electrolux appliance or...
Page 43 European guarantee the appliance (found on the rating This appliance is guaranteed by plate). Electrolux, in each of the countries 5. The purchase date. listed in the following page, for the Please note a valid purchase receipt period specified in the appliance or guarantee documentation is guarantee or otherwise by law.
Page 44 44 electrolux guarantee/customer service www.electrolux.com A l b a n i a + 3 5 5 4 2 6 1 4 5 0 R r. P j e t e r B o g d a n i N r. 7 Ti r a n e...
Page 45 45 Notes ............
