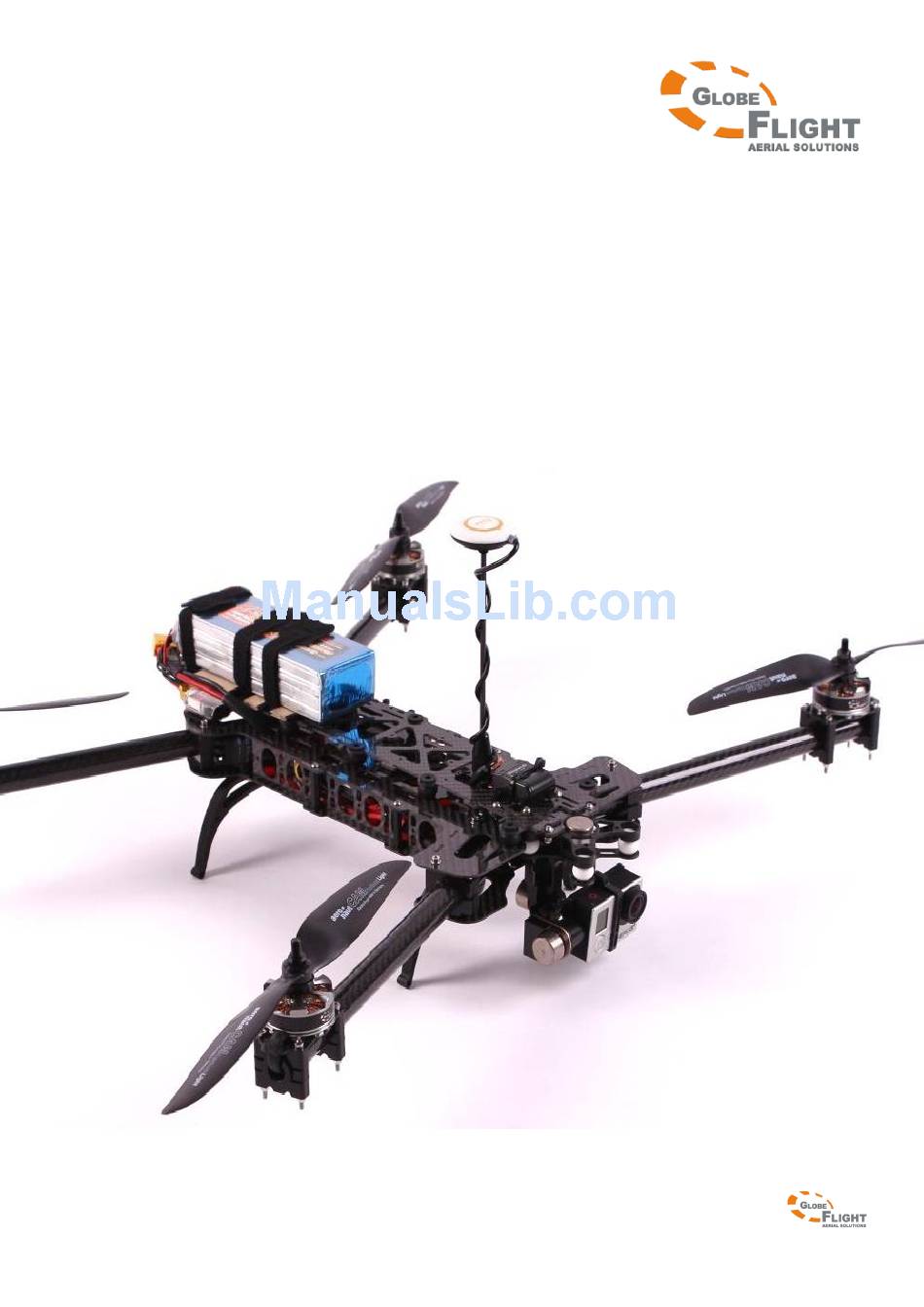

- Page 1 Assembly manual Black Snapper L PRO Assembly manual Black Snapper L Pro Status: September, 2014 Seite 1 von 16...
- Page 2 Assembly manual Black Snapper L PRO Assembly of the booms In the kit, booms with 2 different lengths are included. The shorter booms have to be mounted to the front end of the aircraft. Before mounting the motors, please make sure that the threads for the motor wires point to the center frame.
- Page 3 Assembly manual Black Snapper L PRO Push the end cap into the tube before you attach the motor. First, you have to thread the motor cables through the whole length of the boom. Then you have to bend the cables back and thread them through the holes on the side using a pair of angled tweezers.
- Page 4 Assembly manual Black Snapper L PRO Overview over the compontents which have to be installed in the main frame Seite 4 von 16...
- Page 5 Assembly manual Black Snapper L PRO Installation of the ESCs, Naza V2 PMU and Zenmuse GCU in the frame and soldering of the y-leads Please mount the ESCs and the ESC wires like shown in the picture. The cable tie holds both ESC and the wires on the mounting plate.
- Page 6 Assembly manual Black Snapper L PRO Solder the plug AFTER threading the cable Cable harness: through the center frame Power Molex (video TX) BEC plug (reserve) BEC plug (reserve) Seite 6 von 16...
- Page 7 Assembly manual Black Snapper L PRO Installation of the NAZA V2 MC and of the RC receiver in the frame Before you install the receiver and the NAZA V2, you can connect them with the cable/s to get an impression of the possible distance and where the receiver could be mounted.
- Page 8 Assembly manual Black Snapper L PRO Checking the direction of the motor rotation Attach the booms including motors but without propellers to the frame and connect the three motor cables and the ESC signal cable. The motors have to be fixed in upright position and there shouldn’t be any loose objects around them.
- Page 9 Assembly manual Black Snapper L PRO Checking the rotation direction Now you can activate the fixed motors with a click on each button from “M1” to “M4“. In case the rotation direction is different from the displayed image in the Assistant, simply swap 2 of the 3 motor cables.
- Page 10 Assembly manual Black Snapper L PRO Installation of the booms and assembly of the frame – Schematic illustration: - Please check all your components for available software updates before you proceed with the assembly. Seite 10 von 16...
- Page 11 Assembly manual Black Snapper L PRO Installation of the booms and closing the frame The boom pipe should end exactly at the edge of the inner snapping part. When you adjust the vertical alignment of the motor axis, please turn the boom first until the cable holes are facing the ESCs.
- Page 12 Assembly manual Black Snapper L PRO It is recommended to protect the GPS cable part which is threaded through the plate from damage with a piece of heat shrink tube. The final position of the gimbal mount and of the battery plate extension can only be adjusted when the aircraft is fully assembled, so you only need to tighten the screws slightly at this point.
- Page 13 Assembly manual Black Snapper L PRO When the frame is closed, the CoG of the copter needs to be adjusted by moving the battery, battery extension plate and the gimbal mount. Tighten all screws when you are finished. From the mechanical point of view, the aircraft is now ready for the maiden flight.
- Page 14 GPS holder foldable aluminum/carbon fiber 0959 Lipo saver with votage display and alarm sound 1676 Black Snapper L PRO - DJI Zenmuse H3 3D mounting adaptor carbon fiber 1218 Black Snapper – Battery plate extension for lightweight batteries 1123 GoPro Hero3 or Hero4...
- Page 15 Assembly manual Black Snapper L PRO Recommended tools Hot air gun or Micro Blazer / needle-nosed pliers / scissors / slot screwdriver 2mm / hex wrench 1,5; 2; 2,5mm / hex screwdriver 2mm / socket wrench 5,5mm / flat spanner 5,5mm & 10mm / soldering station with various tips / tweezers angled, flat &...
- Page 16 Assembly manual Black Snapper L PRO Example gain value settings for our recommended setup Seite 16 von 16...
