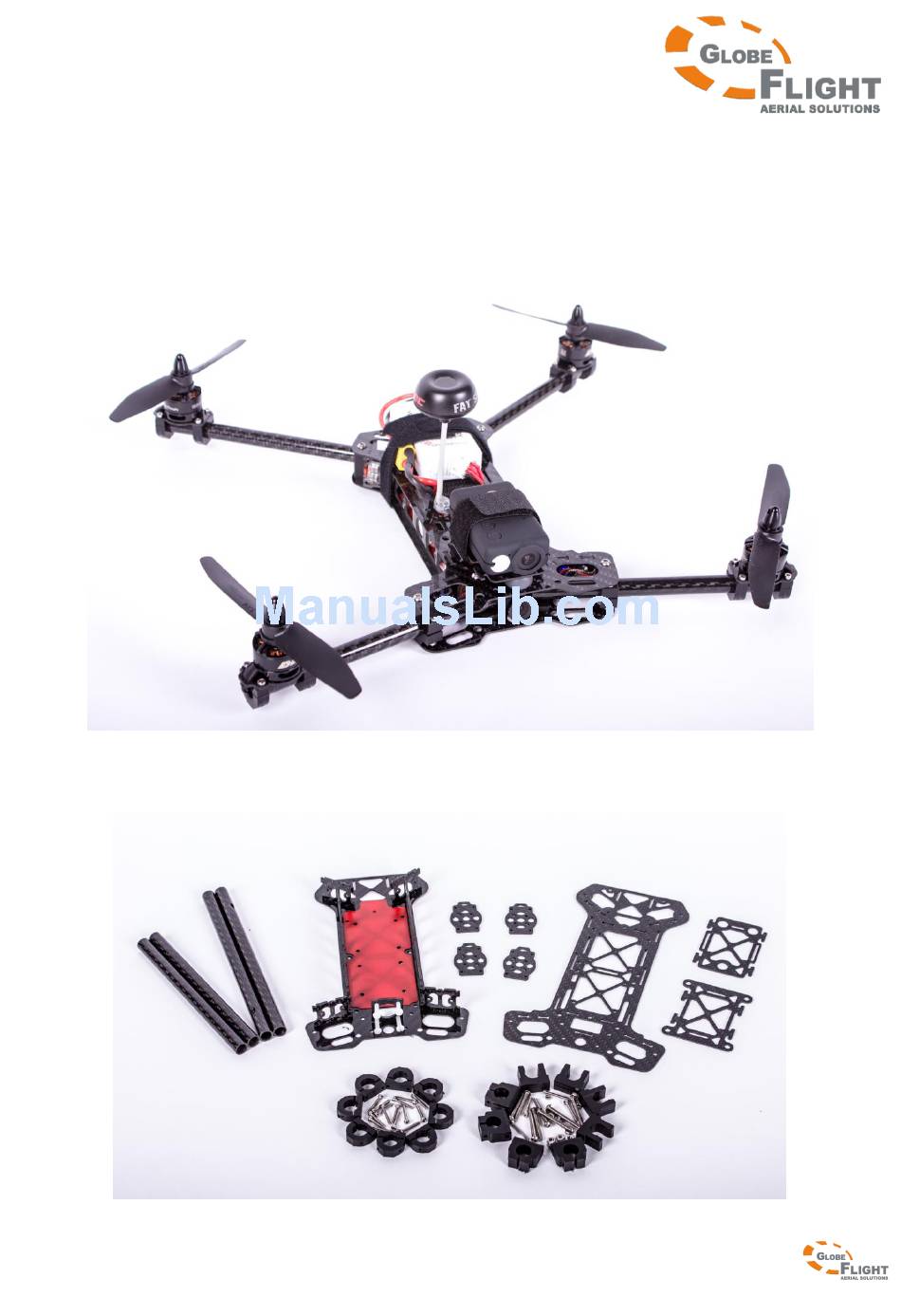

- Page 1 Assembly manual for Black Snapper XS Assembly manual Black Snapper XS In the box: Seite 1 von 5...
- Page 2 Assembly manual for Black Snapper XS We recommend that you test-fit all components first, the long booms should be mounted to the rear end and the short booms to the front end. Doing so, you can measure the approximately required cable length und cut them.
- Page 3 Assembly manual for Black Snapper XS Soldering of the cable harness You can either use a circuit board or solder a cable harness for power distribution. In this case, we chose the soldering option to save space and weight. Please also solder e.g. a BEC for the Naze 32 and the power supply for the video transmitter.
- Page 4 Assembly manual for Black Snapper XS Closing the frame and adjusting the motors Please make sure that all side wall parts fit neatly into the prepared slots bevor you tighten the srews and that the long booms are mounted to the rear frame end. When you successfully closed the main frame, please adjust the alignment of the motors and tighten the screws which secure the booms from accidental twisting.
- Page 5 From the mechanical perspective, your Black Snapper XS is now ready to fly! We wish you a lot of fun during the build and of course later in the air with your Black Snapper XS! Seite 5 von 5...
