BUTTON
DIRECT FUNCTION
(DEFAULT SETTING)
Fn BUTTON
CALL EXTENSION 2 - This function
allows to directly call the telephone
connected to extension 5 of the
switchboard (default setting: 42).
CALL EXTENSION 10 - This
function allows to directly call the
telephone connected to extension 5
of the switchboard
(default setting: 50).
CALL EXTENSION 3 - This function
allows to directly call the telephone
connected to extension 5 of the
switchboard (default setting: 43).
CALL EXTENSION 11 - This
function allows to directly call the
telephone connected to extension 5
of the switchboard
(default setting: 51).
CALL EXTENSION 4 - This function
allows to directly call the telephone
connected to extension 5 of the
switchboard (default setting: 44).
CALL EXTENSION 12 - This
function allows to directly call the
telephone connected to extension 5
of the switchboard
(default setting: 52).
The SECOND and THIRD function buttons are not confi gurable and are specifi c for Agorà 6
switchboard functions.
1.8 LEDS
The optical indications output by the LEDs associated to the CUSTOMISABLE BUTTONS identify the status
of a telephone line or extension (providing that the customisable button is associated to a dial line or
extension).
LED INDICATION
MEANING
OFF
DIAL LINE FREE
ON
BUSY LINE
ON FOR FOUR SECONDS
FUNCTION CONFIRM
ON AND OFF BRIEFLY
PARKED LINE
SLOW BLINKING
LINE STANDING BY
FAST BLINKING
CALL RECEPTION LINE
12
SECOND FUNCTION
THIRD FUNCTION
BUTTON + Fn BUTTON
MISSED CALLS - This function is used to
-
display the missed (unanswered) calls.
-
CAPTURE CALL - This operation is used
to divert a call after it has been established
with an answering machine or fax machine
to your extension.
-
BOOK - This function is used to make a
call when either the called extension or
dial line is busy.
DOOR OPENER - This function is used to
-
open the second door.
ALARM - This function is used to operate
QUERY ALARM - This
the telephone ringer at a certain time.
function is used to check
the programmed time.
-
ALTERNATE DIAL LINE - You can also
switch between conversations, i.e. speak
with one caller and kept the other caller
on-hold.
2. INSTALLATION
BUTTON +
The telephone may be installed on a table top or on the wall.
Fn BUTTON

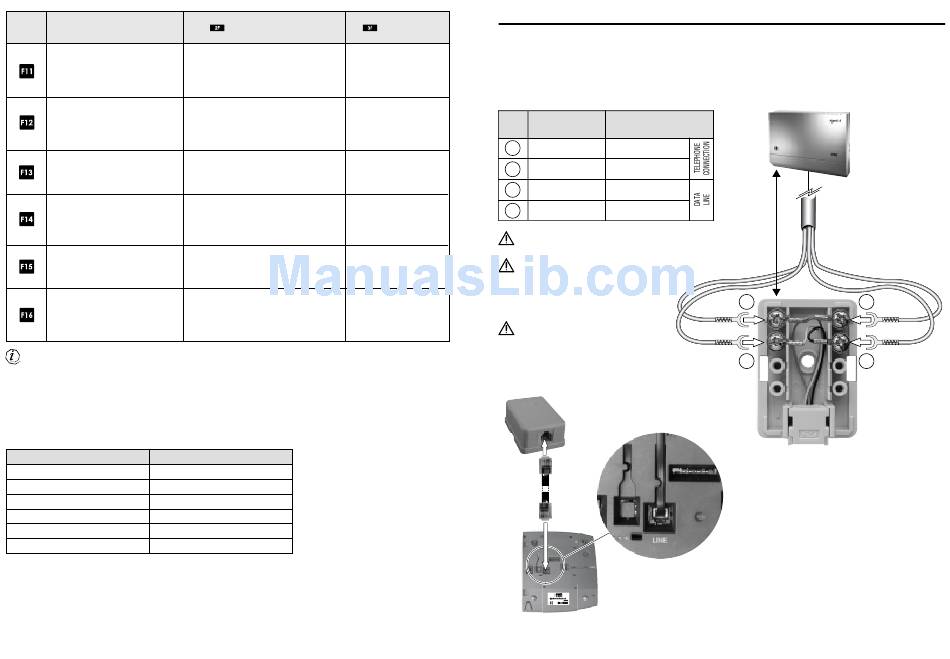

2.1 TABLE-TOP CONFIGURATION
After identifying the surface where to install the telephone, fasten the telephone socket considering the length
of the line cord supplied. Fasten the socket and connect to the switchboard.
ITEM
SOCKET
TERMINALS
GREEN WIRE
1
RED WIRE
2
BLACK WIRE
3
YELLOW WIRE
4
Disconnect switchboard power
before connecting.
Connection of other downstream devices
(e.g. modems) is not recommended
because correct operation of the
telephone cannot be ensured in
this case.
When replacing Urmet Domus Team
and Euro telephones, reverse the
SE+ and SE- signals in sockets of
the existing system.
LINE
CORD
DS4091-002
DS4091-002
SWITCHBOARD
TERMINAL
TEL. EXTENSION
TEL. EXTENSION
SE -
SE +
Maximum
distance:
250 metres
1
4
Plug one end of the line cord into the
telephone socket and the other end into
the telephone LINE socket.
Carefully arrange the line code
in the groove on the bottom of
the telephone.
SWITCHBOARD
2
3
TELEPHONE
SOCKET
(internal view)
13
