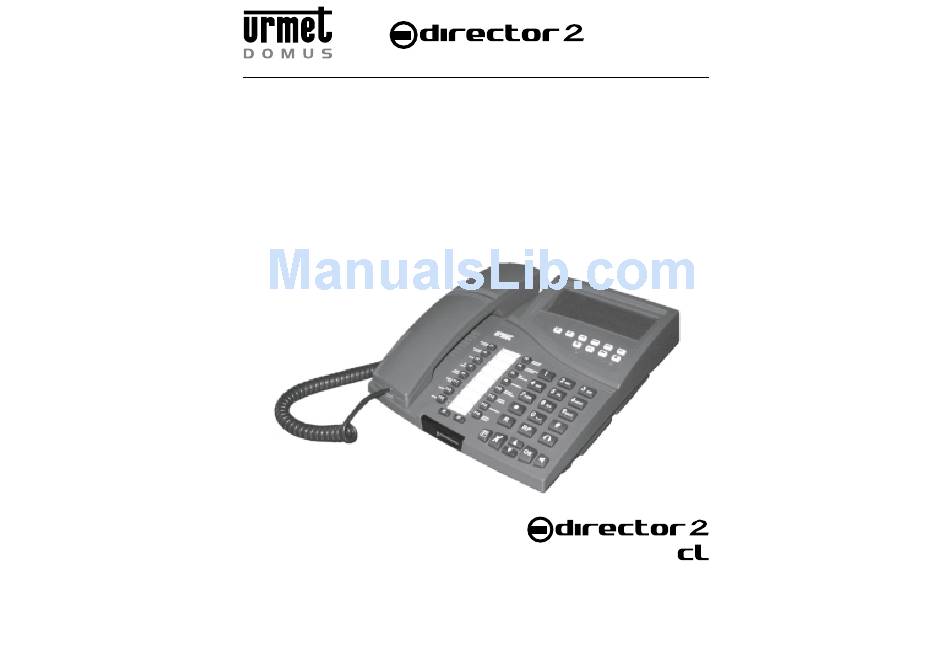

- Page 1 Mod. 4091 DS 4091-002 LBT 8142 DEDICATED MULTIFUNCTIONAL TELEPHONE Ref. 4091/14 INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
DECLARATION OF CONFORMITY 1.1 Elements .............6 5.1 Incoming call from external line ......32 The manufacturer, Urmet Domus S.p.A. whose legal offi ces are in via Bologna 188/C - 10154 Torino (TO), 1.2 Display ..............8 5.2 Divert and call back...........32 1.3 Switchboard services and special 5.3 Internal call............32... - Page 3 NUMBER OR BUTTON Timed divert 2F + F1 + extension Director 2 CL is a multifunctional analogue telephone designed for use with Agorà Urmet Domus PABXs and Query timed divert 3F + F1 is optimised for working with 1362/624 switchboards.
-
Page 4: Elements
1.1 ELEMENTS The Director 2 CL telephone consists of the following elements: 4091/14 SPACER DESCRIPTION DESCRIPTION HANDSET SUPPORT NUMBER CARD TELEPHONE HANDSET GRIP SOCKET SWITCHBOARD SERVICES AND HANDFREE SPEAKER SPECIAL FUNCTIONS BUTTONS PROGRAMMABLE BUTTONS DIAL PAD CUSTOMISABLE BUTTON LEDS CALL MANAGEMENT BUTTONS DESCRIPTION HANDSET HOOK MENU NAVIGATION BUTTONS... -
Page 5: Switchboard Services And Special Functions Buttons
1.2 DISPLAY 1.3 SWITCHBOARD SERVICES AND SPECIAL FUNCTIONS BUTTONS The telephone is provided with an LCD split into two parts: Located under the telephone display, these buttons are used to rapidly access some switchboard services or special telephone functions. two lines, 20 characters per line (for all alphanumeric messages) 16 pictograms (switchboard function and... -
Page 6: Call Management Buttons
1.4 TELEPHONE DIAL PAD 1.7 PROGRAMMABLE BUTTONS AND SECOND AND THIRD FUNCTION BUTTONS The dial pad may be used as a normal telephone The PROGRAMMABLE BUTTONS are confi gured with default settings for using the 1362/624 PABX Button > character correspondence table dial pad and to enter letters and numbers in the switchboard and allow to pick-up the fi... -
Page 7: Leds
5 with one caller and kept the other caller of the switchboard on-hold. When replacing Urmet Domus Team (default setting: 52). and Euro telephones, reverse the SE+ and SE- signals in sockets of The SECOND and THIRD function buttons are not confi gurable and are specifi c for Agorà 6 the existing system. -
Page 8: Wall-Mounted Confi Guration
Fit the spacer on the telephone base underneath the line cord in the specifi c grooves. 2.2 WALL-MOUNTED CONFIGURATION The telephone can be installed on the wall using Install the spacer on the base of the telephone two 5mm bolts (included) at the specifi c slots on as shown in the following fi... -
Page 9: Headset Connection
Plug the headset into the handset socket and keep the handset on hook in position if this confi guration is • Agorà 6 - (PABX 1362/624) - default setting required. Refer to Urmet Domus sales or click on www.urmetdomus.it for more information. • Agorà 1/5, 2/8 and 3/12 (PABX 1332/5xx) •... -
Page 10: User Menu
2.4.5 LANGUAGE 3. USER MENU The following procedure describes how to change the language. To access the USER MENU, press and press OK to access the function. The same navigation methods are used to access a submenu. Press to quit the submenu or main menu. DESCRIPTION OF THE OPERATION BUTTON DISPLAY... -
Page 11: Telephone Settings
3.1 TELEPHONE SETTINGS 3.1.2 HANDSET VOLUME The procedure for adjusting the handset volume is described below. The default value is 03. The volume may be set to 5 levels, where 01 is the minimum value and 05 the maximum value. 3.1.1 PASSWORD The following procedure describes how to change the password (4 digits). -
Page 12: Ringer Melody
3.1.4 RINGER VOLUME 3.1.6 DISPLAY CONTRAST The procedure for adjusting the ringer volume is described below. The default value is 04. The volume may The procedure for adjusting the display contrast is described below. The default value is 03. The contrast be set to 5 levels, where 01 is the minimum value and 05 the maximum value. -
Page 13: Keys Setting Procedure
3.2 KEYS SETTING PROCEDURE 3.2.3 EXTENSION ASSOCIATION This function allows to associate any programmable button to call/divert and monitor an extension of the This procedure is used to directly program the programmable buttons (F1 ÷ F16) on the left of the system. -
Page 14: Restore Parameters Call List
• Use 3.4 PHONE BOOK to explore the call list. • Press OK to call the displayed number or engage the line. Press button to go back to the previous Up to 250 names and numbers may be stored in the phone book. menu. -
Page 15: Using The Telephone
4. USING THE TELEPHONE 4.2 MAKING CALLS NORMAL MODE The Director 2 CL telephone can be used in three different ways: • Engage the line and wait for the dial tone. • With handset. • Dial the extension number, the dial line access number followed by the number to be called or the service •... -
Page 16: Speed Dialling The Fi Rst 20 Numbers In The Phone Book
4.5.2 SPEED DIALLING THE FIRST 20 NUMBERS IN THE PHONE BOOK 4.8 MESSAGES ON DISPLAY The fi rst twenty numbers stored in the phone book may be speed dialled simply by pressing two buttons. If 0 is not included in the directory to select the dial line, select the dial line by pressing the keypad or using With the telephone off a programmed button (default F1, F3 or F5 for 81, 82 or 83). -
Page 17: Kts Functions
5. KTS FUNCTIONS 6. TELEPHONE NETWORKS ON EXTERNAL LINES Director 2 CL telephones may be enabled to work either in standard or KTS mode: the two mode differ by the 6.1 CALL ON EXTERNAL LINE way calls from external lines are answered. In standard mode, simply pick up the handset to answer a call. In KTS mode, you will hear the dial tone when the handset is picked up. -
Page 18: Putting An External Call On-Hold To Make Another External Call
To put an external conversation on-hold and answer a second external incoming call: To pick up a parked call from any extension: • Press R and wait for the dial tone. The external user will hear the on-hold music and announcement. •... -
Page 19: External Divert To Private Line
• Press the To switch the function off: button to end after you hear the Service not active message confi rming that the service is not • Press 3F followed by F4. active. • Press the button to end after you hear the “Service not active” message confi rming that the service is To check the function: not active and press the button to end. -
Page 20: Telephone Networks On Internal Lines
7. TELEPHONE NETWORKS ON INTERNAL LINES Press 2F and press F16 to switch from one conversation to another. Press R twice to shut down the active conversation and pick up the call on hold. Hang up while the external call is in progress to end the external communication. The internal user on-hold 7.1 INTERNAL CALL will hear the call confi... -
Page 21: Divert Call To Other Extension Now
7.8 DIVERT CALL TO OTHER EXTENSION NOW 8. OTHER FUNCTIONS This function is used to immediately divert all routed to your extension to another extension. A “divert” tone 8.1 FOLLOW-UP will be heard when the function is active when you pick up the handset. The telephone can be used to make calls in any case. -
Page 22: Alarm
8.4 EXTERNAL AMPLIFIER ACCESS 9. DOOR PHONE FUNCTIONS To access an amplifi er system: The available door phone functions are described in this chapter. • Press the button and pick up the handset. • Wait for the confi rmation followed by a triple tone and speak. The sound signal from your telephone will be made available to terminals COM and AMR. -
Page 23: Opening An Outside Door
Simply connect the two central wires of the connection plug/plug wire for this type of operation. DS 4091-002 LBT 8142 FILIALI STABILIMENTO 20151 MILANO - V.Gallarate 218 URMET DOMUS S.p.A. Tel. 02.380.111.75 - Fax 02.380.111.80 10154 TORINO (ITALY) 00043 CIAMPINO (ROMA) V.L. Einaudi 17/19A VIA BOLOGNA 188/C Tel. 06.791.07.30 - Fax 06.791.48.97 Telef.
