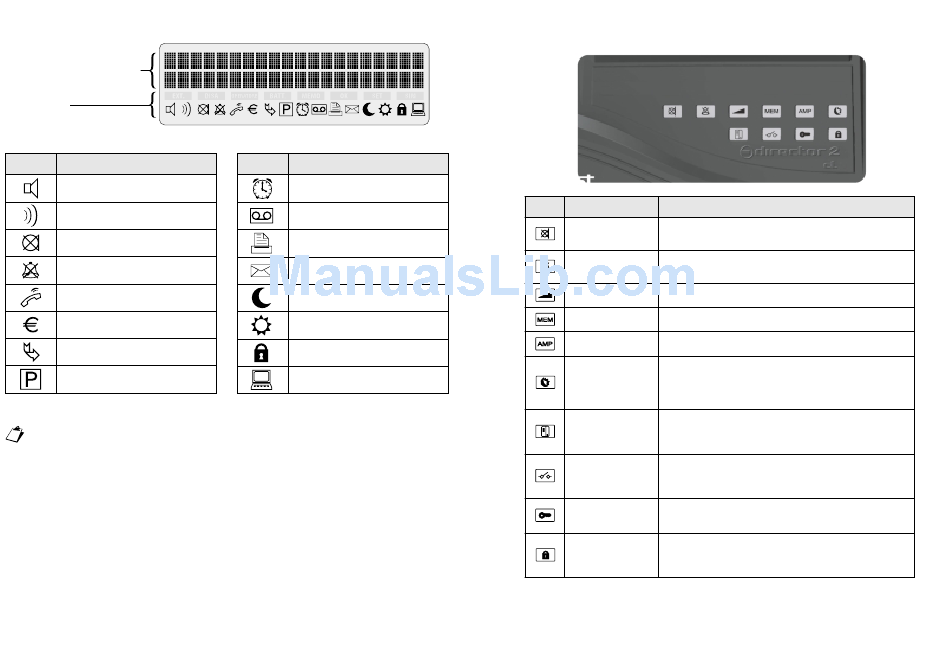

1.2 DISPLAY
The telephone is provided with an LCD split into two parts:
two lines, 20 characters per line
(for all alphanumeric messages)
16 pictograms
(switchboard function and
operative status display)
The indications associated to the pictograms are listed for the sake of convenience below:
SYMBOL DESCRIPTION
Handfree function
Paging function
Microphone off
Ringer off
Unanswered calls
Charging service
Call divert
Parking service
Refer to the specifi c paragraphs for a detailed description of the various functions.
In stand-by mode, the data and time are shown on the fi rst line of the display only if the telephone is
connected to an Agorà 6 or Agorà 2 switchboard (1372 Mod. 2). The wording "
will appear in other cases.
8
SYMBOL DESCRIPTION
Alarm service
Voice mail messages
Fax reception
NOT USED
Night service
Day service
Locked telephone
Connection to PC
URMET Director CL
DS4091-002

1.3 SWITCHBOARD SERVICES AND SPECIAL FUNCTIONS BUTTONS

Located under the telephone display, these buttons are used to rapidly access some switchboard services
or special telephone functions.
BUTTON FUNCTION
MICROPHONE
OFF
RINGER
OFF
VOLUME
ADJUSTMENT
ACCESS
TO PHONE BOOK
EXTERNAL
AMPLIFIER (*)
DAY/NIGHT
(*)
DOOR PHONE
SERVICE
DOOR PANEL
" CONNECTION (*)
DOOR PHONE
SERVICE ACTUATOR
(RELAY)
CONTROL (*)
DOOR PHONE
SERVICE
OPEN DOOR (*)
TELEPHONE LOCK
(*): Function supplied by the switchboard. Refer to the switchboard manual for available functions and
detailed descriptions.
DS4091-002
DESCRIPTION OF THE FUNCTION
Press the button to switch the handset and handfree
microphone off. The corresponding pictogram will appear on the
display when the function is on.
Press the button to switch the telephone ringer off.
The corresponding pictogram will appear on the display when
the function is on.
Press this button to adjust the handset and handfree volume.
Press the UP and DOWN navigation buttons to adjust the volume.
Press the button to access the phone book
menu SEARCH function.
Press this button to access a possible external amplifier system.
Press this button to manually switch the switchboard night
configuration on (changing the incoming call management according
to time). The current configuration appears on the display
(SUN pictogram for day configuration and MOON pictogram for
night configuration).
Press this button to establish a connection to the door panel.
Press this button to control a relay such as, for example,
the staircase lights.
Press this button to open an electrical door lock.
Press this button and enter the corresponding password to lock
the telephone. The telephone will not receive calls.
The corresponding pictogram will appear on the display when
the function is on.
