Sterling Power USA Pro Charge Ultra Instruction Manual

Sterling Power USA Pro Charge Ultra Instruction Manual

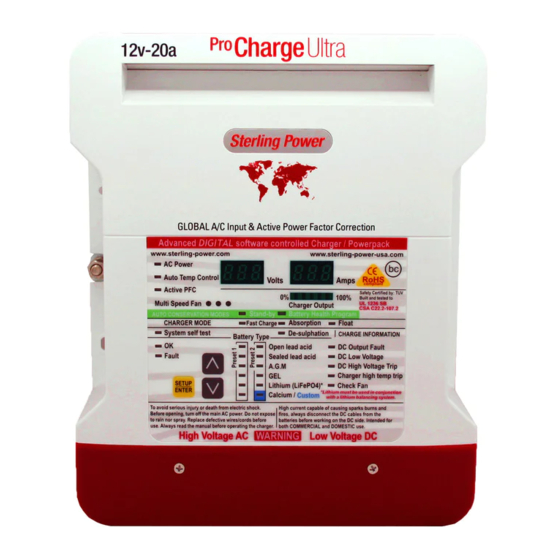

40a / 12v battery charger 3 outputs
Table of Contents

Advertisement

Available languages

Available languages

WARNING
HIGH VOLTAGE
This product requires a knowledge of both AC and DC
electrical installation. Please do not install this product unless
you are qualified to do so. All effort is made to make the
instructions as safe as possible but it is not possible to cover
all electrical safety and installation aspects. Sterling can only
assume a certain basic knowledge is held by the installer.
Only to be installed by qualified personnel.
DANGER
HIGH VOLTAGE
TO AVOID SERIOUS INJURY OR DEATH FROM ELECTRICAL
SHOCK. BEFORE PERFORMING ANY ELECTRICAL WORK
ENSURE YOU TURN OFF AND REMOVE ANY AC POWER
AND CHECK VOLTAGES TO MAKE SURE THE CIRCUIT IS OFF.
DANGER
EXPLOSION HAZARD
TO AVOID SERIOUS INJURY OR DEATH MAKE CONNECTIONS
IN A WELL VENTILATED ATMOSPHERE FREE FROM
EXPLOSIVE FUMES. IT IS ADVISABLE TO WEAR SAFETY
GOGGLES WHEN WORKING NEAR BATTERIES.
DANGER
LOW VOLTAGE
TO AVOID SERIOUS INJURY OR DEATH FROM ELECTRICAL
BURNS & SPARKS ENSURE YOU DISCONNECT ANY DC
POWER AND CHECK VOLTAGES TO MAKE SURE THE CIRCUIT
IS OFF BEFORE PERFORMING ANY ELECTRICAL WORK.
CAUTION
HIGH TEMPERATURE
HOT SURFACES - TO REDUCE RISK OF BURNS DO NOT
TOUCH THE UNIT WHEN IN SERVICE.
ONLY CHARGE THE CHEMISTRY PROFILES WHICH ARE
COVERED BY THE PRESET VALUES OF THE UNIT.
IF CUSTOM SET, VALUES MUST ADHERE TO THAT OF THE
BATTERY MANUFACTURE. GETTING THE VALUES WRONG
COULD LEAD TO GASSING AND EXPLOSION OF BATTERIES.
ONLY USE THIS CHARGER WITH LITHIUM- LiFePO
IN CONJUNCTION WITH A Battery Management System FOR
FAILURE TO FIT A B.M.S. COULD RESULT IN A FIRE.
12V / 60A model, all other units pro rata.
Input voltage range
Power Factor at 230V
Efficiency
Full load current (110/230V)
Total Harmonic Distortion
Total Harmonic Distortion
Ripple noise (R.M.S.)
Ground leakage
Generator/ mains power (watts)
12V 20A approx 350W
12V 30A approx 500W
12V 40A approx 600W
12V 50A approx 750W
12V 60A approx 900W
24V 20A approx 600W
24V 30A approx 900W
36V 20A approx 900W (NOT UL / CEC LISTED)
48V 15A approx 900W (NOT UL / CEC LISTED)
voltmeter accuracy
+/- 1%
Ammeter accuracy
+/- 1%
BATTERIES
4
80-270V 40-70 Hz
0.976
90.4%
9.8/4.6A
2.4% voltage
2.4% current
14mV
0.5 mA
Pro Charge Ultra Instruction Manual
To Standards:
UL 1236 SB
CSA C22.2-107.2
Tested to CE standards
EN61000-3-2 EN61000-3-3
EN55014-1
EN 55014-2
EN60335-2-29
CEC listed
GLOBAL AC Input & Active Power Factor Correction
Progressive DIGITAL software control Charger / Powerpack
www.sterling-power.com
AC Power
Auto Temp Control
Active PFC
Multi Speed Fan
AUTO CONSERVATION MODES
CHARGER MODE
System self test
OK
Fault
SETUP
RoHS
ENTER
compliant
High Voltage AC
For Multi battery type and
voltages Complementary
addition:
Battery Chemistry Module (BCM).
Allows for multiple chemistry
charging simultaneously from
one charger (different battery
types). Also allows for 24V
charging from 12V charger.
Read page 5.
PCU Top Functions:
1) 11 preprogrammed battery curves including LiFePO
2) 1 custom set, can be set from charger, no need for computer.
3) 2 x digital meters for current and voltage measurement.
4) 1 x power meter to show what reserve power left on the unit.
5) Active PFC, up to 0.99 pf, ensuring efficient power conversion
6) Synchronized rectification output as opposed to diode output (+10% efficiency)
7) High voltage de-sulphation cycle.
8) New, low activity, standby mode to increase battery life.
9) Battery health program.
10) Multiple speed fan control to reduce unnecessary fan noise.
11) Primary (processor digitally controlled) and an emergency backup.
12) 32 LED information panel.
13) Internal scan and systems check.
14) Remote control.
15) Small footprint and light weight.
16) Include battery temperature sensor.
17) USA CEC listed (default setting is on, CEC can be turned off). CEC
regulation stipulates that the charger is only on when necessary. This
reduces AC power consumption and lowers operational costs, while
maintaining healthy batteries.
18) % power reduction to allow unit to work with restricted input power.
19) Conforms to A.B.Y.C. drip test. Waterproof when water is dropped directly on
to the top of the unit ( +/ - 17 degrees ) if installed correctly (vertically).
20) The printed circuit boards are conformal coated for high humidity operations.
Pro
Charge U
LTRA
Sterling Power
CEC
www.sterling-power-usa.com
approved
Volts
Amps
Safety Certified by: TUV
100%
0%
Built and tested to
1 2 3
Charger Output
UL 1236 SB
Stand-by
Battery Health Program
CSA C22.2-107.2
Fast Charge
Absorption
Float
De-sulphation
CHARGE INFORMATION
Battery Type
Open lead acid
DC Output Fault
Sealed lead acid
DC Low Voltage
A.G.M
DC High Voltage Trip
High Charger temp trip
GEL
Lithium (LiFePO
)*
Check Fan
4
Calcium /
Custom
*Lithium must be used in conjunction
with a lithium balancing system.
WARNING
Low Voltage DC
EN ISO 13297
Small Craft Directive
.
4
CEC listed
RoHS
compliant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro Charge Ultra and is the answer not in the manual?

Questions and answers

s r pool
May 17, 2025

dose the 20amp pro charge ultra use power when turned off

s r pool
May 6, 2025

how to turn on and off on front pannel

Subscribe to Our Youtube Channel

Summary of Contents for Sterling Power USA Pro Charge Ultra

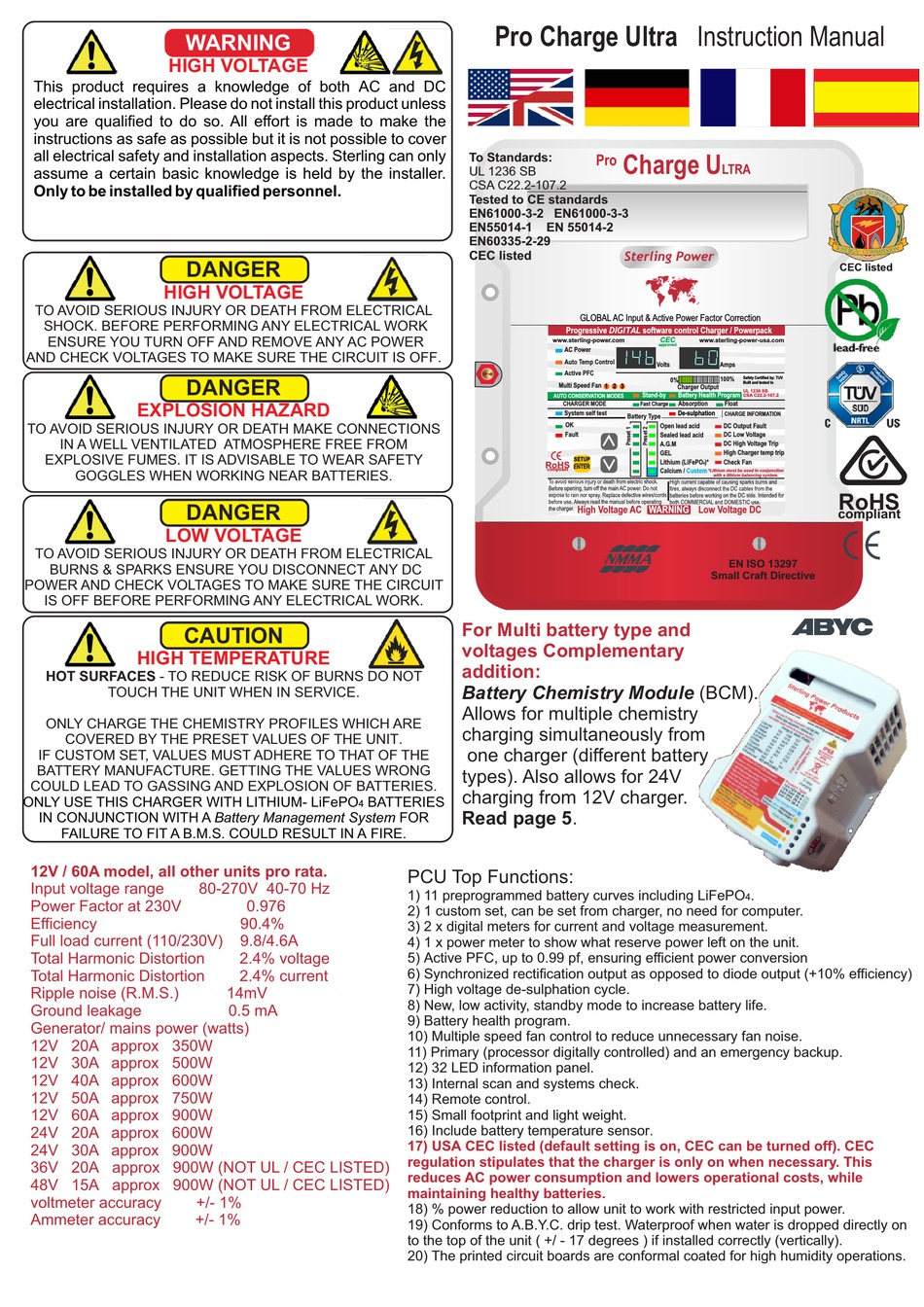

  • Page 1 Pro Charge Ultra Instruction Manual WARNING HIGH VOLTAGE This product requires a knowledge of both AC and DC electrical installation. Please do not install this product unless you are qualified to do so. All effort is made to make the instructions as safe as possible but it is not possible to cover all electrical safety and installation aspects.
