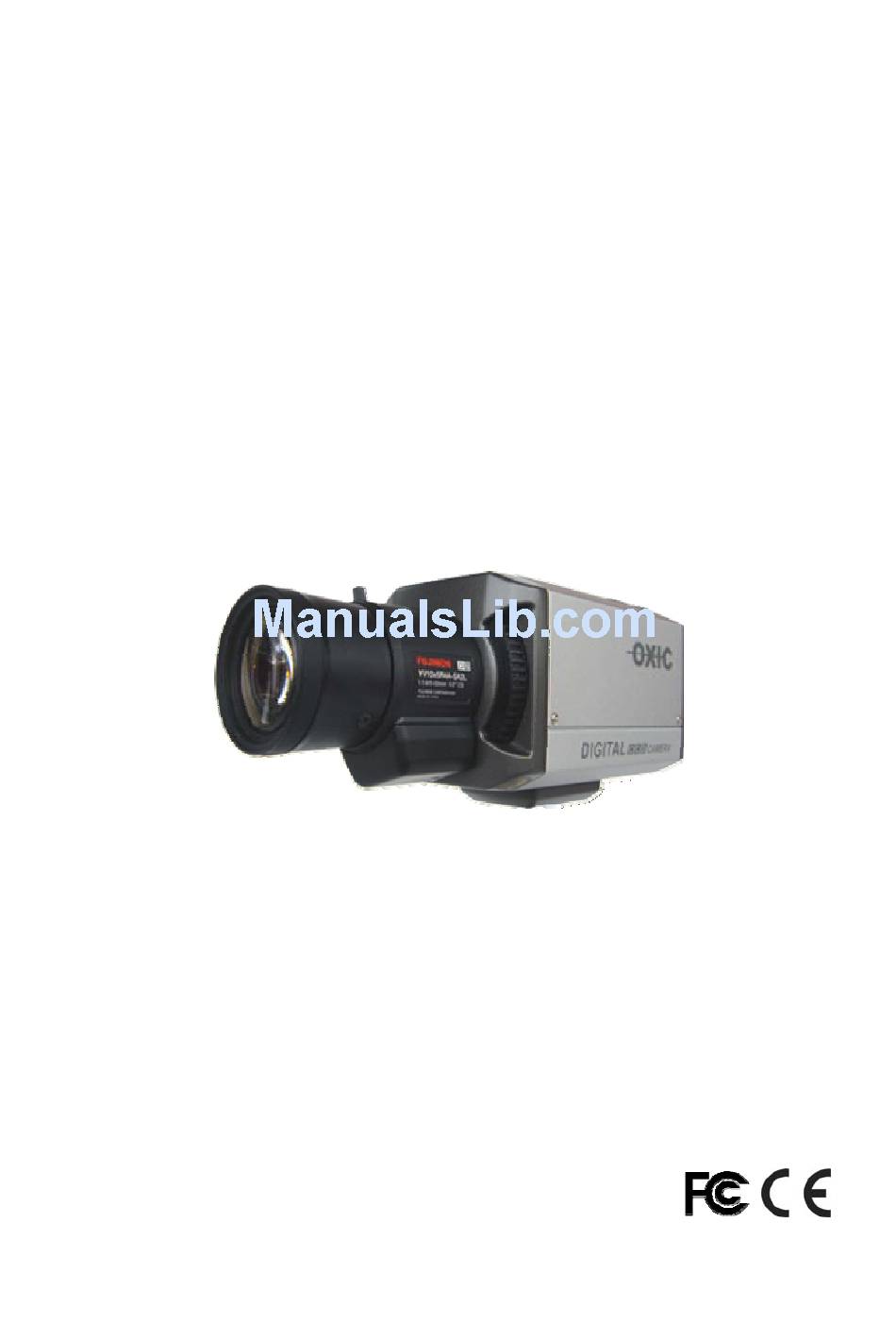

- Page 1 WDR Day/Night 650 TVL Backfocus Camera Version 2010-A Oringinal English user Manual. Keep for future use...
- Page 2 Introduction Dear Customer, Thank you for purchasing this product. This product meets the requirements of the applicable European and national guidelines. The corresponding declarations and documents can be obtained from the manufacturer. To maintain this condition and to ensure risk-free operation, you as the user must observe these operation instructions! Before initial start-up, read through the complete operating instructions observing operating and safety instructions.
-
Page 3: Important Safety Instructions
Important safety instructions The warranty will expire for damage due to non-compliance with these operating instructions. We shall not be liable for any consequential loss! We do not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions. In such cases the warranty will expire. - Page 4 • Use only accessories which are specified by the manufacturer. Please do not connect incompatible parts to the device. • Please pay attention to the safety instructions and user manuals of the other connected devices. • Check the device for damages before installation. If this should be the case please do not use it.
-
Page 5: Table Of Contents
Table of contents Intended use......................06 Explanation of symbols...................06 Scope of delivery .....................07 Features and functions ...................07 Description of device ....................07 5.1 Overview – article numbers ................07 5.2 Unpacking ......................07 Mounting........................08 6.1 Power supply....................08 6.2 Lens mounting....................08 6.3 Mounting of the video cable................09 6.4 Mounting of the camera..................09 Rear view ........................10 OSD...........................11... -
Page 6: Intended Use
1. Intended use The WDR Day/Night 540 TVL Standard Camera is equipped with a high quality image sensor. It is used for video surveillance in internal areas in connection with a recorder or monitor. You can find a detailed description of functions in section “4. Features and functions”. The product should not become damp or wet. -
Page 7: Scope Of Delivery
3. Scope of delivery • WDR Day/Night 650 TVL Standard Camera • C-Mount lens adapter ring • Mounting bracket and screws for camera bracket • User manual 4. Features and functions • Sony Effio-Pro newest DSP • Backlight compensation with high dynamic range (WDR) •... -
Page 8: Mounting
6. Mounting 6.1 Power supply Before you start with the installation please make sure that the main voltage and the nominal voltage of the camera comply together. MONITOR MONITOR POWER POWER VIDEO VIDEO 110-240VAC 12VDC/24VAC DUAL POWER AC TYPE DUAL POWER is run by a 12VDC/24VAC power supply. The polarity can be ignored. -
Page 9: Mounting Of The Video Cable
For lenses with DC-drive the connector for the lens cable is on the right side of the camera. The lens type is identified automatically by the camera. A lens with DC-drive is recommended for an optimal image quality. Back-Focus adjustment: 6.3 Mounting of the video cable To connect the video signal of the camera with a monitor or recorder, use a coaxial cable of the type RG59 with BNC-Connector (male) at the “VIDEO”... -
Page 10: Rear View
7. Rear view MONITOR MONITOR POWER POWER VIDEO VIDEO 110-240VAC 12VDC/24VAC 12VDC Version 110~240VAC Version (1) OSD menu buttons (2) Relay output (triggered by motion, max. 60VDC/400mA) (3) Power Supply (12VDC/24VAC or 110~240VAC) (4) Status LED (active if power is connected) (5) BNC Video output (MONITOR) (6) BNC Video output (VIDEO) (7) Auto iris DC lens driver connector... -
Page 11: Osd
8. OSD 8.1 Setup the camera by QIS Call out the OSD function and select into QIS item. Follow QIS guidance step by step until it is finished The menu „Quick Install“ has the following steps: A description of the different steps you can find in following table below. To move to the next step inside “Quick Install”... - Page 12 DNR Mode: 2D DNR / 3D DNR /2D+3D DNR 2D+3D Setting You can select the Digital Noise Reduce Mode- 2D DNR : 2D DNR is for still object to keep the resolution and low light noise 3D DNR : More details in darker image areas High dynamic range Useful for high contrast indoor scenarios Focus...
- Page 13 W.B: AWB: in this mode the white balance range is unlimited ATW: in this mode the tracking white balance is within 1800-10500K PTL: in this mode color temp. is locked Enhance: AGC: The camera can adjust the AGC up to 62.8 dB Gamma: The camera has 6 gamma curve to be selected Aperture : This is for sharpness adjustment Slow shutter: Max.
-
Page 14: Servicing And Cleaning
9. Servicing and cleaning 9.1 Function test Check the technical safety of the product such as damage to the housing at regular intervals. When it can be assumed that the safe operation is no longer possible, the product must be put out of service and precautions taken o ensure that it is not used unintentionally. -
Page 15: Technical Data
11. Technical data Article no. XCAA201A XCAA201B XCAA201A XCAA201B Image sensor 1/3” Interline Transfer SuperHAD II dual scan CCD Signal system NTSC Picture element 976 (H) x 582 (V) 976 (H) x 494 (V) Horizontal resolution 650 TVL Synchronization Internal Scanning 2:1 Interlace Min. - Page 16 64.55mm 109.13mm 64.3mm 72.05mm POWER VIDEO 12VDC/24VAC 118.6mm...
