Page 1: Hdmi Extender

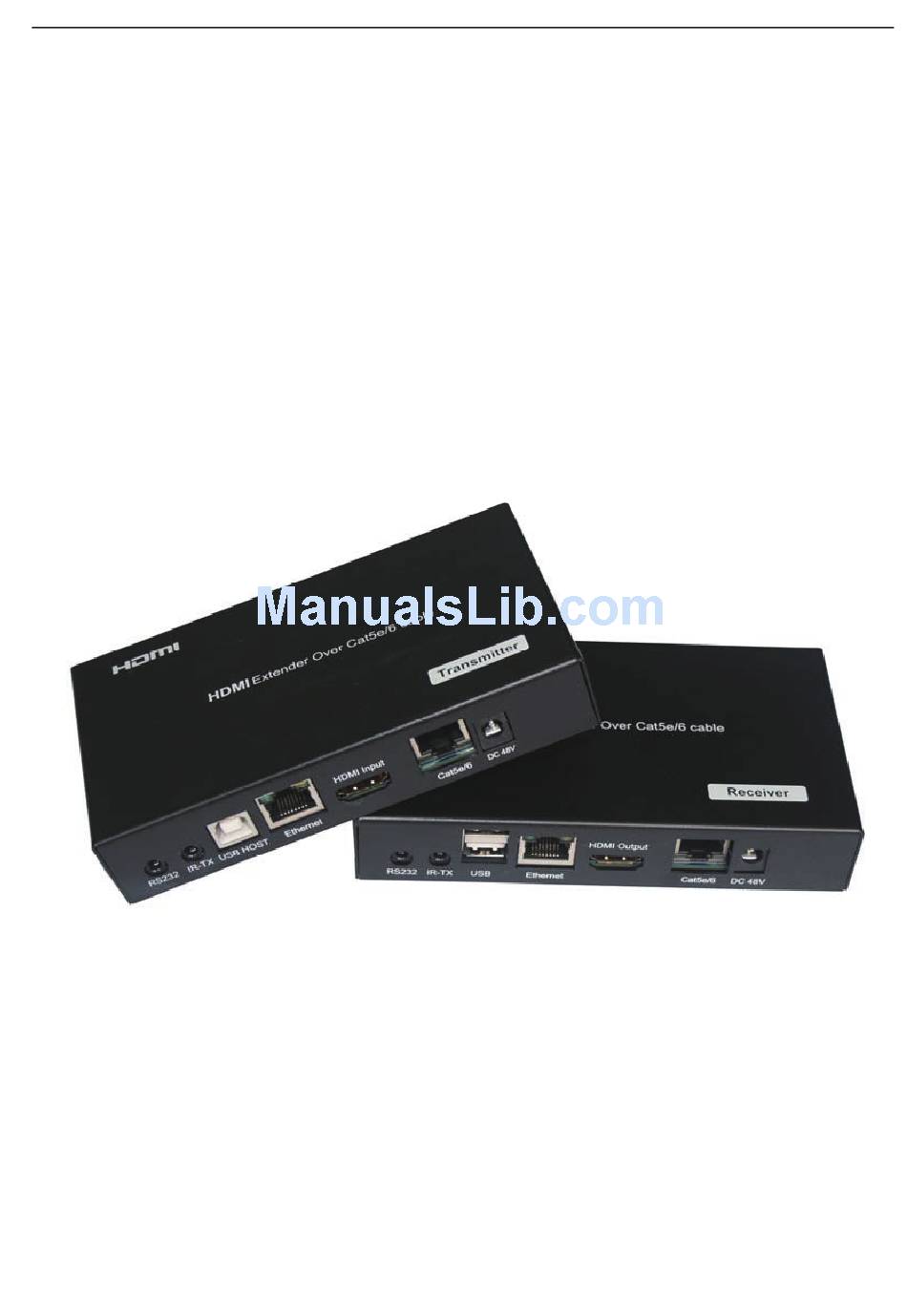

Operation instruction Incorporates HDBase-T technology HDMI Extender Operating Instruction... - Page 2 Operation instruction Notice The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied. Features ...
-
Page 3: Specifications
Operation instruction Specifications Operating Temperature Range -5 to +35 (+23 to +95 ) ℃ ℃ Operating Humidity Range 5 to 90%RH (No Condensation) Output Video Bandwidth 300MHz/10.2Gbps Ethernet Speed 100 Mbps 1xHDMI (female)-Video Input 3x3.5mm Phone Jack (RS232 debug,RS232 and IR Emitter Port) , 1xUSB Host(Type B female) Transmitter ports 1xLink Connector RJ-45... -
Page 4: Panel Description
Operation instruction Panel Description Transmitter Panel 1）Debug port:for firmware update(See default set for update) 2）LED Indicators: ① Power–The PWR LED indicates that power is available to the unit. ② Mode–The FW LED indicates that firmware has been loaded and the system is running. ③... - Page 5 Operation instruction 3）IR Receiver Window 4）RS232 – This connector is used to deliver RS232 traffic (up to 115200 bps) over the HDBaseT link 5）IR-TX port - This jack can be used for connecting TX blaster cables. 6）USB HOST (B type) -This USB port on the transmitter board connects to the USB HOST (i.e., PC or laptop). 7）Ethernet port–There is one standard Ethernet port 8）HDMI Input port 9）HDBaseT port-This is the Cat5e cable connection between the two units.
-
Page 6: Receiver Panel
Operation instruction Receiver Panel Debug port:for firmware update.(See default set for update) LED Indicators: ① Power–The PWR LED indicates that power is available to the unit. ② Mode–The FW LED indicates that firmware has been loaded and the system is running. ③... -
Page 7: Connecting And Operating
Operation instruction RS232 control: illustrates the schematics of the RS232 connector used for the RS232 channel or for the UART debug connector. TO debug ports Connection Diagram Application-1 Application CONNECTING AND OPERATING 1) Connect the HDMI signal sources (Such as DVD, STB etc) to HDMI Transmitter. 2) Connect cat5e/6 cables to both HDBaseT port of the transmitter and HDBaseT port of the Receiver. -
Page 8: Safety Information
Operation instruction Safety information safeguards To reduce the risk of electric shock, do not expose this product to rain or moisture PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a)The DC power supply cord or AC adaptor has been damaged; (b)Objects or liquids have gotten into the unit;...
