Page 2

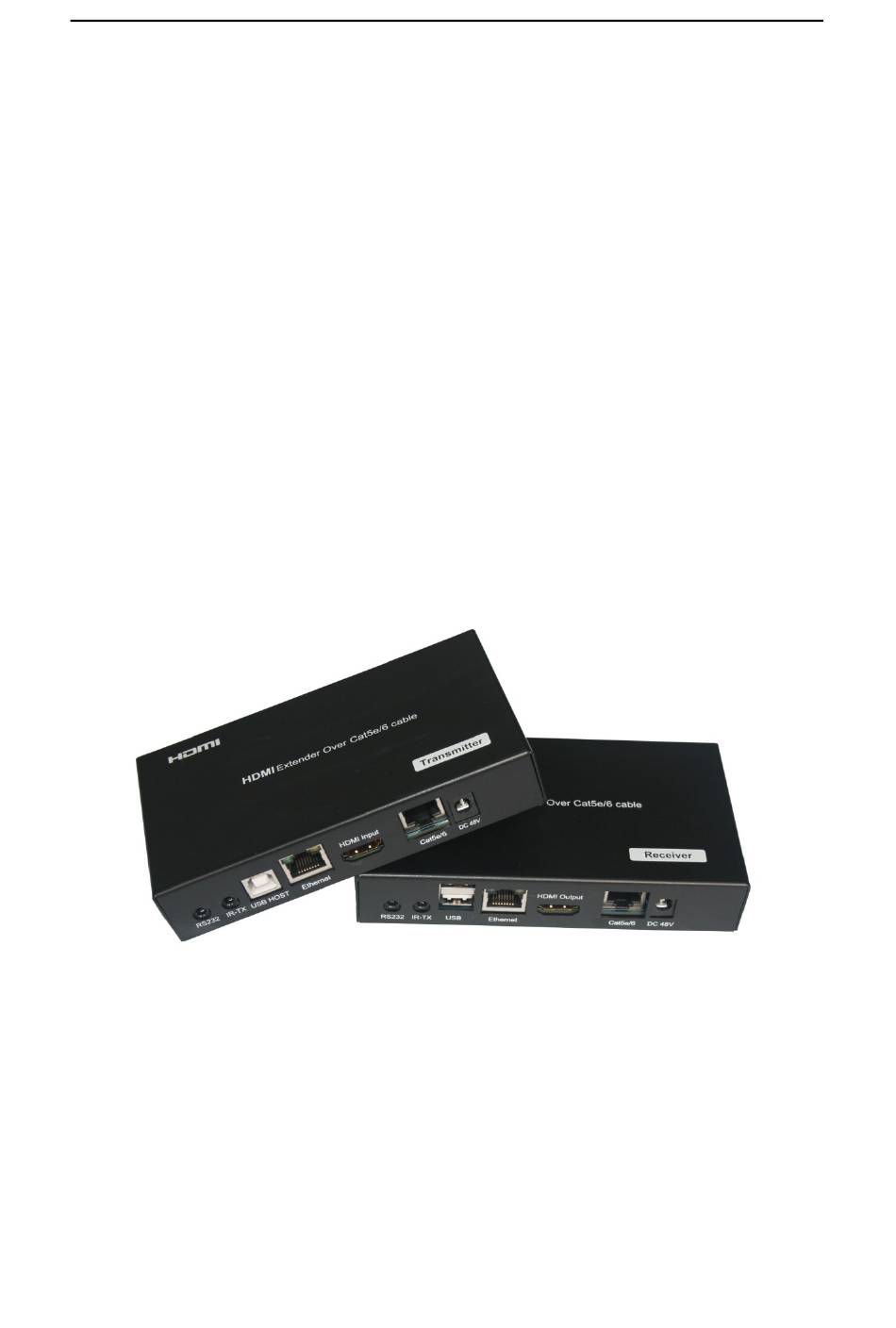

Operation instruction Notice The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied.
Page 3
Operation instruction Specifications Operating Temperature Range -5 to +35℃(+23 to +95℉) Operating Humidity Range 5 to 90%RH (No Condensation) Output Video Bandwidth 300MHz/10.2Gbps Ethernet Speed 100 Mbps 1xHDMI (female)-Video Input 3x3.5mm Phone Jack (RS232 debug,RS232 and IR Emitter Port) , Transmitter ports 1xUSB Host(Type B female) 1xLink Connector RJ-45...
Page 4
Operation instruction Panel Description Transmitter Panel Debug port: for firmware update(See default set for update) 2) LED Indicators: Power–The PWR LED indicates that power is available to the unit. Mode–The FW LED indicates that firmware has been loaded and the system is running.
Page 5
Operation instruction 3) IR Receiver Window 4) RS232 – This connector is used to deliver RS232 traffic (up to 115200 bps) over the HDBaseT link 5) IR-TX port - This jack can be used for connecting TX blaster cables. 6) USB HOST (B type) -This USB port on the transmitter board connects to the USB HOST (i.e., PC or laptop).
Page 6
Operation instruction Receiver Panel Debug port: for firmware update.(See default set for update) 2) LED Indicators: Power–The PWR LED indicates that power is available to the unit. Mode–The FW LED indicates that firmware has been loaded and the system is running.
Page 7
Operation instruction b. When the HDCP LED is blinking, it indicates that video content without HDCP protection is being transferred. c. When the HDCP LED is off, it indicates that no video is being transferred. 3) IR Receiver Window. 4) RS232 – This connector is used to deliver RS232 traffic (up to 115200 bps) over the HDBaseT link.
Operation instruction Application-2 CONNECTING AND OPERATING 1) Connect the HDMI signal sources (Such as DVD, STB etc) to HDMI Transmitter. 2) Connect cat5e/6 cables to both HDBaseT port of the transmitter and HDBaseT port of the Receiver. 3) Connect the HDMI output (Such as HD-LCD, HD-DLP) into the Receiver. 4) Connect the IR-TX cables into transmitter IR-TX portS on the back panel and affix the emitter onto the source IR windows ,Connect the IR-TX cables into receiver IR-TX portS on the back panel and affix the emitter onto the sink IR windows.
Page 9
Operation instruction Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product. The decision to repair or replace will be made by the warrantor. During the "Labor" Limited Warranty period there will be no charge for labor. During the "Parts"...
