Setting the Time Data
Locking the Time Code to an External Source
External Lock Operation Procedure
The time code generator of the VTR section can be locked to an external generator.

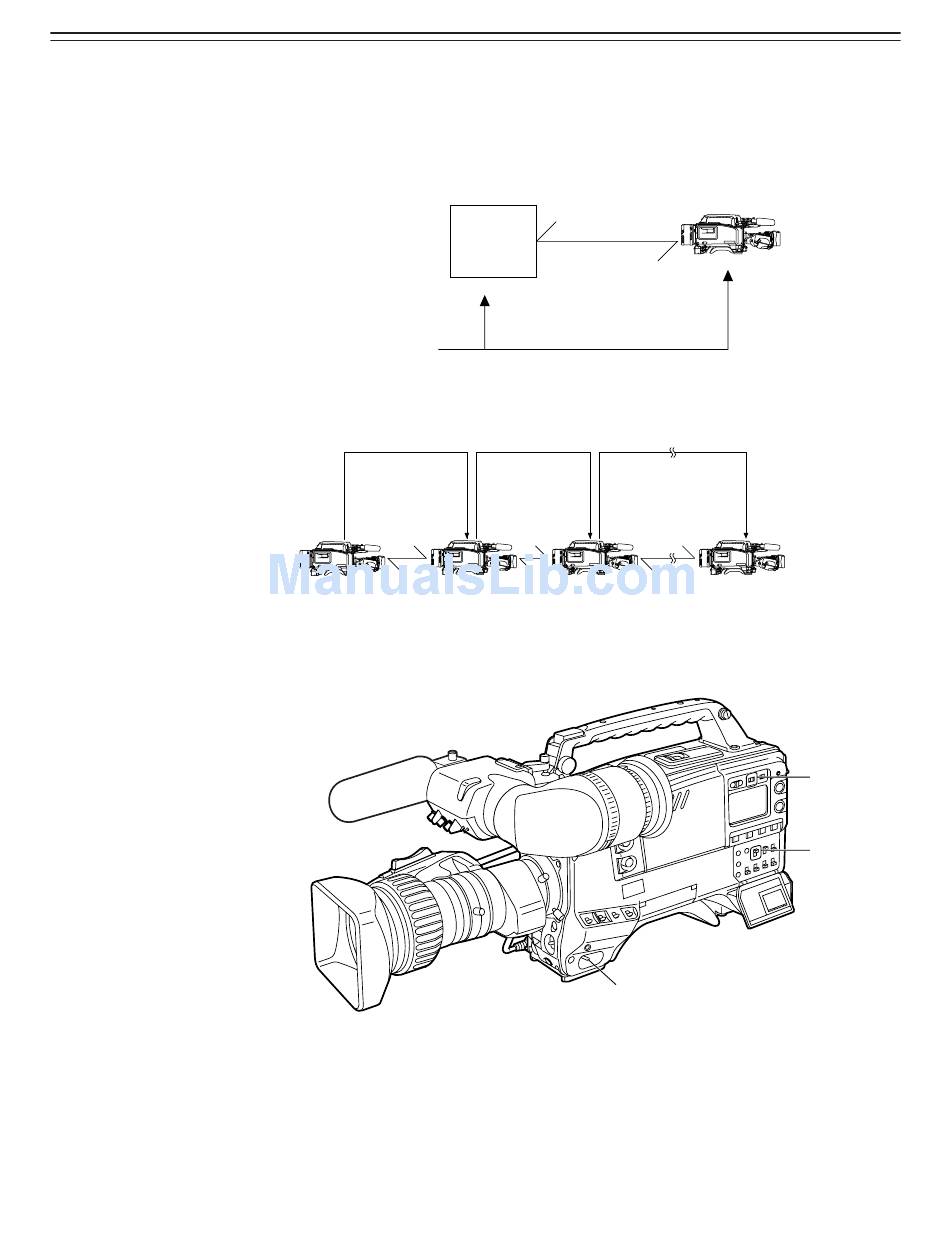

Example of connections for external locking
Example 1: Locking the time code to an external signal
Reference video signal
Example 2: When a multiple number of AJ-D610WA units are connected with one unit
serving as the master unit and the others as the slave units
GENLOCK
CAM OUT
TC IN
TC OUT
MASTER
1
Set the POWER switch to ON.
2
Set the F-RUN/R-RUN switch to F-RUN.
3
Set the DISPLAY switch to TC.
4
Supply reference time code and reference video signals, whose phases correlate in a way
that meets the time code standards, to the TC IN and GENLOCK IN/(VIDEO IN) connectors,
respectively.
TC OUT
Reference
time code
GENLOCK IN
CAM GENLOCK CAM
IN OUT IN OUT
TC IN
TC OUT
SLAVE SLAVE
– 85 –
GENLOCK IN
TC IN
GENLOCK
IN
TC IN
TC OUT
To the next unit
1
3
2
