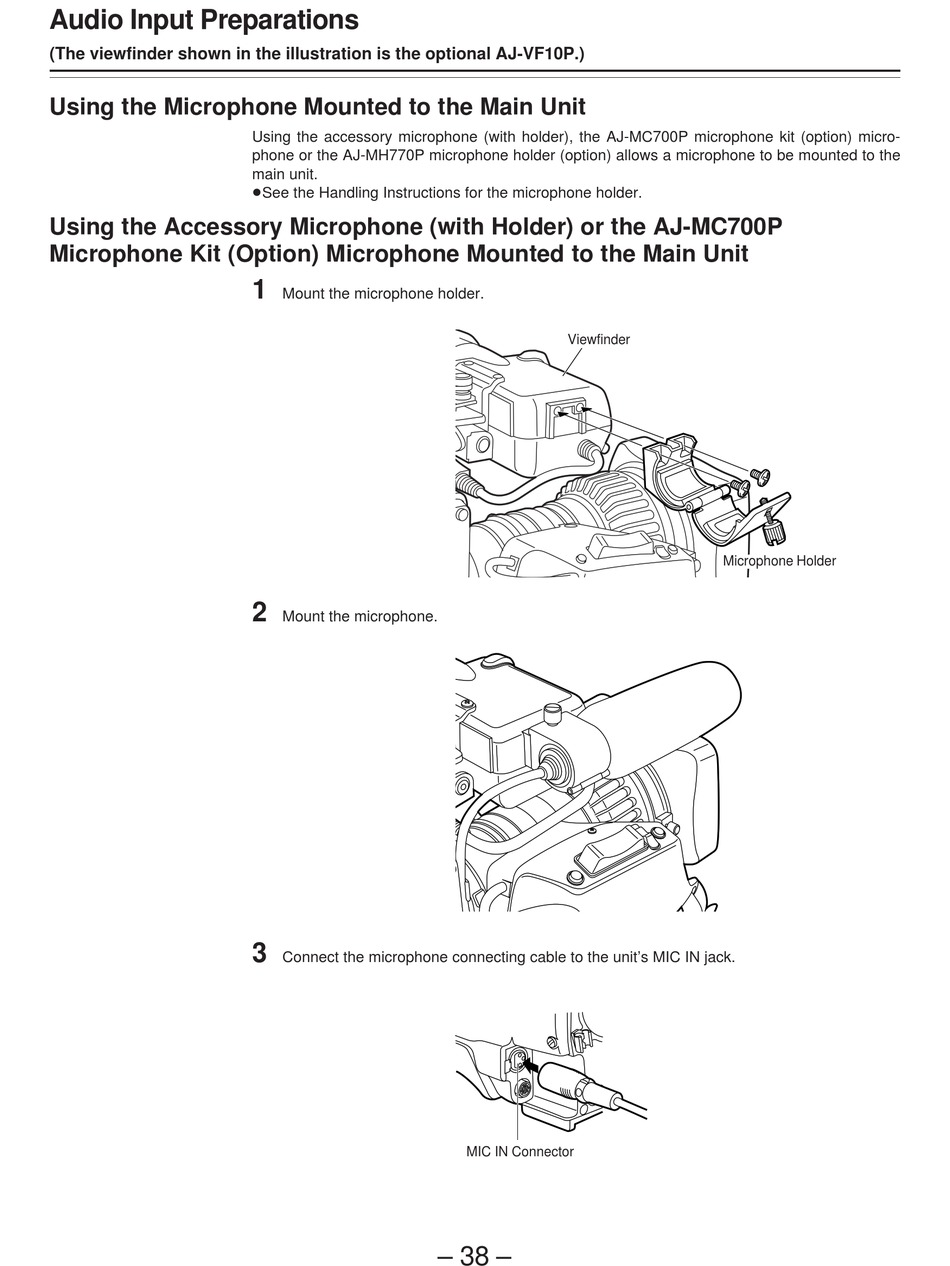

Audio Input Preparations

(The viewfinder shown in the illustration is the optional AJ-VF10P.)

Using the Microphone Mounted to the Main Unit

Using the Accessory Microphone (with Holder) or the AJ-MC700P
Microphone Kit (Option) Microphone Mounted to the Main Unit
Using the accessory microphone (with holder), the AJ-MC700P microphone kit (option) micro-
phone or the AJ-MH770P microphone holder (option) allows a microphone to be mounted to the
main unit.
ÁSee the Handling Instructions for the microphone holder.
1
Mount the microphone holder.
2
Mount the microphone.
3
Connect the microphone connecting cable to the unit's MIC IN jack.
Viewfinder
MIC IN Connector
– 38 –
Microphone Holder
