MAIN Menu Screen 2 of 4 (SUB menus)

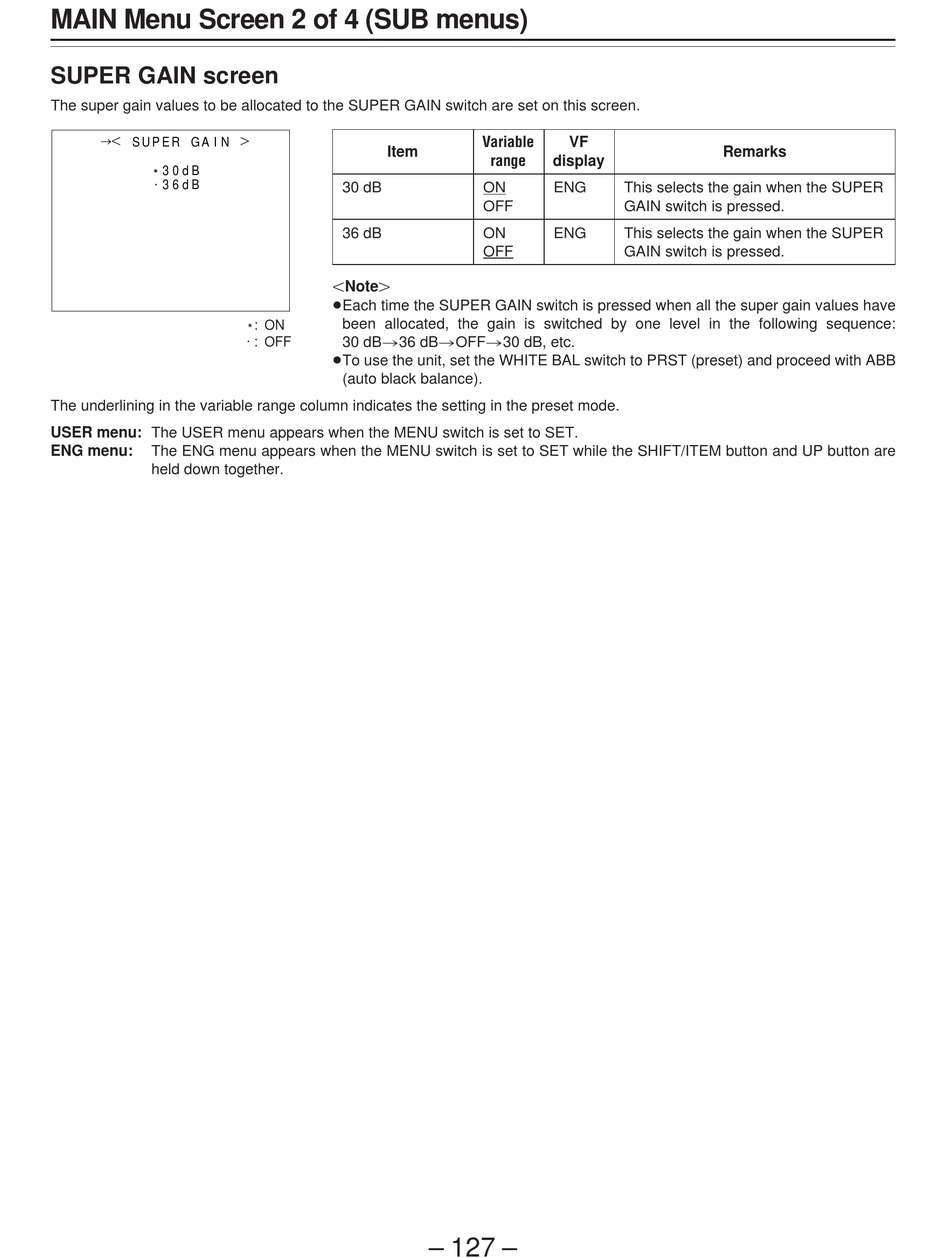

SUPER GAIN screen

The super gain values to be allocated to the SUPER GAIN switch are set on this screen.
¢| S U P E R G A I N {
E 3 0 d B
.
3 6 d B
The underlining in the variable range column indicates the setting in the preset mode.
USER menu: The USER menu appears when the MENU switch is set to SET.
ENG menu: The ENG menu appears when the MENU switch is set to SET while the SHIFT/ITEM button and UP button are
held down together.
Item
30 dB
36 dB
|Note{
ÁEach time the SUPER GAIN switch is pressed when all the super gain values have
E: ON
been allocated, the gain is switched by one level in the following sequence:
. : OFF
30 dB>36 dB>OFF>30 dB, etc.
ÁTo use the unit, set the WHITE BAL switch to PRST (preset) and proceed with ABB
(auto black balance).
VF
display
ON ENG
OFF
ON ENG
OFF
– 127 –
Remarks
This selects the gain when the SUPER
GAIN switch is pressed.
This selects the gain when the SUPER
GAIN switch is pressed.
