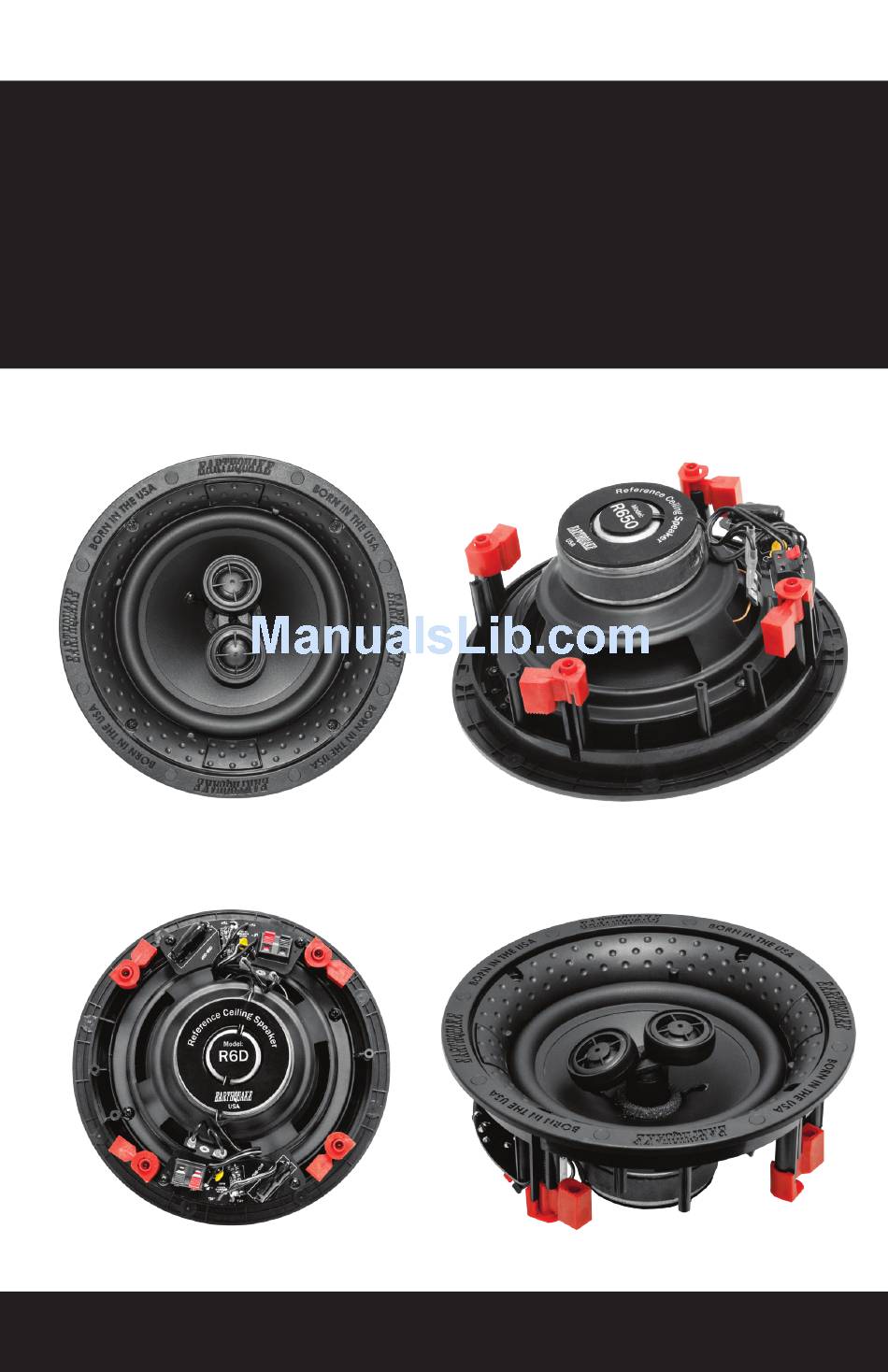

- Page 1 Edgeless Ceiling Speakers R650 Models: R800 User’s Manual Earthquake Sound Corp. | (510) 732-1000 | www.earthquakesound.com...
- Page 2 Fax: 510-732-1095 © 2016 Earthquake Sound Corporation. All rights reserved. This document should not be construed as a commitment on the part of Earthquake Sound Corporation. The information is subject to change without notice. Earthquake Sound Corporation assumes no responsibility for errors that may appear within this document.
-
Page 3: Safety Instructions
• Keep the original carton and packing materials for future shipment or storage. • Check for any visual signs of damage. If you encounter any concealed damage, consult your Earthquake Sound dealer before proceeding with unit installation. • Retain the sales receipt as it establishes the duration of the limited warranty and provides information for insurance purposes. -
Page 4: System Installation Considerations
• Keep all power cords away from all signal cables to prevent humming from induced noise. • Choose reliable signal cable cords (Earthquake Sound also specializes in high-performance RCA cables and patches). • All speaker wires that are ran through the walls should be twisted to reduce potential hum noise pick up. -
Page 5: Speaker Placement
Speaker Placement Edgeless RCS in-ceiling speakers are designed to be flush mounted in walls or ceilings. To optimize their acoustics you should follow these simple guidelines: For best stereo reproduction the speakers should be placed an equal distance from your listening position and separated so that the angle between them is between 40-60°. - Page 6 2.5 lbs (1.14kg) 8-13/16” (233.5mm) 4” (101mm) 3-3/16” (81mm) 7-7/8” (200mm) Frame Diameter: 8-13/16” (223.5mm) Grille Diameter: 9” (228mm) Cut-out Hole Diameter: 7-7/8” (200mm) Mounting Depth: 4” (101mm) Magnet Diameter: 3-3/16” (81mm) RCS In-Ceiling Manual Earthquake Sound Corp. | www.earthquakesound.com...
- Page 7 R6D Specifications Woofer Size: 6-1/2” (165mm) Woofer Material: Polypropylene Tweeter Size: 1” (25mm) Tweeter Material: Silk Dome/NEO Magnet Power Handling Max: 160 Watts Frequency Response: 45Hz - 20kHz Sensitivity: 93dB @ 1W/1M Impedance: Dual 8-Ohm Crossover: 12dB/Octave Filter Network with Polyswitch Grille Finish: White/Paintable Weight:...
- Page 8 3.00 lbs (1.36kg) 10-1/2” (267mm) 4-9/16” (116mm) 3-7/16” (86mm) 9-1/2” (240mm) Frame Diameter: 10-1/2” (267mm) Grille Diameter: 10-5/8” (270mm) Cut-out Hole Diameter: 9-1/2” (240mm) Mounting Depth: 4-9/16” (116mm) Magnet Diameter: 3-7/16” (86mm) RCS In-Ceiling Manual Earthquake Sound Corp. | www.earthquakesound.com...
- Page 9 R8D Specifications Woofer Size: 8” (203mm) Woofer Material: Polypropylene Tweeter Size: 1” (25mm) Tweeter Material: Silk Dome/NEO Magnet Power Handling Max: 200W Frequency Response: 45Hz - 20kHz Sensitivity: 92dB @1/W1M Impedance: Dual 8-Ohm Crossover: 12dB/Octave Filter Network with Polyswitch Grille Finish: White/Paintable Weight: 3.20 lbs (1.45kg)
-
Page 10: Year Limited Warranty
The ten (10) year limited warranty period is valid only if an authorized Earthquake dealer properly installs the product and the warranty registration card is properly filled out and sent to Earthquake Sound Corporation. If a non- authorized party installs the product, a ninety (90) day warranty period will be applied. - Page 11 Subsequent damage to other products. A warranty claim will not be valid if the warranty registration card is not properly filled & returned to Earthquake with a copy of the sales receipt. (E) Service Request: To receive product service, contact Earthquake Service Department at (510) 732-1000 and request an RMA number (Return Material Authorization).
- Page 12 ® The Sound That Will Move You Earthquake Sound reserves the right to amend details of the specifications without notice. © Copyright Earthquake Sound Corporation Earthquake Sound Corporation 2727 McCone Avenue, Hayward CA, 94545 Phone: (510) 732-1000 Fax: (510) 732-1095...
