Installation
Instructions
Questions? Call
1-800- 61-3 4
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT –
•
instructions for local inspector's use.
IMPORTANT –
•
governing codes and ordinances.
Note to Installer –
•
instructions with the Consumer.
or
5
3
4
Visit our Website at:
Save these
Observe all
Be sure to leave these

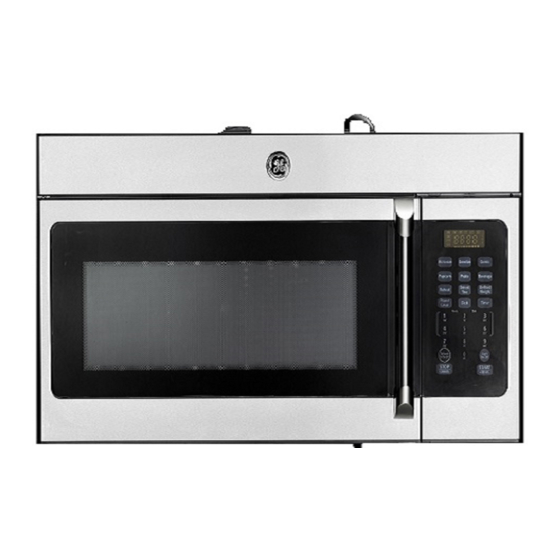

Over the Range
Microwave Oven
geappliances.ca
Note to Consumer –
•
instructions for future reference.
• Skill level – Installation of this appliance requires
basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
KEEP THESE INSTRUCTIONS
Keep these
READ CAREFULLY.
.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GEAppliances cvm1599svc
Summary of Contents for GEAppliances cvm1599svc
- Page 1 Installation Over the Range Instructions Microwave Oven geappliances.ca Questions? Call 1-800- 61-3 4 Visit our Website at: BEFORE YOU BEGIN Read these instructions completely and carefully. Note to Consumer – • Keep these instructions for future reference. IMPORTANT – •...
-
Page 2: Table Of Contents
Installation Instructions Adapting Microwave Blower CONTENTS for Outside Back Exhaust....17, 18 General information Mount the Microwave Oven ....19 Important Safety Instructions ........3 Recirculating ........– Electrical Requirements .......... 3 Attach Mounting Plate to Wall .... Hood Exhaust ............4, 5 Preparation of Top Cabinet ....20 Damage –... -
Page 3: Important Safety Instructions
Installation Instructions IMPORTANT SAFETY INSTRUCTIONS You should have the wall receptacle and circuit checked This product requires a three-prong grounded outlet. by a qualified electrician to make sure the receptacle is The installer must perform a ground continuity check properly grounded. on the power outlet box before beginning the installation to insure that the outlet box is properly Where a standard two-prong wall receptacle is... -
Page 4: Hood Exhaust
Installation Instructions EXTERNAL EXHAUST DUCTING NOTE: Read these next two pages only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, proceed to page . OUTSIDE TOP EXHAUST (EXAMPLE ONLY) The following chart describes an example of one possible ductwork installation. - Page 5 Installation Instructions INSTALLATION INSTRUCTIONS FOR EXTERNAL EXHAUST DUCTING Maximum duct length: NOTE: If you need to install ducts, note that the total duct length of 3 ⁄ ” x 10” (8.2 x 25.4 cm) rectangular or For satisfactory air movement, the total duct length of 5”...
-
Page 6: Damage-Shipment/ Installation
Installation Instructions PARTS INCLUDED DAMAGE—SHIPMENT/ (CONT.) INSTALLATION ADDITIONAL PARTS • If the unit is damaged in shipment, return the PART QUANTITY unit to the store in which it was bought for repair or replacement. • Template and If the unit is damaged by the customer, repair or replacement is the responsibility of the customer. -
Page 7: Tools You Will Need
Installation Instructions TOOLS YOU WILL NEED Ruler or tape measure and straight edge Pencil Carpenter square # 1 Phillips screwdriver (optional) Tin snips (for cutting damper, if required) Scissors “ “ “ Electric drill with ⁄ ⁄ ⁄ (to cut template, if necessary) drill bits Filler blocks or scrap wood pieces, if needed... -
Page 8: Placement Of The Mounting Plate
Installation Instructions PLACEMENT OF THE MOUNTING PLATE REMOVING THE MICROWAVE FINDING THE WALL STUDS OVEN FROM THE CARTON/ REMOVING THE MOUNTING PLATE Remove the installation instructions, filters, glass tray and the small hardware bag. Do not remove the Styrofoam protecting the front of the oven. Wall Studs Fold back all 4 carton flaps fully against carton... -
Page 9: Determining Wall Plate Location
Inst allat ion Inst ruct ions DETERM INING WALL PLATE LOCATION UNDER YOUR CABINET Template beneath cabinet Template beneath cabinet with recessed bottom with flat bottom Trim the rear wall 16-1/2″ template along the dotted line. Trim the rear wall Draw a vertical line on the wall at 16-1/2″... -
Page 10: Aligning The Wall Plate
Installation Instructions ALIGNING THE WALL PLATE 3/8" TO EDGE 12" NOTE: IT IS VERY IMPORTANT TO Trim the rear wall template along the dotted line. READ AND FOLLOW THE DIRECTIONS IN THE INSTALLATION INSTRUCTIONS BEFORE PROCEEDING WITH THIS REAR WALL TEMPLATE. This Rear Wall Template serves to position the bottom 4"... -
Page 11: Installation Types
Installation Instructions INSTALLATION TYPES (Choose A, B or C) This microwave oven is designed for adaptation to NOTE: This microwave is shipped assembled for the following three types of ventilation: Recirculating. Select the type of ventilation required for your installation and proceed to that section. -
Page 12: Aoutside Top Exhaust
Installation Instructions OUTSIDE TOP EXHAUST (Vertical Duct) INSTALLATION OVERVIEW A1. Attach Mounting Plate to Wall A2. Prepare Top Cabinet Adapting Microwave Blower for Outside Top Exhaust A4. Check Damper Operation Mount Microwave Oven 3/8" TO EDGE along the dotted line. Trim the rear wall template Adjust Exhaust Adaptor 12"... -
Page 13: Preparation Of Top Cabinet
Installation Instructions USE TOP CABINET TEMPLATE Carefully pull out the blower unit. The wires FOR PREPARATION OF TOP will extend far enough to allow you to adjust the blower unit. CABINET End B You need to drill holes for the top support screws, a hole large enough for the power cord to fit through, and a cutout large enough for the exhaust adaptor. -
Page 14: Checking For Proper Damper Operation
Installation Instructions MOUNT THE MICROWAVE ADAPTING MICROWAVE OVEN BLOWER FOR OUTSIDE TOP EXHAUST Secure blower unit to microwave with the screw removed in Step 1. Make sure the screw is tight. Replace blower plate with the screw removed in Step 1. Make sure the screw is tight. FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN. -
Page 15: Adjust The Exhaust Adaptor
Installation Instructions MOUNT THE MICROWAVE ADJUST THE EXHAUST OVEN (cont.) ADAPTOR Open the top cabinet and adjust the exhaust adaptor Cabinet Front to connect to the house duct. Cabinet Bottom Shelf Filler Block Back of Damper Blower Plate Microwave Equivalent to Depth of Cabinet Recess... -
Page 16: Boutside Back Exhaust
Installation Instructions OUTSIDE BACK EXHAUST (Horizontal Duct) INSTALLATION OVERVIEW B1. Prepare Rear Wall B2. Remove Blower Plate B3. Attach Mounting Plate to Wall B4. Prepare Top Cabinet B5. Adjust Blower 3/8" TO EDGE along the dotted line. Trim the rear wall template 12"... -
Page 17: Attach Mounting Plate To Wall
Installation Instructions ATTACH THE MOUNTING USE TOP CABINET TEMPLATE PLATE TO THE WALL FOR PREPARATION OF TOP CABINET You need to drill holes for the top support screws and a hole large enough for the power cord to fit through. Attach the plate to the wall using toggle bolts. - Page 18 Installation Instructions Place the blower unit back into the opening. ADAPTING MICROWAVE BLOWER FOR OUTSIDE AFTER: Fan Blade Openings Facing Back BACK EXHAUST (cont.) End A Roll the blower unit 90° Before Rotation After Rotation End B CAUTION: Do not pull or stretch the blower unit wiring.
-
Page 19: Mount The Microwave Oven
Installation Instructions Cabinet Front MOUNT THE MICROWAVE Cabinet Bottom Shelf OVEN Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw FOR EASIER INSTALLATION AND PERSONAL Microwave Oven Top SAFETY, WE RECOMMEND THAT TWO PEOPLE Attach the microwave oven to the top cabinet. INSTALL THIS MICROWAVE OVEN. -
Page 20: Recirculating
Installation Instructions RECIRCULATING (Non-Vented Ductless) INSTALLATION OVERVIEW C1. Attach Mounting Plate to Wall C2. Prepare Top Cabinet C3. Check Blower Plate 3/8" TO EDGE Trim the rear wall template along the dotted line. 12" NOTE: IT IS VERY IMPORTANT THE DIRECTIONS READ AND FOLLOW INSTRUCTIONS IN THE INSTALLATION... -
Page 21: Check Blower Plate
Installation Instructions CHECK BLOWER PLATE NOTE: When mounting the microwave oven, thread power cord through hole in Blower Plate bottom of top cabinet. Keep it tight throughout Steps Lift microwave, tilt 1–3. Do not pinch cord or it forward, and hook lift oven by pulling cord. -
Page 22: Charcoal Filter
Installation Instructions MOUNT THE MICROWAVE C5. INSTALLING OR CHANGE OVEN (cont.) THE CHARCOAL FILTER Insert 2 self-aligning screws NOTE: The charcoal filter is factory installed in through outer top cabinet recirculating models. Follow these steps to replace a holes. Turn two full turns on filter or to install a filter after converting a vented each screw. -
Page 23: Before You Use Your Microwave
Installation Instructions BEFORE YOU USE YOUR MICROWAVE & Make sure the microwave oven has been Read the CARE Manual. installed according to instructions. KEEP INSTALLATION INSTRUCTIONS Remove all packing material from the FOR THE LOCAL INSPECTOR’S USE. microwave oven. Install turntable ring and glass tray in cavity Replace house fuse or turn breaker back on. - Page 24 3/8" TO EDGE 12" Trim the rear wall template along the dotted line. NOTE: IT IS VERY IMPORTANT TO READ AND FOLLOW THE DIRECTIONS IN THE INSTALLATION INSTRUCTIONS BEFORE PROCEEDING WITH THIS REAR WALL TEMPLATE. This Rear Wall Template serves to position the bottom 4"...
