Delfield SALD-1 Installation, Operation And Maintenance Manual
Salad and vegetable drier
Hide thumbs
Also See for SALD-1:
- Specifications (1 page) ,
- Service, installation and care manual (12 pages)
Table of Contents
Related Manuals for Delfield SALD-1
Summary of Contents for Delfield SALD-1

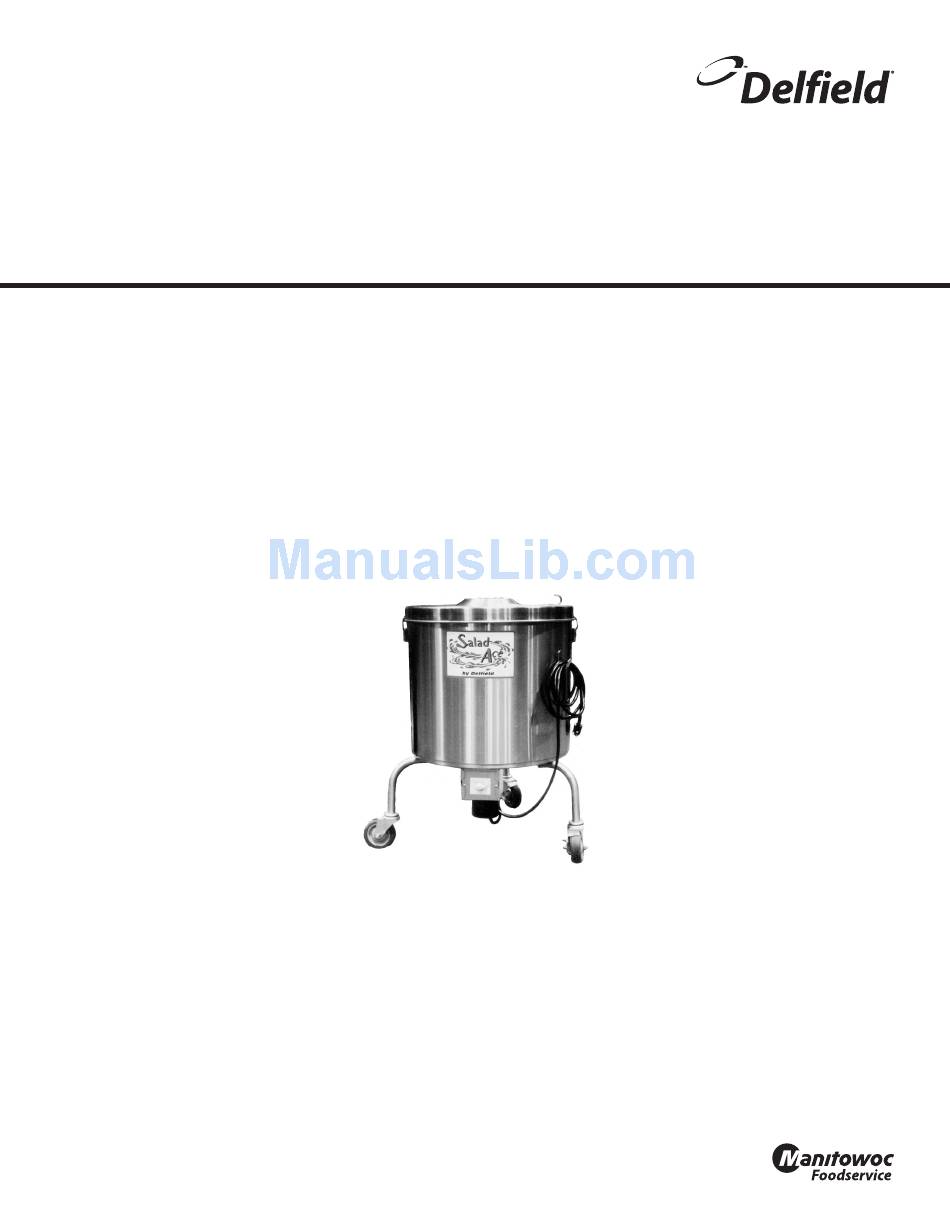

- Page 1 Salad and Vegetable Drier SALD-1 Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Part Number: 9291492 08/16...
- Page 2 Safety Notices Warning Use caution when handling metal surface edges of all Warning equipment. Read this manual thoroughly before operating, installing or performing maintenance on the equipment. Failure Note to follow instructions in this manual can cause property Proper installation, care maintenance damage, injury or death.
-
Page 3: Table Of Contents
Table of Contents Section 1 General Information Model Number ........................4 Serial Number Location ..................... 4 Warranty Information ......................4 Regulatory Certifications ....................4 Section 2 Installation Location ..........................5 Weight of Equipment ......................5 Clearance Requirements ....................5 Dimensions ......................... 5 Capacity .......................... -
Page 4: General Information
Model Number Serial Number Location Salad and Vegetable Drier To view the serial number, turn the unit upside down. The SALD-1 115 Volt Model serial number is listed on the bottom on the side opposite the motor. Always have the serial number of your unit available when calling for parts or service. -
Page 5: Installation
Warning Weight of Equipment Remove all removable panels before lifting and installing. Model Ship Weight Location SALD-1 70lbs/ 32kg Clearance Requirements Warning This equipment must be positioned so that the plug is DANGER accessible unless other means for disconnection from Minimum clearance requirements are the same for the power supply (e.g., circuit breaker or disconnect... -
Page 6: Electrical Service
(183cm) cords. Check all wiring connections, including factory Model V/Hz/Ph Amps NEMA Plug terminals, before operation. Connections can become SALD-1 115/60/1 5-15P loose during shipment and installation. Drain Connections Warning Warning This appliance must be grounded and all field wiring... -
Page 7: Operation
Section 3 Operation Operating Instructions DANGER 1. Position the Salad Ace over the floor drain or place a (2) The on-site supervisor is responsible for ensuring that two gallon capacity container under the drain tube. operators are made aware of the inherent dangers of operating this equipment. - Page 8 Operation Section 3 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9291492 08/16...
-
Page 9: Maintenance
Section 4 Maintenance Warning DANGER Never use a high-pressure water jet for cleaning or It is the responsibility of the equipment owner to hose down or flood the units with water. Do not use perform a personal protective equipment hazard assessment to ensure adequate protection during power cleaning equipment, steel wool, scrapers or wire brushes on stainless steel or painted surfaces. -
Page 10: Cleaning Instructions
Maintenance Section 4 Cleaning Instructions Stainless Steel Cleaning Wipe surfaces with a damp cloth rinsed in water to remove PREPARATION AND DISASSEMBLY dust and dirt from the stainless steel. Always rub with the 1. Turn the machine timer to the OFF position. “grain”... - Page 12 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM Every new piece of Manitowoc Foodservice equipment comes with KitchenCare™ and you choose the level of service that meets your operational needs from one restaurant to multiple locations. StarCare – Warranty & lifetime service, certified OEM parts, global parts inventory, performance audited ExtraCare —...
