ECR-4-PoE+ Instruction Manual
Overview
The ECR-4-PoE+ (4 port receiver) operates with the ECT-1-PoE+ (transmitters) to provide Ethernet Extension for up
to 4 channels of 10/100Base-TX over coaxial cable. The ECR-4-PoE+ incorporates an Ethernet switch which
consolidates the input EoC signals to 1 port of 10/100/1000Mbps Ethernet . This equipment is capable of operating
over a coaxial cable distance of up to 800m. This product supports PoC, hence, no dc power is required for the
transmitter side and the connected IP camera (assuming the camera supports Power over Ethernet PoE). This
product is good for retrofitting analogue to IP while maintaining the existing coaxial cable infrastructure.

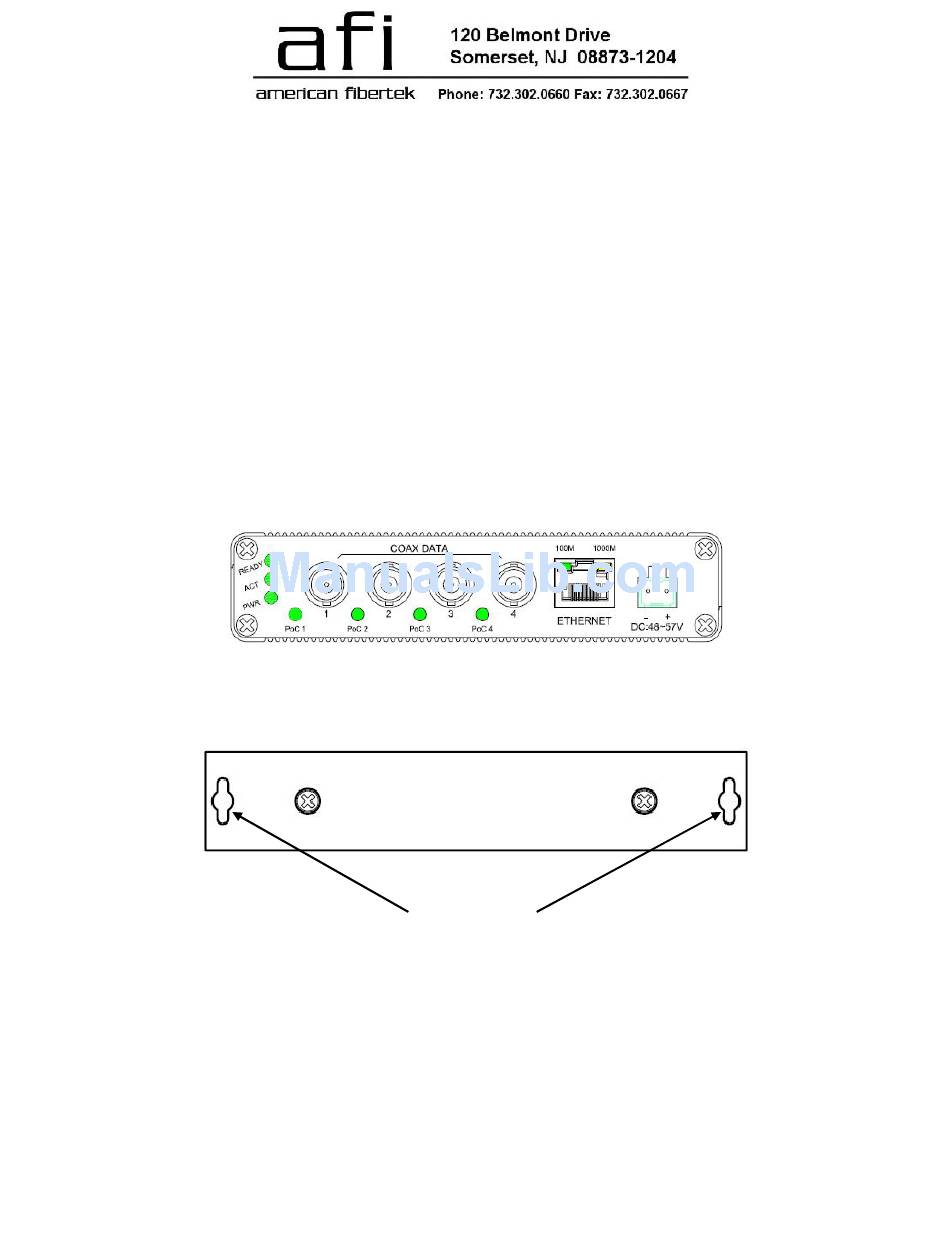

Physical Description
Front Panel
Rear Panel
Mounting holes
1
1/15/2015 JPK
Advertisement
Related Manuals for AFi ECR-4-PoE+
Summary of Contents for AFi ECR-4-PoE+
-
Page 1: Physical Description
ECR-4-PoE+ Instruction Manual Overview The ECR-4-PoE+ (4 port receiver) operates with the ECT-1-PoE+ (transmitters) to provide Ethernet Extension for up to 4 channels of 10/100Base-TX over coaxial cable. The ECR-4-PoE+ incorporates an Ethernet switch which consolidates the input EoC signals to 1 port of 10/100/1000Mbps Ethernet . This equipment is capable of operating over a coaxial cable distance of up to 800m. -
Page 2: Power Connection
Installation There are two mounting holes in each side of the rear panel. Mount the product on wall with appropriate screws. Then, push left or right, if the equipment fixed vertically, or push down, if equipment fixed horizontally, to make it fixed tighter. -
Page 3: Cable Connection
Cable Connection Interface Type Support Description Cable Type 10Base-T Category 3 or above cable RJ45 100Base-TX Category 5 or above cable 1000Base-T Category 5 or above cable BNC (Female) Ethernet over Coax Data RG-59/U or similar 2-pin Terminal Block Power input (48~57VDC) 2-wire LED Status LEDs... - Page 4 Dimensions (Unit: mm) 1/15/2015 JPK...
