2.9 Do not use a Bantam Battery charger. A Bantam
charger will not charge QB1c.

3.0 MOUNTING QB1c

3.1 To mount under the camera, insert the screw of QB1c into the tripod socket of the camera. Tighten
securely with the wheel.
3.2 "X" series modules are recommended for under camera mounting.
3.3 To wear QB1c on a belt, attach the belt clip to the screw of the QB1c and tighten with the wheel.
3.4 "M" series modules are recommended for wearing QB1c on a belt, or use type "X" series modules with
extension cord BEX.

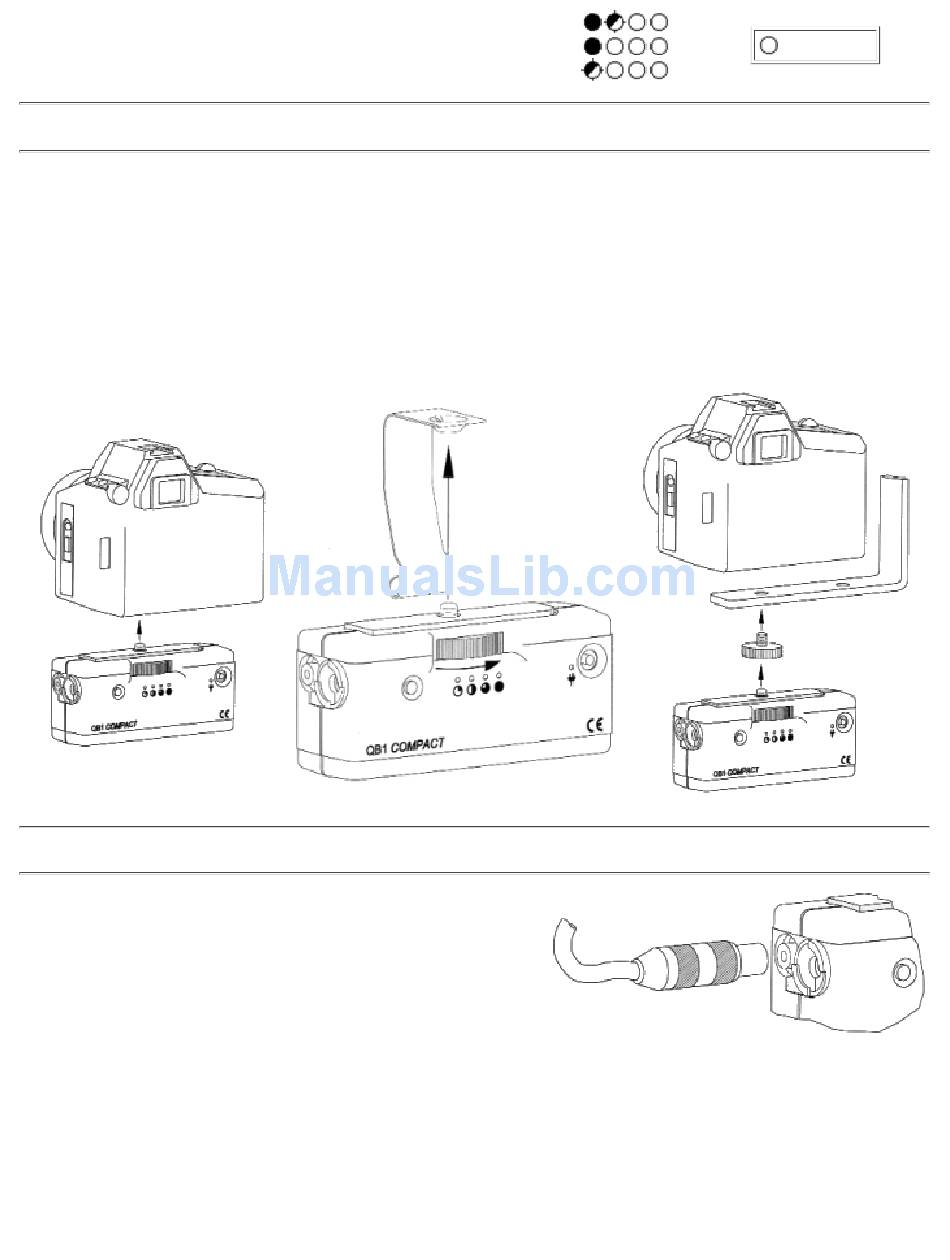

3.5 To mount QB1c below a camera bracket a male/female tripod thumbscrew may be necessary. This will
allow QB1c to clear the thumbscrew that holds the camera to the bracket. (See the mounting diagram).
Your camera dealer can supply a suitable male/female thumbscrew.

4.0 POWERING THE FLASH

4.1 Connect the module to the flash. (See Module Instructions
to explain the proper module position). Turn the flash on.
4.2 Plug the module into one QB1c flash output.
4.3 Turn QB1c ON by pressing the panel button. Note: QB1c
will not remain on without a module plug connected.
4.4 Indicators on the flash will light and you will hear the flash
recycling.
4.5 If there is no response from the flash, turn QB1c off
immediately. Check for proper module position inside the
flash.
4.6 The LED "gas gauge" shows remaining battery capacity.
When only the red LED is lit about 10% - 20% capacity
remains. When only the red LED blinks slowly, power is
cut off and the battery needs recharging.
25-50%
0-25% =
OFF
0%
