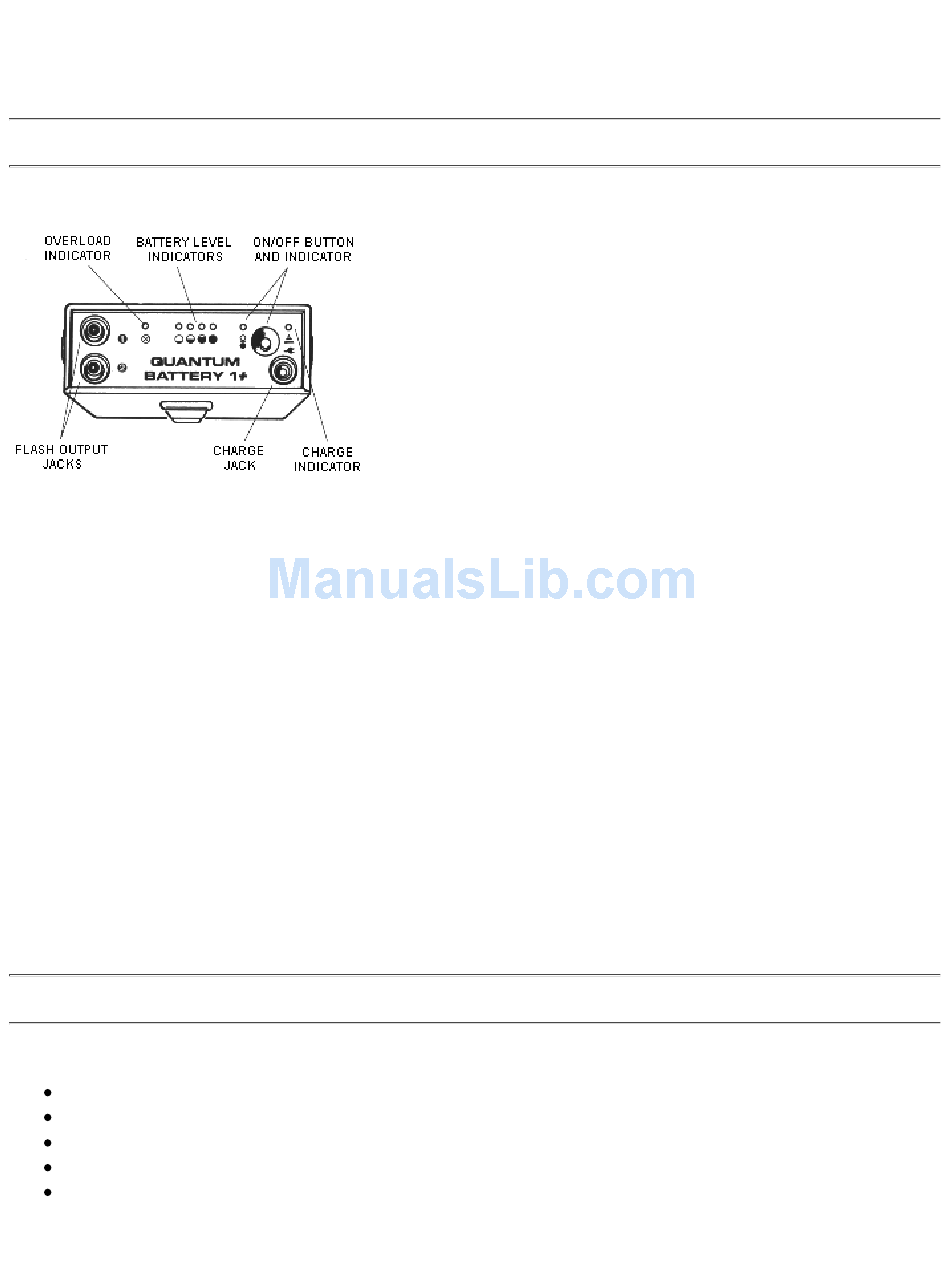

Quantum QB1+ Operating Instructions

QUANTUM BATTERY 1+
OPERATING INSTRUCTIONS
For Quantum Battery 1+ 's with Serial Numbers : L270 and above

1.0 NEW FEATURES

Whether you are an old or new QB1 or QB1+ user, please read these new instructions for the latest
operating updates!
1.1 Battery Capacity Display - Without any flash Modules connected, press the ON/OFF Button. The
LED "gas gauge" will display battery capacity for 3 seconds and then shut off.
1.2 Discharge Prevention - If the ON/OFF Button is pressed for more than 10 seconds, the QB1+ shuts off
to prevent accidental discharge, such as when stored in a camera bag.
1.3 Energy Saving Mode - Hold down the ON/OFF Button about 3 seconds until the LED "gas gauge"
blinks once, then release the Button. The yellow LED will be on and the LED "gas gauge" will display
every 3 seconds.
1.4 Low Battery Shut Down - When the cells are exhausted QB1+ shuts itself off. The red Error LED
lights and one red "gas gauge" LED blinks slowly. After one minute all lights shut off. Charge QB1+ as
soon as possible.
1.5 Over Current/Overheat Protection - QB1+ shuts down, the red Error LED will light, and the "gas
gauge" will blink 3 times every 2 seconds.
1.6 Charging - Charging time is decreased to between 3 and 5 hours. The LED "gas gauge" indicates the
charge progress.
1.7 Self Check - When connecting the charger, QB1+ goes through a self check. If QB1+ detects any
problems, the red Error LED will light, and one or more of the "gas gauge" LED's will be blinking. See
section 5.3.

2.0 CHARGING QB1+

2.1 When to Charge:
Charge QB1+ before using it for the first time.
Charge after each use. The QB1+'s lead cells have no memory.
Never discharge fully prior to recharging.
Charge immediately if there is a Low Battery shutdown.
Charge before storing QB1+. Recharge a stored QB1+ every 3 months.
