1
A
a
B
AUDIO OUT
R
L
b
2
DC IN
12V

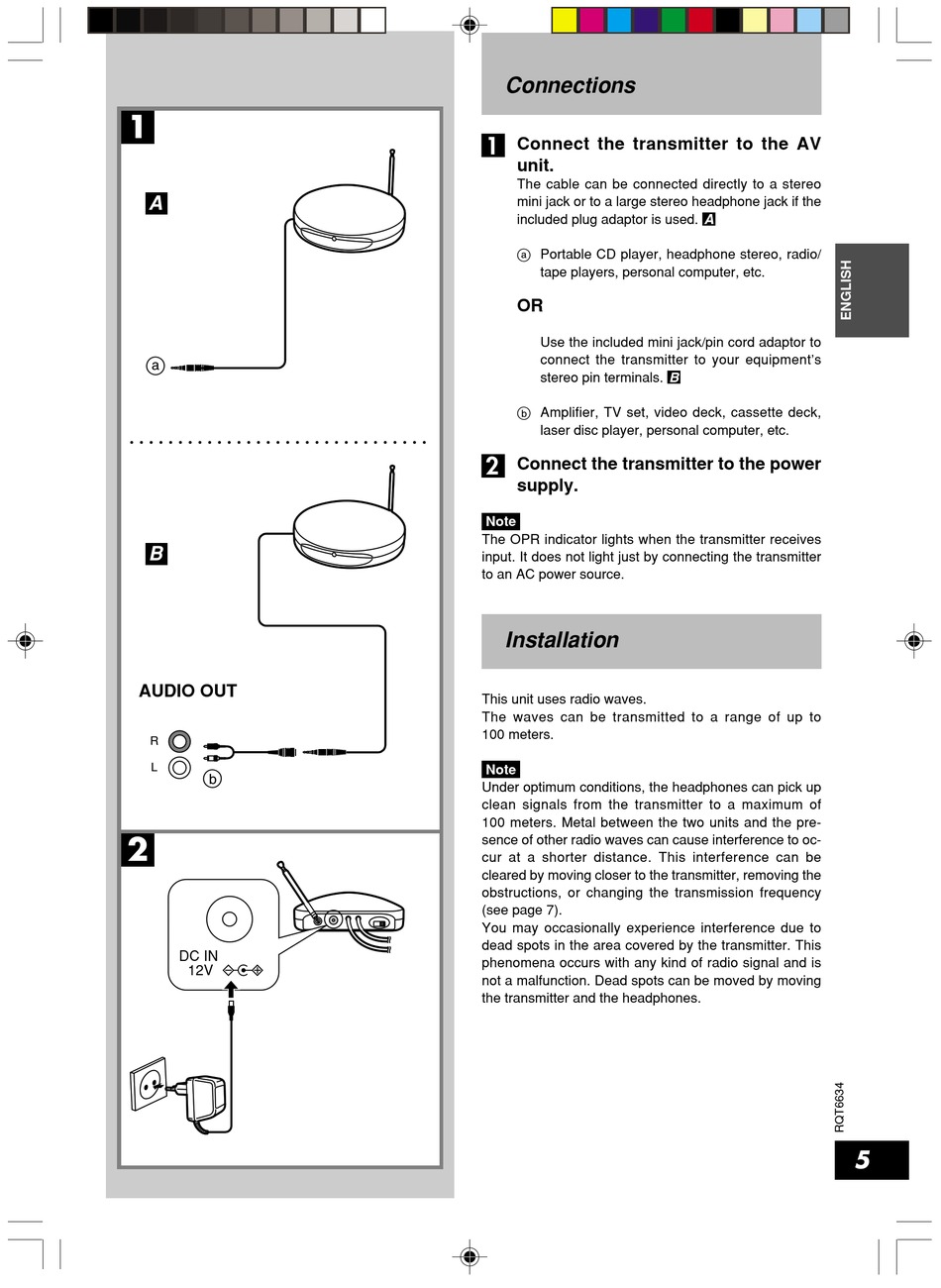

Connections
...
1
Connect the transmitter to the AV
unit.
The cable can be connected directly to a stereo
mini jack or to a large stereo headphone jack if the
included plug adaptor is used. A
a Portable CD player, headphone stereo, radio/
tape players, personal computer, etc.
OR
Use the included mini jack/pin cord adaptor to
connect the transmitter to your equipment's
stereo pin terminals. B
b Amplifier, TV set, video deck, cassette deck,
laser disc player, personal computer, etc.
...
2
Connect the transmitter to the power
supply.
Note
The OPR indicator lights when the transmitter receives
input. It does not light just by connecting the transmitter
to an AC power source.
Installation
This unit uses radio waves.
The waves can be transmitted to a range of up to
100 meters.
Note
Under optimum conditions, the headphones can pick up
clean signals from the transmitter to a maximum of
100 meters. Metal between the two units and the pre-
sence of other radio waves can cause interference to oc-
cur at a shorter distance. This interference can be
cleared by moving closer to the transmitter, removing the
obstructions, or changing the transmission frequency
(see page 7).
You may occasionally experience interference due to
dead spots in the area covered by the transmitter. This
phenomena occurs with any kind of radio signal and is
not a malfunction. Dead spots can be moved by moving
the transmitter and the headphones.
5
