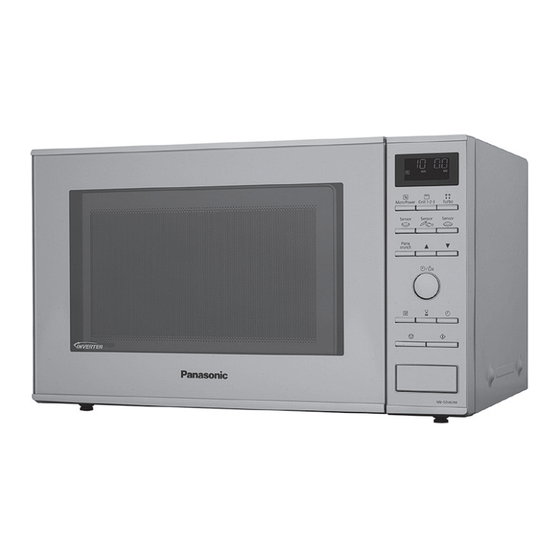

Panasonic NN-GD462M Operating Instructions Manual

Hide thumbs Also See for NN-GD462M:

Operating instructions manual (313 pages)

Service manual (34 pages)

Service manual (21 pages)

Table Of Contents

Table of Contents

Quick Links

Summary of Contents for Panasonic NN-GD462M

Page 1 Návod k obsluze Kezelési útmutató Instrucţiuni de operare Microwave /Grill Oven Mikrowellengerät mit Grill Magnetron/Grill Oven Four à Micro-ondes-Gril Forno a Microonde e Grill Horno Microondas/Grill Kuchenka Mikrofalowa z Grillem Mikrovlnná / trouba/ Gril Grillezős/mikrohullámú sütö Cuptor cu microunde NN-GD452W / NN-GD462M...
Page 2 IMPORTANT SAFETY INSTRUCTIONS. Before operating this oven, please read these instructions carefully and keep for future reference. WICHTIGE SICHERHEITSANWEISUNGEN. Vor Gebrauch des Mikrowellengerätes bitte diese Bedienungsanleitung sorgfältig durchlesen und aufbewahren. BELANGRIJKE VEILIGHEIDSINSTRUCTIES. Alvorens u deze microgolfoven gebruikt, raden wij u ten zeerste aan deze gebruiksaanwijzing door te lezen en bij te houden voor eventueel toekomstig gebruik.
Page 3 Important safety instructions. Before „ operating this oven, please read these instructions carefully and keep for future reference. This appliance can be used by children „ aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction by a person responsible for their safety concerning the...
Page 4 agent or a similarly qualified person in order to avoid a hazard. Warning! The appliance should be „ inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.
Page 5 instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. For Countertop use: Allow 15 cm of space on the top of the „ oven, 10 cm at the back, 5 cm on one side, and the other side open.
Page 6 The contents of feeding bottles and baby „ food jars are to be stirred or shaken. The temperature has to be checked before consumption to avoid burns. Do not cook eggs in their shells and whole „ hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs may explode, even after the microwave heating has ended.
Page 7 Failure to maintain the oven in a clean „ condition could lead to deterioration of surfaces that could affect the life of the appliance and possibly result in a hazardous situation. Warning! The accessible parts may „ become hot in combination use. Young children should be kept away.
Page 8 take care when opening or closing the door and when inserting or removing food and accessories. This appliance is not intended to be „ operated by means of an external timer or separate remote-control system. Only use utensils that are suitable for use in „...
Page 9: Table Of Contents
Using the memory function 22 Turbo defrost 23 Auto sensor programs 24-26 Auto weight Panacrunch programs 27 Panacrunch pan 28 Questions and answers 29 Care of your oven 30 Technical specifications 31 Thank you for purchasing a Panasonic Microwave Oven.
Page 10: Installation And Connection
Installation and connection If your AC outlet is not grounded, it is the Examine your microwave oven personal responsibility of the customer to Unpack the oven, remove all packing have it replaced with a properly grounded material, and examine the oven for any wall socket damage such as dents, broken door latches or cracks in the door.
Page 11: Important Safety Instructions
Important safety instructions Only allow children to use the oven „ WARNING! without supervision when adequate Important safety instructions instructions have been given so that the child is able to use the oven in a The door seals and seal areas should safe way and understands the hazards be cleaned with a damp cloth The of improper use...
Page 12 Important safety instructions hot Care should be taken to avoid Use of your oven touching the heating elements inside Do not use the oven for any reason the oven other than the preparation of food This oven is specifically designed to heat or cook food Do not use this „...
Page 13 Important safety instructions Roller ring „ Important! The roller ring and the oven floor If the recommended cooking times are should be cleaned frequently to exceeded the food will be spoiled and prevent noise and build-up of in extreme circumstances could catch remaining food fire and possibly damage the interior of the oven.
Page 14 Important safety instructions Liquids Utensils/foil When heating liquids, eg soup, Do not heat any closed cans or bottles „ „ sauces and beverages in your because they might explode microwave oven, overheating the liquid beyond boiling point can occur Metal containers or dishes with „...
Page 15: Outline Diagram 13
Outline diagram Door release Control panel Power supply cord Press to open the door When you open the oven door during cooking, Plug Identification Label the cooking is stopped temporarily without clearing earlier made settings Glass tray Roller ring The cooking is resumed as soon Grill Elements as the door is closed and Start button pressed...
Page 16: Control Panel Nn-Gd452W/Nn-Gd462M * 14
Control panel NN-GD452W/NN-GD462M * Display window Microwave power levels button Grill button Turbo defrost programs button Auto sensor reheat programs button Auto sensor cook vegetables / fish programs button Auto sensor cook rice / pasta programs button Auto weight Panacrunch...
Page 17: Controls And Operation Procedure
Controls and operation procedure Word Prompting: Word Prompting Plug-in “88:88” Press "Francais" in French Press "italiano" in italian Press "deutsch" in german Press "nederlands" in dutch Press "espanol" in spanish Press "polski" in polish Press "cesky" in czech Press "english" in english These models have a unique function “Word Prompting”...
Page 18: Setting The Clock 16
Setting the clock When the oven is first plugged in “88:88” appears in display window. Press Clock once Turn Time / Weight Dial. Press Clock A colon starts to blink Enter the time by turning the Time/ The colon stops blinking Weight dial.
Page 19: Microwave Cooking And Defrosting 17
Microwave cooking and defrosting The glass tray must always be in position when using the oven. Press Microwave Power. Set the cooking time Press Start Button. Select desired power level using the Time/Weight The cooking program Dial (1000 W power: up to will count down 30 minutes Other powers: up to 90 minutes)...
Page 20: Grilling 18
Grilling The glass turntable must always be in position when using the oven. Press Grill to select level Set Time Press Start Select Cooking time by The time counts 1 press Grill 1 1100 W (high) turning the Time/Weight Dial down in the display 2 presses Grill 2...
Page 21: Combination Cooking 19
Combination cooking Select desired power level Set Time Press Start Button Select cooking time by The time counts 1 Press Grill 1 1100 W (high) 1 Press Medium 600 Watts turning Time/Weight Dial down in the display 2 Presses Grill 2 800 W (medium) 2 Presses 440 Watts Time can be set up to...
Page 22: Using The Timer 20
Using the timer Delay start cooking By using the Timer, you are able to program Delay Start cooking. example Press Timer. Set the delay time by Set the desired cooking Press Start turning the Time/ Weight program and cooking time. Dial (up to 9 hours) „...
Page 23: Multi-Stage Cooking21
Multi-stage cooking 2 or 3 stage cooking Example: Press Press Set the cooking Set the cooking Press Start. Microwave Microwave time using the time using the The cooking program Power. Select Power. Select Time/Weight Dial. Time/Weight Dial. will start and the time desired power desired power in the display will...
Page 24: Using The Memory Function 22
Using the memory function This feature allows you to pre-program your oven for a regular reheating or cooking task (for instance the manual Preheating of the Panacrunch pan). You are able to pre-program your oven for a specific power level and time that is convenient for you. You can only pre-program one memory task with this oven.
Page 25: Turbo Defrost 23
Turbo defrost With this feature you can defrost frozen food according to the weight. Select the desired Turbo Defrost Set the weight of the frozen food Press Start program by using the Time/Weight Dial. Remember to stir or 1 Press Small Pieces Turning the dial slowly will count turn the food during up in 10 g steps Turning the dial...
Page 26: Auto Sensor Programs
Auto sensor programs A variety of food may be cooked without having to enter the cooking time, weight or the power level. e.g. Select the desired Press Start Button. Auto Sensor Program. „ Plus/Minus Control: Preferences for degree of cooking vary for each individual After having used Auto Sensor Programs a few times, you may decide you would prefer your food cooked to a different degree of cooking By using Plus/Minus control, the programs can be adjusted to cook food for a longer or shorter time Press...
Page 27 Auto sensor programs Program Weight Accessories Instructions For reheating chilled and ambient soup. Place soup into a suitable sized container 4. SOUP Foods should be at refrigerator temperature approx +5 °C or room temperature Cover with cling film. Pierce cling film with a sharp 150 g - 1000 g knife once in the centre and four times around the edge Press auto sensor reheat...
Page 28 Auto sensor programs Program Weight Accessories Instructions 8. FROZEN To cook frozen vegetables. Place vegetables into a suitable sized container VEGETABLES Sprinkle with 1-3 tbsp water If cooking vegetables with high water content, such as spinach or tomatoes, do not add water 200 g - 1000 g Cover with cling film.
Page 29: Auto Weight Panacrunch Programs 27
Auto weight Panacrunch programs Select the desired Press Start to After pre-heating Press Start program and place preheat the Pizza beeps sound. Place Button the Pizza pan in the pan. the food in the pan, oven directly on the set weight. glass tray.
Page 30: Panacrunch Pan 28
(see page 22 EN) quiches, pies, breaded products just as a conventional oven Your Panasonic Always place the pan in the centre of Panacrunch Pan works in three ways: the glass tray and ensure it does...
Page 31: Questions And Answers 29
Questions and answers may be used If in a hurry, cook food Why won’t my oven turn on? manually by selecting the correct When the oven does not turn on, cooking mode and cooking time check the following: yourself Is the oven plugged in securely? Remove the plug from the outlet, wait 10 seconds and reinsert Can I use a conventional oven...
Page 32: Care Of Your Oven 30
Care of your oven Turn the oven off before cleaning The roller ring and oven cavity floor should be cleaned regularly to avoid Clean the inside of the oven, door excessive noise Simply wipe the seals and door seal areas regularly bottom surface of the oven with mild When food splatters or spilled liquids detergent and hot water then dry with...
Page 33: Technical Specifications 31
Information on Disposal for Users of Waste Electrical Manufactured by: Panasonic Appliances & Electronic Equipment Microwave Oven (Shanghai) Co.,Ltd, 888, 898 Longdong Road, Pudong, (private households) Shanghai, 201203, China.
