Next Maisie Cabin Bed Assembly Instructions Manual

658046

Advertisement

Quick Links

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CARE

Tools Needed

Helpline

If you have any problems with this product or requi re
any replacement ttings please contact Customer
Services Tel: 0333 777 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to
be faulty. Should you need to return the unassemble d product, please repack in the original packaging.

IMPORTANT

• We suggest you spend a short time reading through this lea et and then follow the simple step-by-st ep instructions.
• Carefully check that you have all parts before be ginning assembly.
• Keep ttings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protec t the surfaces during assembly.
• A minimum of four persons is required to assemble this product.
• WARNING: Children can become trapped between the bed and the wall. To avoid risk of serious injury t he distance
between the top safety barrier and the wall shall not exceed 75mm or shall be more than 230mm.
• Ensure not to leave items such as ropes, strings, cords, harnesses and belts attached to or hung to the bunk/high bed
due to the risk of strangulation.
• Do not use this item if any structual part is broken or missing.

PRODUCT INFORMATION

• Made from chipboard & MDF with a PVC foil nish.
• A mattress measuring 90 x 190cm is intended for u se with this bed .Maximum mattress height should be 17cm,
There is a mark on the bed to show this height.
• Made in China.

CARE INSTRUCTIONS

• For general cleaning, periodically dust with a so
• Do not rub or scrub the surface when cleaning.
• Do not use furniture polish.
• Any spills should be removed immediately with a s oft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coa sters when items are placed on the surfaces, to prevent scratching
or damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or clo se to any heat sources as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the oor a s this will cause damage to the joints.
• All assembly xings should always be tightened properly and periodically check all xings and tigh ten if necessary.
ASSEMBLY INSTRUCTIONS
ft cloth.
FULLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maisie Cabin Bed and is the answer not in the manual?

Questions and answers

Summary of Contents for Next Maisie Cabin Bed

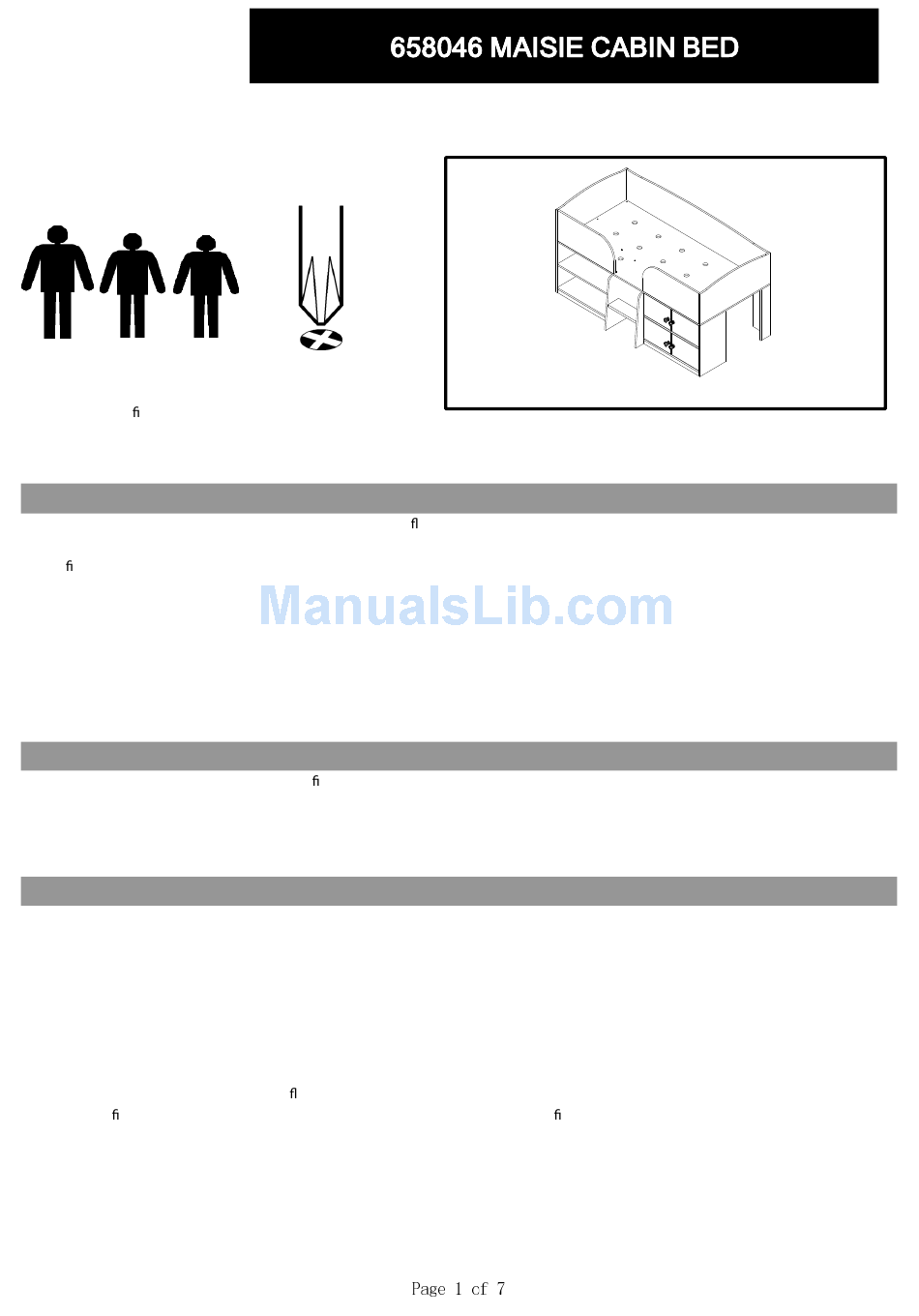

  • Page 1 ASSEMBLY INSTRUCTIONS IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CARE FULLY Tools Needed Helpline If you have any problems with this product or requi re any replacement ttings please contact Customer Services Tel: 0333 777 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
  • Page 2 FITTINGS PARTS STEP ONE 1. Glue 4 x wooden dowels (A) into panel 17. 2. Attach panels 16 & 18 to panel 17. 3. Insert 4 x nuts (F) into panel 17 . 4. Insert 4 x bolts (G) into panels 16 & 18 and tighten with an Allen key (E).
  • Page 3 STEP TWO 1.Attach panel 19 to panels 16 &18 with 4 x screws (D) and tighten with an Allen key (E). STEP THREE 1. Glue(B) 8 x wooden dowels (A) into panels 10 & 12. 2. Attach 2 x panel 13 to panels 10 & 12. 3.
  • Page 4 STEP FIVE 1. Insert 8 x screws (D) through panel 19 to panels 9 ,10 , 11 & 12 and tighten with an Allen key (E). STEP SIX 1. Glue(B) 8 x wooden dowels (A) into panels 11,12 & 19. 2.
  • Page 5 STEP EIGHT 1. Attach panels 7 & 21 to panel 3 with x screws (D) and tighten with Allen key (E). 2. Insert 2 x cambolts (Q) through panel 3 to panels 7 & 3. Insert 2 x camlocks (M) into panels 7 & 21 and tighten with a screwdriver.
  • Page 6 STEP ELEVEN 1. Glue(B) 11 x wooden dowels (A) into panel 3. 2. Carefully attach the assembly frame & panel 4 on panel 3 by three person as shown. 3. Insert x nuts (F) into panels 4, 5 & 6. Note:The mark face of nut need to be facing towards the outside .
  • Page 7 STEP FOURTEEN 1.Remove all numbered stickers from the constructed product before allowing a child to use. Next Retail Ltd, Desford Road, Leicester, LE19 4AT Next Retail Ltd, Desford Road, Leicester, LE19 4AT P a g e 7 o f 7...
