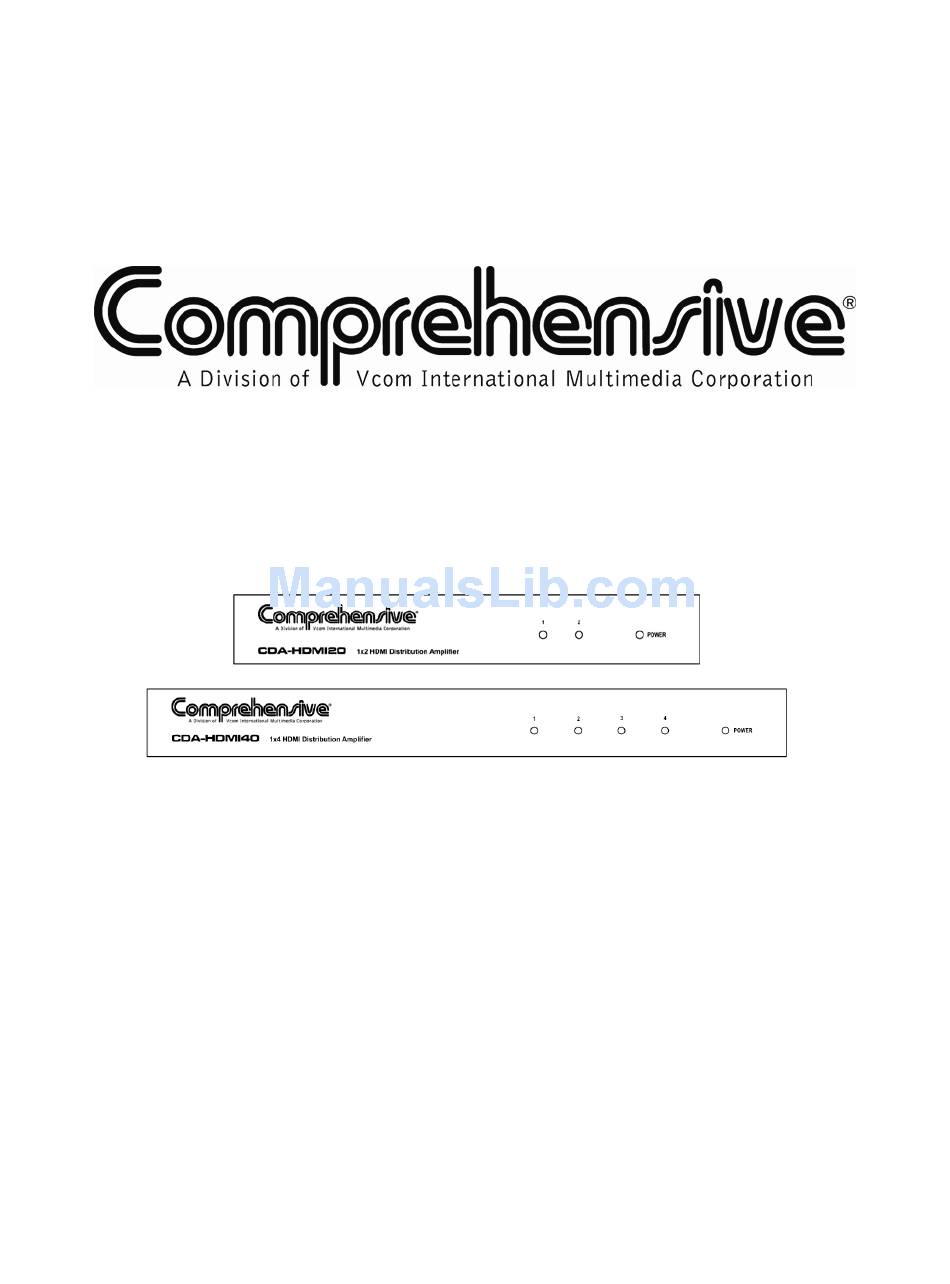

- Page 1 Instruction Manual CDA-HDMI20 & CDA-HDMI40 HDMI Distribution Amplifiers...
-
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Installation of Mounting Components Troubleshooting Limited Warranty Regulatory Compliance... -
Page 4: Introduction
Every effort has been made to ensure that this product is free of errors. Comprehensive cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly. -
Page 5: Specifications
Maximum Bandwidth 1.65GHz HDMI Compliance Version 1.2a I/O Connectors Input HDMI, TMDS x1 (All models) Outputs CDA-HDMI20: HDMI, TMDS x2 CDA-HDMI40: HDMI, TMDS x4 Mechanical Dimensions (H-W-D) CDA-HDMI20 1.1x7.6x3.6” (28x192x90.4mm) CDA-HDMI40 1.1x10.4x6” (28x264x153mm) Weight CDA-HDMI20 1.2 lbs (550g) CDA-HDMI40 2.4 lbs (1080g) -
Page 6: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or Comprehensive immediately. Have the Model Number, Serial Number and Invoice available for reference when you call. -
Page 7: Connecting The Hardware
Distribution Amplifier CDA-HDMI40 Distribution Amplifier The Comprehensive CDA series HDMI Distribution Amplifiers are functionally identical with the exception of the number of outputs. All have a single HDMI input and a +5 VDC power input socket. These connectors as well as the outputs connectors are arrayed on the rear panel. -
Page 8: Operating The Unit
OPERATING THE UNIT To use any of the Comprehensive CDA series HDMI Distribution Amplifiers, connect an HDMI approved cable, no more than 50 feet in length, from the HDMI source to the input of the DA. Next, connect the outputs of the DA to their destination devices using HDMI approved cables no more than 50 feet long.*... -
Page 9: Installation Of Mounting Components
INSTALLATION OF MOUNTING COMPONENTS The Comprehensive CDA-HDMI20 and CDA-HDMI40 HDMI DAs can be mounted on any flat surface using the included mounting kit. Mounting the CDA-HDMI20 or CDA-HDMI40 HDMI DAs Attach the two “L” shaped mounting brackets to the product using the furnished hardware and then attach the combined assembly to the desired location. -
Page 10: Limited Warranty
Comprehensive at 800-526-0242 or via Fax at 201-814-0510. LIMITED WARRANTY Comprehensive warrants that for a period of 2 years from date of original purchase, our products will be free from defects in material and workmanship under normal use and service. -
Page 11: Regulatory Compliance
REGULATORY COMPLIANCE The Comprehensive CDA series Distribution Amplifiers have been tested for compliance with appropriate FCC and CE rules and regulations and are also RoHS compliant. The Power Adaptor/Supplies have been tested for compliance with UL, CE, CEC and CSA rules and regulations and are also RoHS compliant. - Page 12 Comprehensive 55 Ruta Court South Hackensack, NJ 07606 Phone: 800-526-0242 Fax: 201-814-0510...
