Music and video downloaded from iTunes is not available for this device

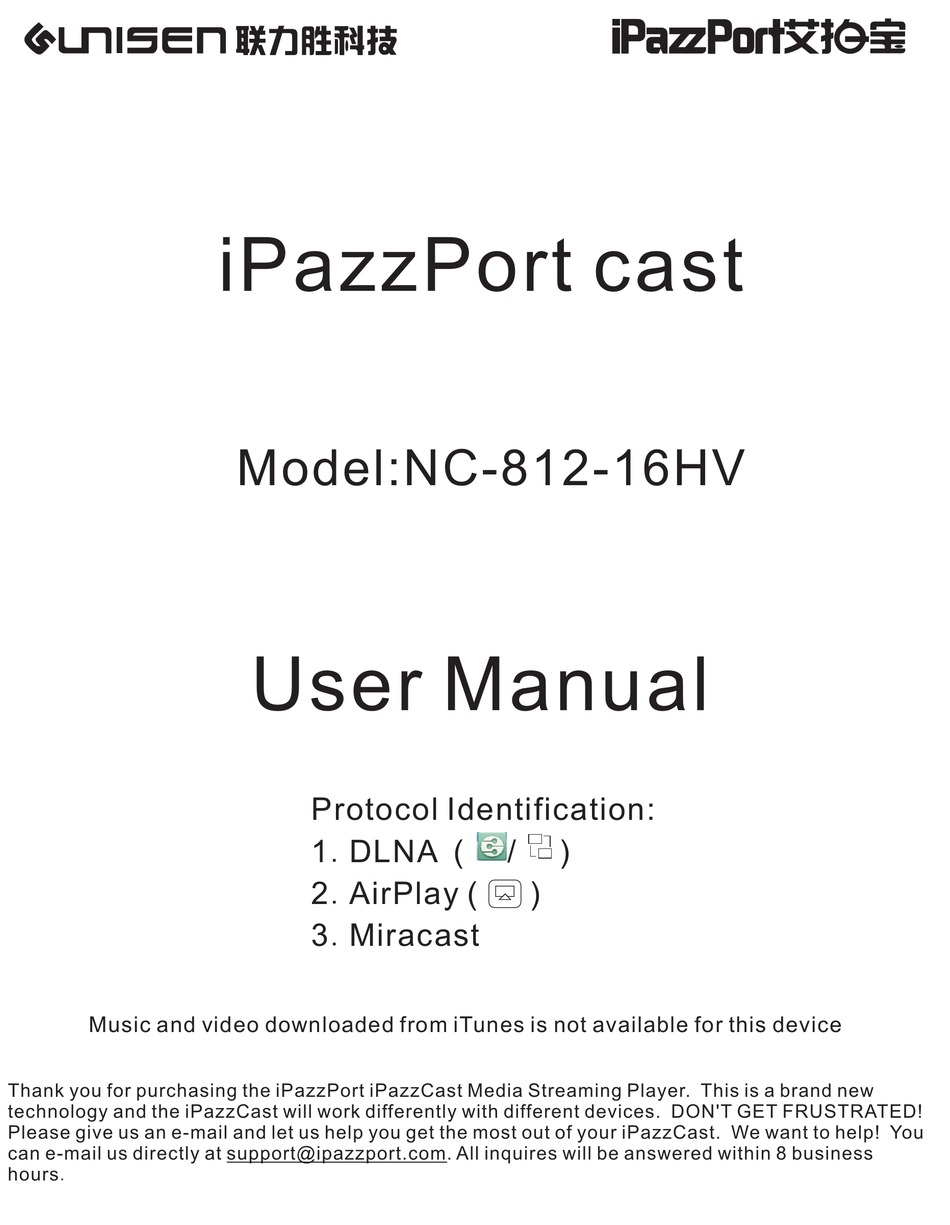

Thank you for purchasing the iPazzPort iPazzCast Media Streaming Player. This is a brand new
technology and the iPazzCast will work differently with different devices. DON'T GET FRUSTRATED!
Please give us an e-mail and let us help you get the most out of your iPazzCast. We want to help! You
can e-mail us directly at support@ipazzport.com. All inquires will be answered within 8 business
hours.
联力胜科技
iPazzPort cast
Model:NC-812-16HV

User Manual

Protocol Identification:
1.DLNA (
2.AirPlay (
3.Miracast
/
)
)
艾
宝

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NC-812-16HV and is the answer not in the manual?

Questions and answers

Related Manuals for iPazzPort NC-812-16HV

Summary of Contents for iPazzPort NC-812-16HV

  • Page 1: User Manual

    Music and video downloaded from iTunes is not available for this device Thank you for purchasing the iPazzPort iPazzCast Media Streaming Player. This is a brand new technology and the iPazzCast will work differently with different devices. DON'T GET FRUSTRATED! Please give us an e-mail and let us help you get the most out of your iPazzCast.
  • Page 2 Screen become a All Media Sharing Center by Smart phone or tablet you already own. The iPazzPort Cast is so tiny, so portable, don't leave it at home. You need it for sharing your favourite Video or lovely photos with family and friends.
  • Page 3 VGA Port Audio out Mini USB-Power HDMI Port For switch mode between DLNA and M iracast Long press the restart...

  • Page 4: Ipazzport Cast

    2.iPazzPort cast iPazzPort cast Table PC Smart phone...
  • Page 5 Power Adapter ( Recommended) 1.Hold the iPazzPort Cast, then plug in the USB power cord from the power adapter which plug in with either 210V AC or 110V AC power source. 2.The blue power light next to the mini USB socket should be lit up.

  • Page 6: Android Phone

    Use your cell phone or computer projection file in the meeting or training, please according to following steps. 1.Android phone Turn on your phone,tap “settings” -->> Touch“Screen Mirroring” -->> Open“Screen Mirroring” -->> connect“iPazzPort-XXXXXX” -->> connected successful iPazzPort-AF1EB8 iPazzPort-AF1EB8 Android screen...
  • Page 7 Automatic search advice,click“iPazzPort- XXXXXX” -->> connected successful Computer screen Computer iPazzPort_Cast_33D808 screen iPazzPort_Cast_33D808 3.iPhone Go to settings,WiFi connected “iPazzPort-XXXXXX” -->> Turn on your iPhone, Open the taskbar -->> Click AirPlay icon -->> Choose“iPazzPort- XXXXXX ”, turn on“Mirroring”,click “Done” -->> connected successful...

  • Page 8: Connect Wifi

    Status: 192.168.49.1 Local IPO: Open Wi-Fi and connect AP SSID: 'iPazzPort-AF1EB8' (password: 12345678)or'12345678'. Local IP1: And then open web browser on your device and visit: http://192.168.49.1/index.html when conneted to 'iPazzPort-AF1EB8' iPazzPort-AF1EB8 iPazzPort-AF1EB8 iPhone screen iPazzPort-AF1EB8 5.3.Connected 5.1.Go to settings,displays 5.2.Enter password Successfully “12345678”Press...
  • Page 9 192.168.49.1 Local IPO: Open Wi-Fi and connect AP SSID: 'iPazzPort-AF1EB8' (password: 12345678)or'12345678'. Local IP1: And then open web browser on your device and visit: http://192.168.49.1/index.html when conneted to 'iPazzPort-AF1EB8' iPhone screen 5.9.Connected 5.8.Input password 5.7.Choose the WiFi router Successfully ---Click connect...
  • Page 10 Local IPO : Open Wi-Fi and connect AP SSID : 'iPazzPort-AF1EB8' (password: 12345678)or'12345678'. Local IP1 : And then open web browser on your device and visit: http://192.168.49.1/index.html when conneted to 'iPazzPort-AF1EB8' iPazzPort-AF1EB8 iPhone screen 6.1 .Enter Photos, 6.3.Choose “iPazzPort-XXXXXX”. 6.2.Choose AirPlay icon.
  • Page 11 The iPazzPort cast screen iPhone screen 6.4.success...

  • Page 12: Signal Confirmation

    7.1.Test the signal strength of Wi-Fi Router. 7.1.1 Download “WiFi Analyzer” in App Store to your phone or tablet. .1.2 Place your phone or tablet at the position,where the “iPazzPort Cast” will be placed. .1.3 Run “WiFi Analyzer” to confirm the Wi-Fi Router signal strength is -60dB or above as show below.
  • Page 13 .4 Run “WiFi Analyzer”to confirm the receiving signal strength is -60dB or above, as show below. .5 If the signal is low, please move “iPazzPort Cast” or connect to HD extented cable.Please make sure to no block the Wi-Fi signal.
