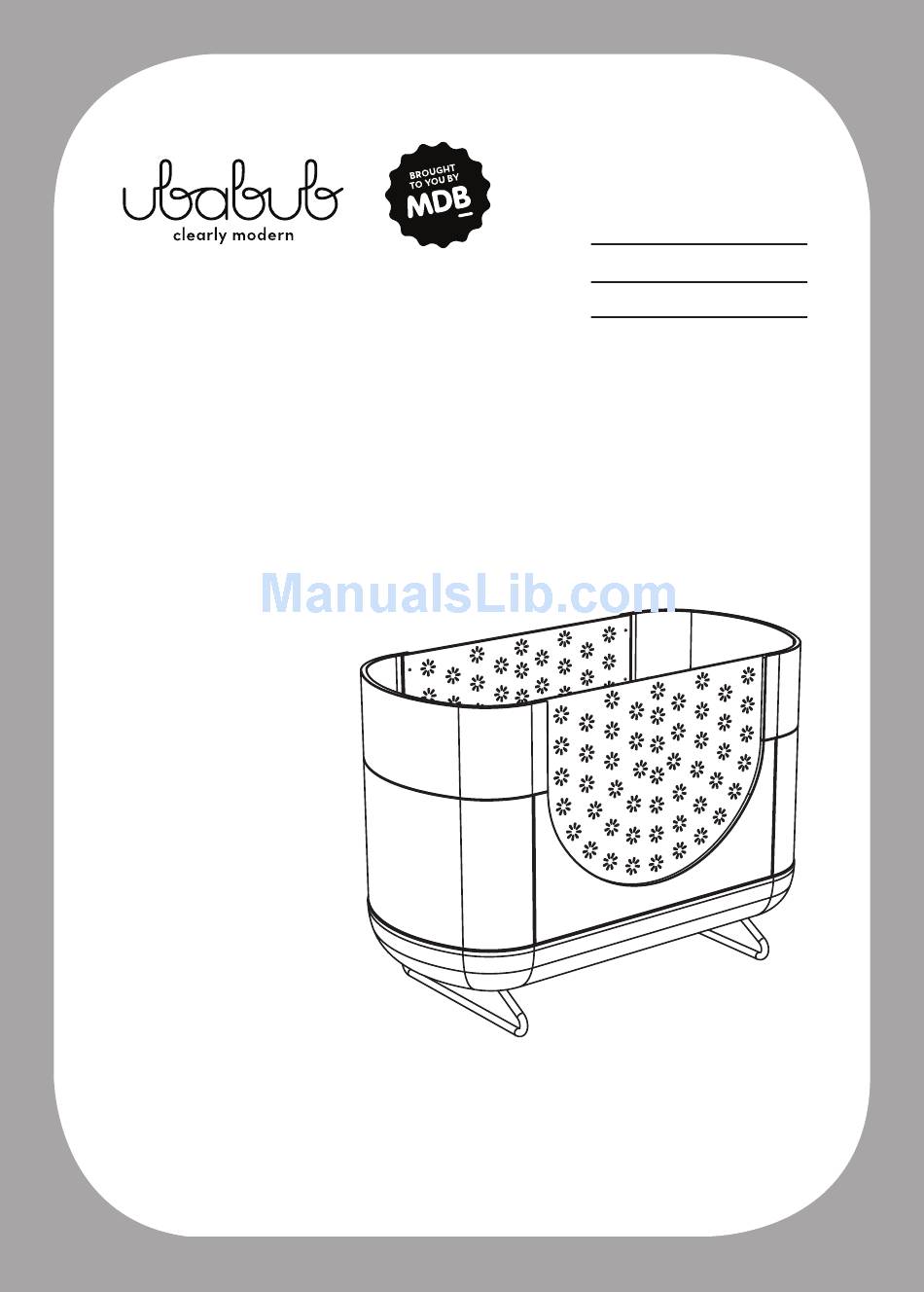

- Page 1 Crib u0400 Product Code: I nstruc tIo ns revised 040313...
-
Page 2: Table Of Contents
– aLLEn KEy (SUPPLIED) contents Congratulations and Contents & Hardware thank you for purchasing Care & Maintenance an Ubabub product. A Base assembly With our entire line of B Side panel assembly clearly modern nursery c Side panel base position... -
Page 3: Contents & Hardware
contents 1 x Plastic Base 1 x Mattress Base 1 x Mattress 2 x Upper Mattress Support 2 x acrylic Side 2 x U-Shaped 2 x Lower 2 x Upper 2 x Feet Panel Sides Curved Curved Hardware 10 x 55mm bolt 2 x 60mm bolt 6 x 30mm 4 x 20mm... -
Page 4: Care & Maintenance
WARNING: Failure to follow these warnings and the assembly instructions could result in serious injury or death. READ ALL INSTRUCTIONS BEFORE ASSEMBLING CRIB. KEEP THE MANUAL FOR FUTURE USE. WARNING: Parents should ensure a safe environment for the child by checking regularly, before placing the child in the product, that every component is properly and securely in place. - Page 5 WARNING: Failure to follow these warnings and the instructions could result in serious injury or death. ● The product, including side rails, must be fully erected prior to use. ● Strings can cause strangulation! Never place items with a string around a child’s neck such as hood strings or pacifier cords.
- Page 6 Storage: • Solid woods exchange moisture with the air adjusting to major changes in room temperature and humidity. Therefore, it is best to place your furniture away from heating or air- conditioning vents. • Sunlight is not friendly to solid wood furniture and prolonged direct exposure to harsh sunlight can discolor the finish.
- Page 7 ONE YEAR LIMITED WARRANTY: We will replace any missing parts at the time of purchase or any defective item within a one year period from the date of original purchase. Please keep your receipt so that we may process your warranty request. This warranty only covers new units with original packaging and ownership, and is not trans- ferable.
-
Page 8: A Base Assembly
Base assembly step 1 Clear floor space. step 2 Lay Plastic Base upside down on a flat surface. step 3 Place foot plate into recess area as shown in diagram. step 4 Screw in four 10mm length bolts to secure base. Please note: Do not over- tighten. -
Page 9: B Side Panel Assembly
side panel assembly step 1 Clear floor space. step 2 Select U-Shaped Side Panel, place flat on ground with recessed edge facing step 3 Select an acrylic side panel and with the countersunk holes facing up, place into U-Shaped Side Panel, aligning bolt holes. step 4 Insert five pan head bolts using phillips head screw driver. -
Page 10: Side Panel Base Position
side panel and base position step 1 Select constructed side panel from section B and ensure side with bolt holes faces towards the inner of the crib. step 2 rest side on edge of plastic base, aligning bolt holes. step 3 Starting with the center hole, using 55mm bolts attach side to base – finger tighten only. -
Page 11: D End Panel Position
End panels position step 1 Insert Support Pins into the side panels as per the diagram. step 2 Select Lower Curved End, using the edge of the plastic base as a guide, slide Curved End horizontally until it joins tightly against side panel. step 3 Starting with the center hole, using 60mm bolts attach end to base –... -
Page 12: E Lower Mattress Position
Lower mattress position step 1 Determine if you need your mattress at the upper or lower position. step 2 If lower position is required continue to Step 3, if upper position is required turn to Section F. step 3 Select mattress base, using two adults lower base into position. It will rest on inside edge of Plastic Base. -
Page 13: F Upper Mattress Position
upper mattress position step 1 Select one of the two upper mattress support braces. step 2 align upper mattress support to bolt holes in inside of Lower Curved End. step 3 Starting with the center hole, use 30mm length bolt to attach, finger tighten. step 4 Insert left and right bolts, finger tighten. -
Page 14: G Mattress Position
Mattress position step 1 Select mattress base, using two adults lower base into position. It will rest on the upper mattress support brace. step 2 Screw in 20mm length bolts to secure base. Please note: Do not over-tighten. step 3 align mattress base with bolt holes and attach one bolt at each end. Finger tighten. -
Page 15: H Upper End Panel Position
upper ends position step 1 Select Upper Curved End. step 2 align inside recessed edges with acrylic, lower vertically onto Connecting Pins. step 3 Using four Pan Head Bolts attach acrylic side to Upper Curved End. step 4 Tighten all using screw driver. Please note: Do not over-tighten. step 5 Insert Locking Cams on Upper Curved Ends. -
Page 16: I Finished Assembly
Finished assembly step 1 Clean all surfaces. step 2 Install mattress. KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. Recheck all screws and bolts to be sure they are fastened securely. Do not overtighten. Before using your crib, please read all cautionary statements on the insert sheet.
