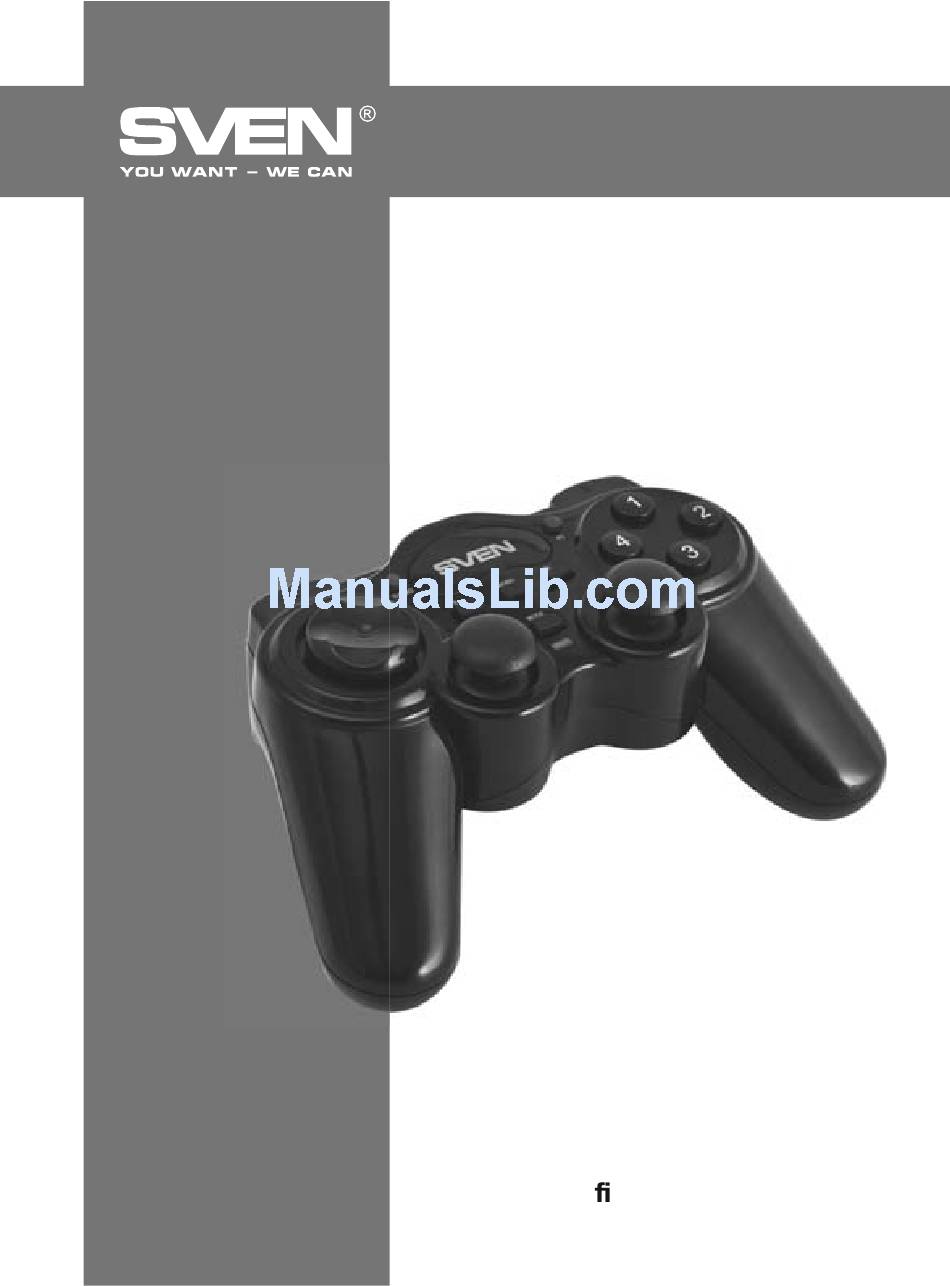

- Page 1 Wireless Gamepad OPERATION MANUAL combaT www.sven.
- Page 2 Please read this Operation Manual before using the unit and retain this Operation Manual in a safe place for future reference. COPYRIGHT © 2014. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders.
-
Page 3: Safety Precautions

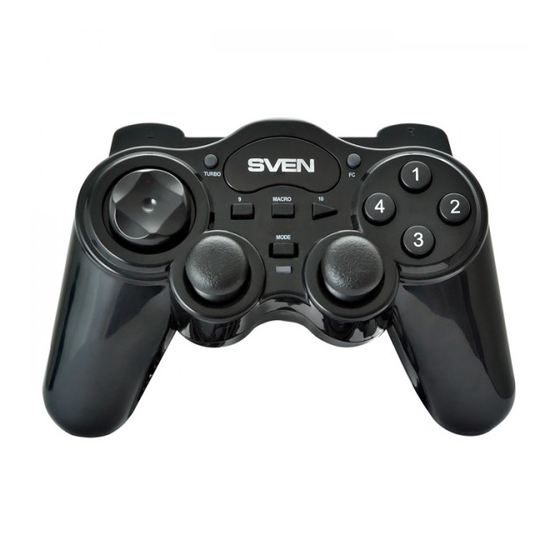

Wireless Gamepad 1. DESCRIPTION COMBAT Wireless Gamepad can be used in di erent games such as simulators, arcades, shooter games, etc. Vibration feedback imparts a feeling of realistic experience during games. Ergonomic construction of COMBAT enhances accuracy of its operation during games. - Page 4 Operation Manual 6. DESCRIPTION OF THE CONCTRUCTION a D-pad b TURBO: turbo mode on/o switch c Button 9 d MACRO: reprogramming of buttons e Button10 f FC: button for connecting the gamepad to the receiver g Buttons 1–4 h Left joystick (button 11)
- Page 5 Wireless Gamepad Fig. 3. Bottom view Installing batteries • Open the cover t of the battery compart- ment r. • Install AAA type batteries q into the battery compartment following their polarity. • Close the cover of the battery compartment. Note! Always install a set of the same new batteries.
-
Page 6: Connection And Installation
Operation Manual 7. CONNECTION AND INSTALLATION After installation of batteries connect the 2.4GHz receiver via the USB cable to an available USB port of your PC. After connecting to your PC, the device is automatically detected as a game controller and is fully ready for use. - Page 7 Wireless Gamepad Fig. 6 • Enter Calibration Function (Fig. 6) to calibrate all four axes. • Enter Vibration Test (see Fig. 7) to test and set Vibration Feedback function: • increase or reduce vibration strength by moving the cursor. For example: vibration strength is 85% in Fig.
- Page 8 Operation Manual Fig. 7 • Switching between modes The device can work in the analog and digital modes. The modes are switched with the MODE buttonj. In the analog mode (red LED) all 4 axes and 12 buttons are accessible, in the digital mode (LED is o ) 2 axes and 10 buttons are accessible.
-
Page 9: Troubleshooting
Wireless Gamepad • TURBO function (continuous shooting) The Turbo function is designed to imitate multiple pressing with one-time pressing and holding of any button. Press any button from 1 to 12 to activate the function, then, hold it and press the TURBO button b . - Page 10 , 427447. « », 48310, , 15. Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China. ® Registered Trademark of Oy SVEN combaT Scandinavia Ltd.
