Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or office for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
To register your fan, please visit:
www.HunterFan.com/register
Save your receipt for proof of purchase.

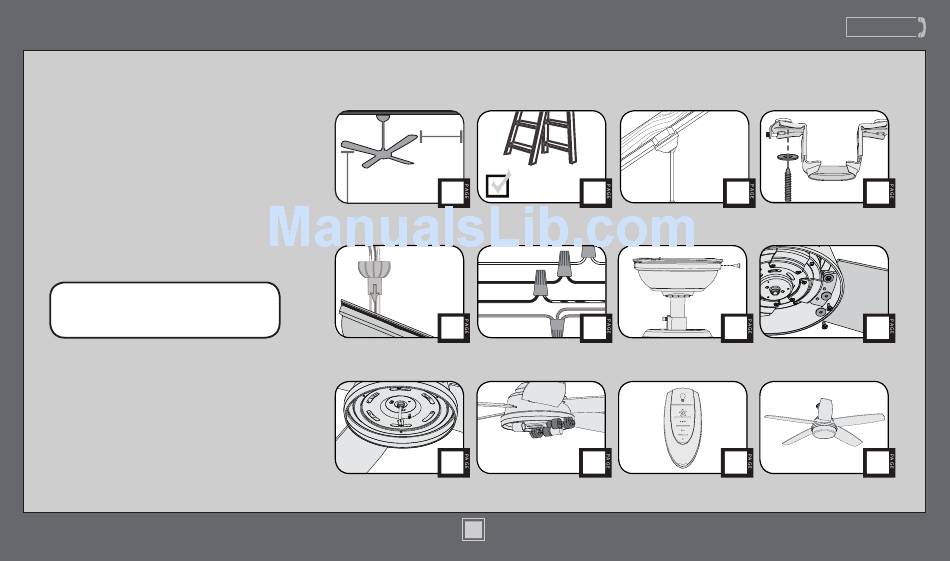

What to Expect with
Your Installation
Tools Needed
30 inches
7 feet
2
Downrod
6
Switch Housing
Light Kit
13
1
M3601-01 • 03/10/16 • © 2016 Hunter Fan Company
Mounting Options
Ladder
3
Wiring
Canopy
9
Operation,
Maintenance & Cleaning
14
www.HunterFan.com
1.888.830.1326
Ceiling Bracket
4
5
Blades
11
12
Troubleshooting
?
?
?
16
19
Advertisement
Table of Contents
Related Manuals for Hunter Kensington
Summary of Contents for Hunter Kensington
- Page 1 To register your fan, please visit: www.HunterFan.com/register Save your receipt for proof of purchase. Operation, Switch Housing Light Kit Maintenance & Cleaning Troubleshooting M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
-
Page 2: What To Expect With Your Installation
0.45-30 MHz. This device complies with Part 18 of the FCC Rules. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company... -
Page 3: Tools Needed
The symbols can be used to identify Power Drill 9/64” Drill Bit the appropriate hardware for each step. Screwdrivers (optional) (optional) If mounting to a support structure, you will also need these tools. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company... -
Page 4: Mounting Options
You need BOTH You need ONLY a Longer a Longer Downrod & Downrod an Angled Mounting Kit *most common M3601-01 • 03/10/16 • © 2016 Hunter Fan Company... -
Page 5: Ceiling Bracket
To avoid possible electrical shock, before 1-888-830-1326. installing your fan, disconnect the power by turning off the circuit breakers to the outlet Refer to warning w.1 on pg. 2 box associated with the wall switch location. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company... - Page 6 Steps 1–5 to remove standard downrod pipe Longer Downrod for angled ceilings or ceilings 3 m / 10 ft. or higher Shorter Downrod for fans installed close to ceiling Steps 6–10 to reassemble with new pipe M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
- Page 7 HAND TIGHTEN. the downrod. .95 cm 20 cm / 8 in. 3/8 in. If the setscrew is not tightened securely, the fan may fall. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
- Page 8 Put the wires and downrod through the canopy. Let the canopy sit loosely on top CANOPY OR WIRES. Place the downrod of the fan. ball into the slot in the ceiling bracket. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
- Page 9 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
- Page 10 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
- Page 11 Insert the two canopy screws lifted into place, the canopy fits into the screw holes are aligned. found in the hardware bag. the hanging bracket as shown. Note: Fan style may vary. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
- Page 12 Blades www.HunterFan.com 1.888.830.1326 Attach each blade to a blade iron using three blade washers, found in the hardware bag, and three blade assembly screws, found in the hardware bag. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
-
Page 13: Switch Housing
Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch housing fixture falling. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company... -
Page 14: Light Kit
Make sure the lower switch housing is securely attached to the upper switch housing. Failure to properly secure all three assembly screws could result in the light fixture falling. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company... - Page 15 Attach same type and wattage. the glass bowl to the light kit by twisting it clockwise until it snaps into place. Replacement bulbs may be available on www.costco.com. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
- Page 16 This product contains a button battery. If swallowed, it could cause severe injury or death in just two hours. Seek medical attention immediately. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
- Page 17 Dimming Mode: To enable dimming, High your remote must be set to Dimming Medium Mode. To toggle Dimming Mode on or off, hold down the Fan Off button while pressing the Light button twice. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
- Page 18 You will need to scratching. Cleaning products may remove the light kit glass to do so. damage the finishes. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
-
Page 19: Troubleshooting
“How do I properly install Transmitter only works when multiple remote-controlled fans?” held at close range for information on how to correct • Change battery. this issue. M3601-01 • 03/10/16 • © 2016 Hunter Fan Company...
