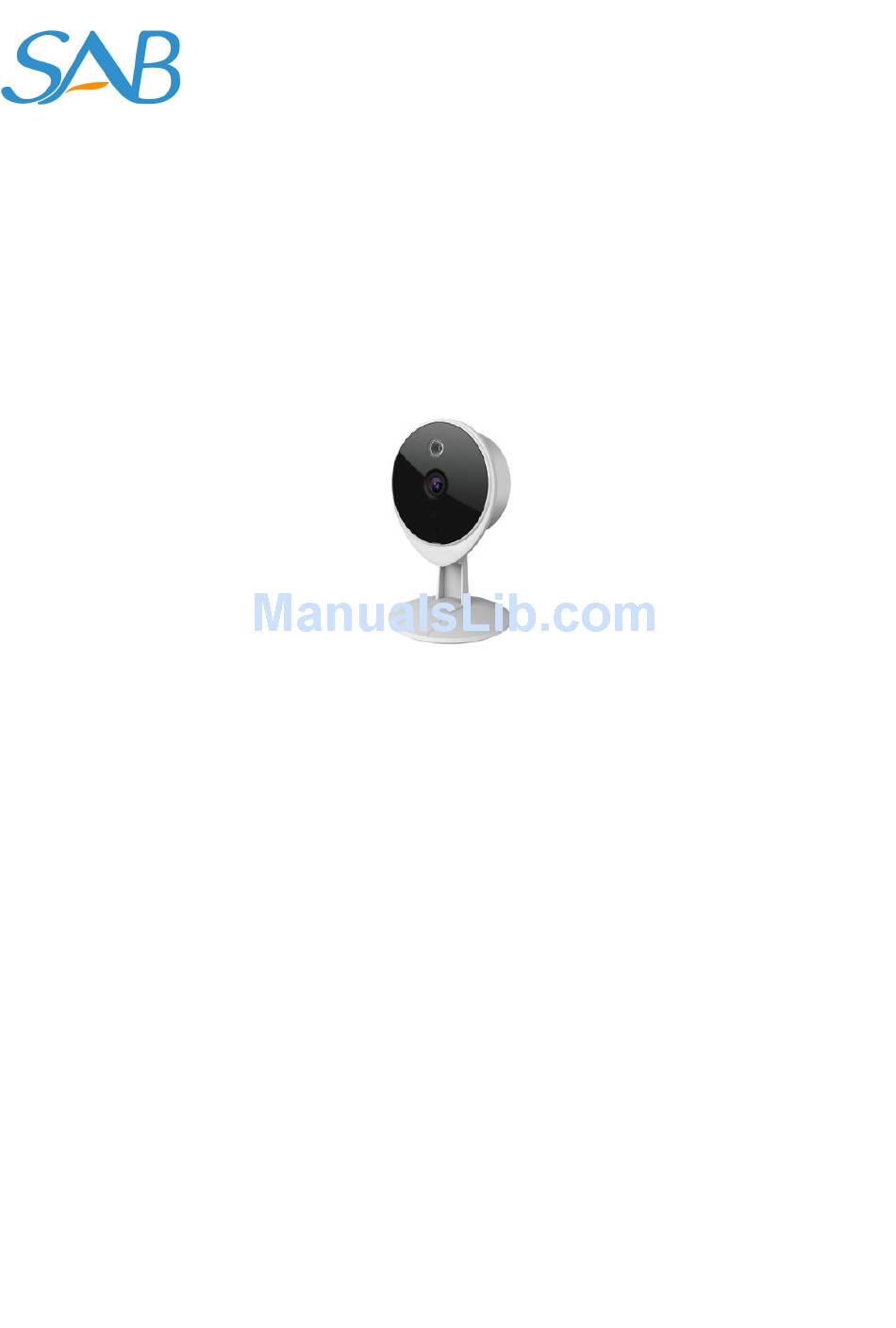

SAB SABIP1600 User Manual

Indoor hd wireless

Advertisement

Quick Links

User
Manual
User
Manual
(For Windows & Mac OS)
Indoor HD Wireless IP Camera
Model: SABIP1600
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SABIP1600 and is the answer not in the manual?

Questions and answers

Summary of Contents for SAB SABIP1600

  • Page 1 User Manual User Manual (For Windows & Mac OS) Indoor HD Wireless IP Camera Model: SABIP1600 V1.0...
  • Page 2: Table Of Contents

    Table Contents Table Contents Table Contents.................................. 1 Table Contents 1 Overview..................................3 1.1 Key Features................................3 1.2 Read Before Use..............................4 1.3 Package Contents...............................4 1.4 Physical Description............................4 1.5 SD Card................................5 1.6 Hardware Installation............................5 2 Access the IP Camera..............................6 2.1 Hardware Connection............................6 2.2 Access the Camera in LAN..........................7 2.3 Access the Camera in WAN..........................10 2.3.1 Static IP Addresses..........................
  • Page 3 4.3.9 Cloud Server............................52 4.4 Video................................... 53 4.4.1 Video Settings............................53 4.4.2 On Screen Display..........................54 4.4.3 Snapshot Settings..........................54 4.4.4 IR LED Schedule........................... 55 4.5 Detector................................56 4.5.1 Motion Detection............................56 4.5.2 Sound Detection............................ 59 4.6 Record.................................60 4.6.1 Storage Location............................60 4.6.2 Alarm Recording............................ 61 4.6.3 Local Alarm Recording.........................
  • Page 4: Overview

    1 Overview Indoor HD Wireless IP Camera with P2P is an integrated wireless IP Camera with a color CMOS sensor enabling viewing in High Definition resolution. It combines a high quality digital video camera, with a powerful web server, to bring clear video to your desktop and mobile devices from anywhere on your local network or over the Internet.
  • Page 5: Read Before Use

    Supports Sound Detection via FTP and Email  Providing free Android and iPhone APP for viewing live video  Support record schedule   Supports EZlink, Link to WiFi network easily 1.2 Read Before Use Please first verify that all contents received are complete according to the Package Contents listed below. Before the IP Camera is installed, please carefully read and follow the instructions in the Quick Installation Guide to avoid damage due to faulty assembly and installation.
  • Page 6: Sd Card

    1.5 SD Card NOTE: This camera supports SD Card and the max size of SD card must be under 32G. When you plug in the SD card during the camera work process, please reboot the camera again, or else the SD Card may be cannot work well.
  • Page 7: Access The Ip Camera

    2 Access the IP Camera This chapter explains how to access the camera through browser. 2.1 Hardware Connection 1. Connect the camera to the LAN network (Router or Switch) via network cable. 2. Connect the power adapter to the camera. 3.
  • Page 8: Access The Camera In Lan

    2.2 Access the Camera in LAN This camera supports HTTP and HTTPS protocols, you can access the camera by two ways. (1) http:// LAN IP + HTTP Port NO. The default HTTP port no is 88. Double click the Equipment Search Tool icon to run, and it should find the camera’s IP address automatically after you plug in the network cable.
  • Page 9 Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options. Next, click the Security tab, then click the Trusted sites button. Figure 2.3 For Firefox, you can add the trusted as the following way:...
  • Page 10 Tools ---- Options ---- Advanced --- View Certificates --- Servers Figure 2.4 Click View Certificates, and go to Servers option Figure 2.5 Go to Add Exception panel.
  • Page 11: Access The Camera In Wan

    Enter the camera’s url , here take https://192.168.8.129:443 for example . Click this button to add it . Figure 2.6 2.3 Access the Camera in WAN 2.3.1 Static IP Addresses Users who have static IP addresses do not need to set DDNS service settings for remote access. When you have finished connecting the camera using the LAN IP address and port forwarding, you can access the camera directly from the Internet using the WAN IP address and port number.
  • Page 12: Remote Access

    Figure 2.3 Access your IP Camera from the Internet You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and port number in your standard browser. For example, you would enter http:// 183.37.28.254:85 NOTES: Make sure port forwarding is successful.
  • Page 13 IP Address: Set this in the same subnet as your computer , or keep it as default. Subnet Mask: Keep it as default. Gateway and DNS Server: Set it to the IP address of your router. 2. Enable UPnP and DDNS in the camera’s settings page. We recommend you to use the DDNS by factory default.
  • Page 14 4. If the UPnP of the router has been enable, you do not need to perform following steps. Otherwise, you need to select one of the following methods to configure port forwarding on your router. For these steps, we will be using the TP-LINK brand wireless router as an example.
  • Page 15: Using The Vlc Player

    Input the port and IP address of your camera and click Save. Here you have finished the Port Forwarding setup. 5. Now you can access your IP camera by https://domain name: HTTPS port via the Internet. 2.4 Using the VLC player This camera supports RTSP streaming, here you can view the camera using VLC player.
  • Page 16 Password: Here I can enter one of the following URLs in the VLC. 1) rtsp://admin:123@192.168.1.11:88/videoMain 2) rtsp:// @192.168.1.11:88/videoMain 3) rtsp://:123@192.168.1.11:88/videoMain 4) rtsp://admin@192.168.1.11:88/videoMain Open the VLC, and go to MediaOpen Network Stream option, then enter the URL into VLC. Figure 2.9...
  • Page 17 Figure 2.10 Sometimes you may need to enter the user name and password again. Click OK and you can see the real-time preview. Figure 2.11...
  • Page 18: Ip Camera Connection To The Server

    Figure 2.12 If you cannot play the video in the VLC player, please check the port mapping. You can read Quick Installation Guide about How to configure port forwarding. NOTE: If you modify the camera’s username or password, you had better reboot the camera, or else the new username and password cannot take effect when you enter the authentication in the VLC.
  • Page 19: Login Window

    3.1 Login Window Figure 3.1 Please check the login window above, it was divided to 5 sections from no. 1 to 4. Section1 Enter the User name and password The default administrator username is admin with a blank password, please reset the password at first using and prevent unauthorized users login the camera.
  • Page 20: Setup Wizard

    Figure 3.2 Enter the New Username, New password and Confirm the password. Click Modify button, you will see the login page again. 3.3 Setup Wizard After logging in for the first time, you will be directed to the“Setup Wizard”automatically. Here you can set the basic parameters of camera, such as camera name, camera time, wireless settings, IP configuration.
  • Page 21 System Time: Select the time zone you need to set the date, time,format, etc. Figure 3.4 Wireless networks: Click Scan, find the SSID of your wireless router, select and enter the password. Figure 3.5 IP: Set the IP address of the camera. You could choose to obtain an IP automatically (DHCP) or set the IP address manually according to your needs.
  • Page 22: Surveillance Window

    Figure 3.6 NOTE: It takes about 1 minute to connect the camera to your router. 3.4 Surveillance Window Figure 3.7 Section1 LiveVideo / Settings/Playback buttons : Path to surveillance window. Click this button and back to the surveillance window : Path to Administrator Control Panel, Click it, and it will lead to Administrator Control Panel and...
  • Page 23 do advanced settings. : Click this button and back to the Playback panel to view the stored audio files stored in the SD Card. Section2 Multi-Device Window The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the same time. You can add other cameras in multi-device setting.
  • Page 24 Figure 3.8 After changing, please re-login the camera and you can see the modification. Section4 IR LED Lights Click Infra led and there are three modes to adjust the infrared led: Auto, Manual and Schedule. Auto: Select it and the camera will adjust the infra led (on or off) automatically. Manual: Select it and you can turn on or turn off the infrared led manually.
  • Page 25 Section6 If you have added time and camera name in the video, you can see it in the live window. Go to Settings ---Basic settings---Camera name panel, and you can change another device name. The default device name is anonymous. Go to Settings ---Basic settings---Camera time panel and adjust the device time.
  • Page 26 Figure 3.10 Keep ration: Select it and the camera will adjust the size of live window based on the the computer monitor automatically. Sometimes there is a black border around the video, please select Keep ration to get a better visual quality .
  • Page 27: Advanced Camera Settings

    Figure 3.12 Click the Screen PTZ button and put the mouse on the screen to indicate the camera move direction you prefer, press the left mouse, the camera will move to the corresponding direction. Loosen the mouse and stop moving. Press Esc button or double click right mouse and cancel the function. NOTE: For Mac OS, the plugin cannot support Onscreen Mouse Control, so you cannot allow to use it.
  • Page 28: Device Information

    4.1.1 Device Information Figure 4.1 Camera Model: The camera model no. Camera Name: The Device Name is a unique name that you can give to your device to help you identify it. Click Basic Settings and go to Camera name panel where you can change your camera name. The default device name is anonymous.
  • Page 29: Session Status

    Figure 4.2 4.1.3 Session Status Session status will display who and which IP is visiting the camera now. Figure 4.3 4.1.4 Log The log record shows who and which IP address accessed or logout the camera and when.
  • Page 30: Basic Settings

    Click the page number and go to the corresponding page to see more logs. Fill in one page number, click Go button and go to the corresponding page. Figure 4.4 Reboot the camera and clear the log records. 4.2 Basic Settings This section allows you to configure your camera’s Name, Time, Mail, User account and Multi-Device.
  • Page 31: User Accounts

    Figure 4.6 Time Zone: Select the time zone for your region from the drop-down menu. Sync with NTP server: Network Time Protocol will synchronize your camera with an Internet time server. Choose the one that is closest to your camera. Sync with PC: Select this option to synchronize the date and time of the Network Camera with your computer.
  • Page 32 Figure 4.7 How to change the password of administrator? Firstly, select the account of administrator, then select “Change password”, enter the old password and the new password, lastly click modify to take effect. Figure 4.8 How to add account ? Select one blank column, then enter the new user name, password and privilege, last click Add to take effect.
  • Page 33 Figure 4.9 Figure 4.10 Delete:Select the account which you want to delete, then click Delete button to take effect. NOTE: The default admin account cannot be deleted, but you can add other administrator users.
  • Page 34: Multi-Camera

    4.2.4 Multi-Camera If you want to view multi-surveillance screens on one window, you need to login one camera, and set it as the main device, and do Multi-Device Settings, add other cameras to the first one camera. Before you do multi-cams settings, you need to assign different port such as 81, 82, 83, 84, 85, 86, 87, 88 to the cameras if there is 8 cams installed.
  • Page 35 Figure 4.12 Back to Surveillance Windows, and click Four Windows option, you will see four cameras you added. Figure 4.13...
  • Page 36 Figure 4.14 Add cameras in WAN If you want to view all cameras via the internet(remote computer), you will need to add them using DDNS domain name. Firstly, make sure all of the cameras you added can be accessed through the internet. (Read How to configure DDNS settings) Login to the first camera using a DDNS domain name and port.
  • Page 37 Click Multi-Device Settings. Choose The 2nd Device. Fill in the 2nd camera’s name, DDNS domain name, port number. Enter user name and password and then choose Add. (Figure 4.19) Figure 4.16 1----- The camera model: MJ or H264. 2----- The 2nd camera’s name 3----- Fill in the 2nd camera’s DDNS host not LAN IP NOTE: The MJ series have the same HTTP Port no.
  • Page 38: Status Light

    Figure 4.17 Return to video window. You will see all of the cameras accessible through the internet. When you are away from home, you can use the first camera’s DDNS domain name and port to view all the cameras via internet. 4.2.5 Status Light You can enable or disable status light.
  • Page 39 Figure 4.18 Changing settings here is the same as using the Equipment Search Tool. It is recommended that you use the subnet mask, gateway and DNS server from your locally attached PC. If you don’t know the subnet mask, gateway and DNS server, you can check your computer’s local area connection as follows: ...
  • Page 40: Wireless Settings

    Set the same Subnet Mask and gateway of the camera with your PC. There are two DNS servers, you can set any of them. Same with gateway is also Figure 4.20 If you don’t know the DNS server, you can use the same settings as the Default Gateway. 4.3.2 Wireless Settings Step 1: Choose “Settings”...
  • Page 41 Click the Scan button to search for wireless networks. Click the Page number to see other wireless networks devices if there are more than 10. Figure 4.21 Step 2: Click the SSID (name of your router) in the list, the corresponding information related to your network, such as the name and the encryption, will be filled into the relevant fields automatically.
  • Page 42: Ddns

    The LAN IP address will disappear on the window of Equipment Search Tool when the camera is configuring a wireless connection. Wait about 1 minute, the camera should obtain a wireless connection, and the LAN IP of the camera will show again on the window of the Equipment Search Tool. The IP address may have changed after the camera receives a wireless connection;...
  • Page 43 Figure 4.23 Now you can use http:// Domain name + HTTP Port to access the camera via internet. Take hostname a33471.myipcamera.org and HTTP Port no. 800 for example, the accessing link of the camera via internet would be http:// a33471.myipcamera.org:8000 Restore DDNS to factory: If you have configured Third Party DDNS successfully, but you want to use Manufacturer’s DDNS again , here click this button and start Manufacturer’s DDNS Service.
  • Page 44 Figure 4.24 Click here to register Figure 4.25...
  • Page 45 Please register an account step by step according to instructions on www.no-ip.com After registration, please login your email which used to register. You will receive an email from website, please click the link to activate your ACCOUNT as indicated in email. Secondly: Login the link with the registered username and password to create your domain name.
  • Page 46 Figure 4.27 Please create the domain name step by step according to instructions on www.no-ip.com Step 2, DO DDNS Service Settings within the Camera Please set DDNS Settings within the camera by hostname, a user name and password you’ve got from www.no-ip.com Take hostname ycxgwp.no-ip.info, user name ipcamera, password ipcamera2012 for example.
  • Page 47: Upnp

    ③ Use domain name to access the camera via internet After the port forwarding is finished, you can use the domain name+ http no. to access the camera via internet. Take hostname ycxgwp.no-ip.info and http no. 2000 for example, the accessing link of the camera via internet would be http:// ycxgwp.no-ip.info:2000 4.3.4 UPnP Figure 4.29...
  • Page 48 Figure 4.31 Another way to change the HTTP port NO. Step 1: Open the Equipment Search Tool, select the camera you would like to change the port of, right click on the IP address, and click on ”Network Configuration”, this brings up the network configuration box as shown in Figure 4.35 and 4.36.
  • Page 49: Mail Settings

    Step 2: Enter the username and password of the Administrator (default username is admin with a blank password), and click “OK” to apply changes. Step 3: Wait around 10 seconds, you’ll see that the camera’s LAN IP address has changed. In our example it was changed to 2000, so we see http://192.168.1.110:2000 in Equipment Search Tool.
  • Page 50 Figure 4.35 1----- SMTP Server/ Port /Transport Layer Security Enter SMTP server for sender. SMTP port is usually set as 25. Some SMTP servers have their own port, such as 587 or 465, and Transport Layer Security usually is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS and SMTP Port must be set to 465 or 25 or 587, which port you choose should be decided by which Transport Layer Security you select.
  • Page 51: Ftp Settings

    Test result Figure 4.36 If the test success, you can see the Success behind the Test, at the same time the receivers will receive a test mail. If the test fails with one of the following errors after clicking Test, verify that the information you entered is correct and again select Test .
  • Page 52 Figure 4.37 Figure 4.38 FTP server: If your FTP server is located on the LAN. If you have an FTP server which you can access on the internet. Port: Default is port 21. If changed, external FTP client program must change the server connection port accordingly.
  • Page 53: P2P

    4.3.8 P2P Access the IP Camera by Smart Phone (Android or iOS operating system) First of all, you need to open the P2P function of the IP Camera at “Settings-->Network-->P2P”. Figure 4.39 4.3.9 Cloud Server Cloud Server: IP camera support dropbox which is network disk to store record files and images. You can upload the record files and images to dropbox from your IP camera.
  • Page 54: Video

    4.4 Video This section allows you to configure Video stream settings, On screen display and Snapshot settings. 4.4.1 Video Settings There are two ways to set the stream video settings. They are main stream video settings and sub stream video settings. Figure 4.41 Enhanced Night video Definition: The camera will automatically drop the frame to extend the recording time in the night.
  • Page 55: On Screen Display

    is large, that will lead to video can not play well. Frame Rate: Note that a larger frame size takes up more bandwidth. When the video format is 50Hz, the maximum frame rate is 25 fps. When the video format is 60Hz, the maximum frame rate is 30 fps. You should lower frame rate when the bandwidth is limited.
  • Page 56: Ir Led Schedule

    Figure 4.43 Manual snap Quality: Low, Middle and High. The higher the quality, the picture will be clearer. Pictures Save To: FTP or SD card. If you have done FTP and Alarm settings, when alarming, the camera will snap pictures to the FTP or SD card automatically. If you select the FTP, you can set the file name which the picture save to.
  • Page 57: Detector

    Figure 4.44 4.5 Detector 4.5.1 Motion Detection IP Camera supports Motion Detection Alarm,when the motion has been detected, the IP Camera will make a alarm. Figure 4.45 To enable action detection, follow the steps below: Step 01: Enable action detection...
  • Page 58 Step 02: Sensitivity---- It supports five modes: Lowest, Lower, Low, Medium and High. The higher the sensitivity, the camera will be more easily alarmed. Select one motion sensitivity. Step 03: Trigger interval--- The interval time between two motion detection. Step 04: Select the alarm indicator There are some alarm indicators: A Camera Sound and PC Sound if you select Camera Sound or PC Sound, when the motion has been detected, the people around the camera...
  • Page 59 Figure 4.46 Step 06: Alarm Schedule ① Alarm anytime when motion is detected Click the black button up the MON, you will see all time range turn red. When something moving in the detection area at anytime, the camera will alarm. Click this button and select all time range Figure 4.47 ②...
  • Page 60: Sound Detection

    Figure 4.48 ③ Press the left mouse and drag it on the time boxes, you can select the serial area. Figure 4.49 Step 07: Click Save button to take effect. When the motion has been detected during the detection time in the detection area, the camera will alarm and adopt the corresponding alarm indicators.
  • Page 61: Record

    If the Sensitivity is set to “High”, the camera will detect the sound whose more than 55db. If the Sensitivity is set to “Medium”, the camera will detect the sound whose more than 65db. If the Sensitivity is set to “Low”, the camera will detect the sound whose more than 75db. If the Sensitivity is set to “Lower”, the camera will detect the sound whose more than 85db.
  • Page 62: Alarm Recording

    Figure 4.50 Recording Location: SD card , FTP , SD card and cloud. When the camera alarmed, it will store the alarm files to the SD card,FTP or cloud. Make sure the camera has been inserted the SD card. On this page, you can see the available space of the SD card. Local Recording Location: For Windows OS, the location recording path is c:/ IPCamRecord, you can change another one.
  • Page 63: Scheduled Recording

    Figure 4.52 4.6.4 Scheduled Recording On the page you can configure the schedule record. When the parameter Recording Location is set SD Card on the Storage Location page, you can configure parameters as shown in follow figure. Figure 4.53 When the parameter Recording Location is set FTP on the Storage Location page, you can configure parameters as shown in follow figure.
  • Page 64: Sd Card Management

    Figure 4.54 Click Save button to take effect. 4.6.5 SD Card Management This camera supports SD Card and the max size of SD card must be under 32G. Go to the SettingsDevice StatusDevice Status page, you can see the SD card status.
  • Page 65: Firewall

    Figure 4.55 The default storage path of alarm record files is SD card, when the available size of SD card is less than 256M, the old record files will be deleted automatically. 4.8 Firewall This section explains how to control the access permission by checking the client PC’s IP addresses. It is composed of the following columns: Block access from these IP addresses and Only allow access from these IP addresses.
  • Page 66: System

    addresses are in the IP list cannot access the Network Camera. Click Save to take effect. 4.9 System In this panel, you can backup/restore your camera settings, upgrade the firmware to the latest version, restore the camera to default settings and reboot the device. 4.9.1 Back-up&...
  • Page 67 Figure 4.58 Upgrade Firmware by Equipment Search Tool Double click the Equipment Search Tool shot icon , select the Camera IP that you want to upgrade the firmware. Then select Upgrade Firmware and enter the username and password, choose the firmware file, and upgrade.
  • Page 68: Patch Installation

    Figure 4.60 CAUTION: If your camera works well with the current firmware, we recommend not upgrading. Please don’t upgrade the firmware unnecessarily. Your camera may be damaged if misconfigured during an upgrade. NOTE: 1) Before upgrade the firmware, please unplug the SD card and reboot the camera, don’t upgrade the firmware in WAN through the web UI, or else the upgrade process may be failed.
  • Page 69: Playback

    Figure 4.62 5 Playback On this page you can view the record files stored in the SD card. NOTE: The FC1403P does not support the function. Section 1 Define the Record files time and Type : The storage path of record files : Here supports three types: current day, current month and All records.
  • Page 70: Appendix

    : The type of records files, Here supports two typs: Normal record, Alarm record and All records. : Click this button to search all record files satisfy the conditions you selected. Continuous Play: Select the checkbox to play continuously all the record files. Section 2 Search record files On this panel you can see all record files satisfy the conditions you set.
  • Page 71: Install The Add-On Of Firefox Browser, Google Chrome And Ie Chrome

    6.1.1 Install the add-on of Firefox browser, Google Chrome and IE Chrome. Figure 6.1 Figure 6.2...
  • Page 72 Figure 6.3 Figure 6.4...
  • Page 73 Figure 6.5 Figure 6.6...
  • Page 74: Uninstall The Add-On Of Firefox Browser, Google Chrome And Ie Chrome

    6.1.2 Uninstall the add-on of Firefox browser, Google Chrome and IE Chrome. Figure 6.7...
  • Page 75: I Have Forgotten The Administrator Password

    Figure 6.8 Figure 6.9 6.1.3 I have forgotten the administrator password To reset the administrator username and password, press and hold down the RESET BUTTON for 5 seconds. Upon releasing the reset button, wait for 20 seconds, the camera will reboot and the username and password will return to the factory default administrator username and password.
  • Page 76: Subnet Doesn't Match

    IE browserToolInternet PropertiesSecurityTrusted sitesSitesAdd (2) Open IE browser, then right click, select “Run as administrator” 6.1.5 Subnet doesn’t match Check whether your ipcamera in the same subnet of your computer. The step is Control PanelNetwork ConnectionsDbclick Local Area Connections  Choose GeneralProperties.(Figure 3.23/3.24) Check subnet mask, IP address and gateways.
  • Page 77: Can't Access Ip Camera In Internet

    Figure6.7 NOTE: Make sure that your firewall or anti-virus software does not block the camera or ActiveX. If you could not see video, please shut down firewall or anti-virus software to try again. 6.1.7 Can’t access IP camera in internet There are some reasons: 1、ActiveX controller is not installed correctly 2、The port which camera used is blocked by Firewall or Anti-virus software.
  • Page 78: Default Parameters

    6.2 Default Parameters Default network Parameters IP address: obtain dynamically Subnet mask: obtain dynamically Gateway: obtain dynamically DDNS: Embedded domain name Username and password Default username is admin with a blank password. 6.3 Specifications Sensor High Definition Color CMOS Sensor Image Sensor Display Resolution 1.0M Pixels(1280*720)...
  • Page 79: Ce & Fcc

    Requirements Microsoft IE8 and above version or compatible browser; Mozilla Firefox; Browser Google Chrome; Apple Safari. Motion Detection Sound Detection Alarm via E-Mail, upload alarm snapshot to FTP PIR Detection Two-way Audio Supports Two-way Audio via Smartphone App or Web Client WiFi and System LEDs one system LED(Red), one wifi LED(Green) Other Features...
  • Page 80 his own expense. FCC Caution Any changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
