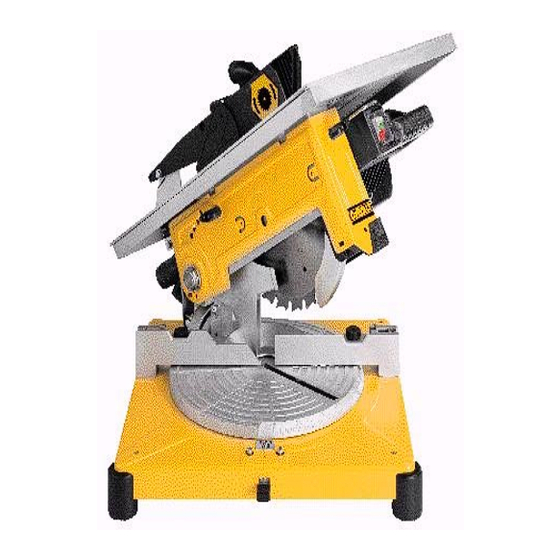

- Page 1 PRODUCT BULLETIN DEWALT DW710 TYPE 2 TABLE MITRE SAW JUNE 1999...
- Page 3 Contents Attached to this Bulletin : Copy of service parts lists DW710-----B Copy of service parts drawings E12685, E12686 Wiring Diagram E12791 Introduction Introduce the new version of the DW710 changed to type 2. The product has been standardised to incorporate some of the features designed into the DW711, for your information the following items have been changed : item 121 New two piece fence to provide better adjustment when cutting small...
- Page 4 items 45, 24 32, 76 New fixings to replace the old system for locking the guard (See also comments on segment) item 51 New riving knife to improvem alignment to blade nad allow fitting of new TGS guard item 83 Handles standardised between DW711 (needed for new switch) and DW710 item 84...
- Page 8 DW710-----B A2 ------------------------------------------------- ITEM DESCRIPTION PART NO. QTY 1 FOOT 402804-00 4 2 LEVER 862002-00 1 3 CAP 760427-00 1 4 BRACKET 863612-00 1 5 SCREW 860094-03 2 6 KNOB 862428-00 1 7 SCREW 949889-02 1 8 BASE 863608-05 1 9 PIN 863072-00 1 10 SPACER...
- Page 9 68 PIN 863607-00 1 69 CLAMP 861692-00 1 70 SCREW 863262-00 1 71 SCREW 860094-02 1 72 PIN 863605-00 1 73 O RING 949746-02 1 74 PIN 860088-10 1 75 SCREW 949853-04 1 76 SCREW 860093-14 1 78 KNOB 946469-00 1 79 GASKET 863026-00 1 81 WASHER SPRING...
- Page 10 134 WASHER 860073-14 2 135 CAP 863112-00 1 136 COVER 860445-00 1 137 FAN 945841-00 1 138 HOUSING SA 861345-00 1 139 * CAP 861336-02 1 T-AFTER WEEK 36-97 139 * CAP 861336-00 1 T-PRE WEEK 36-97 140 TIE ROD 863015-00 1 142 STATOR SA 230V 864313-15 1...
