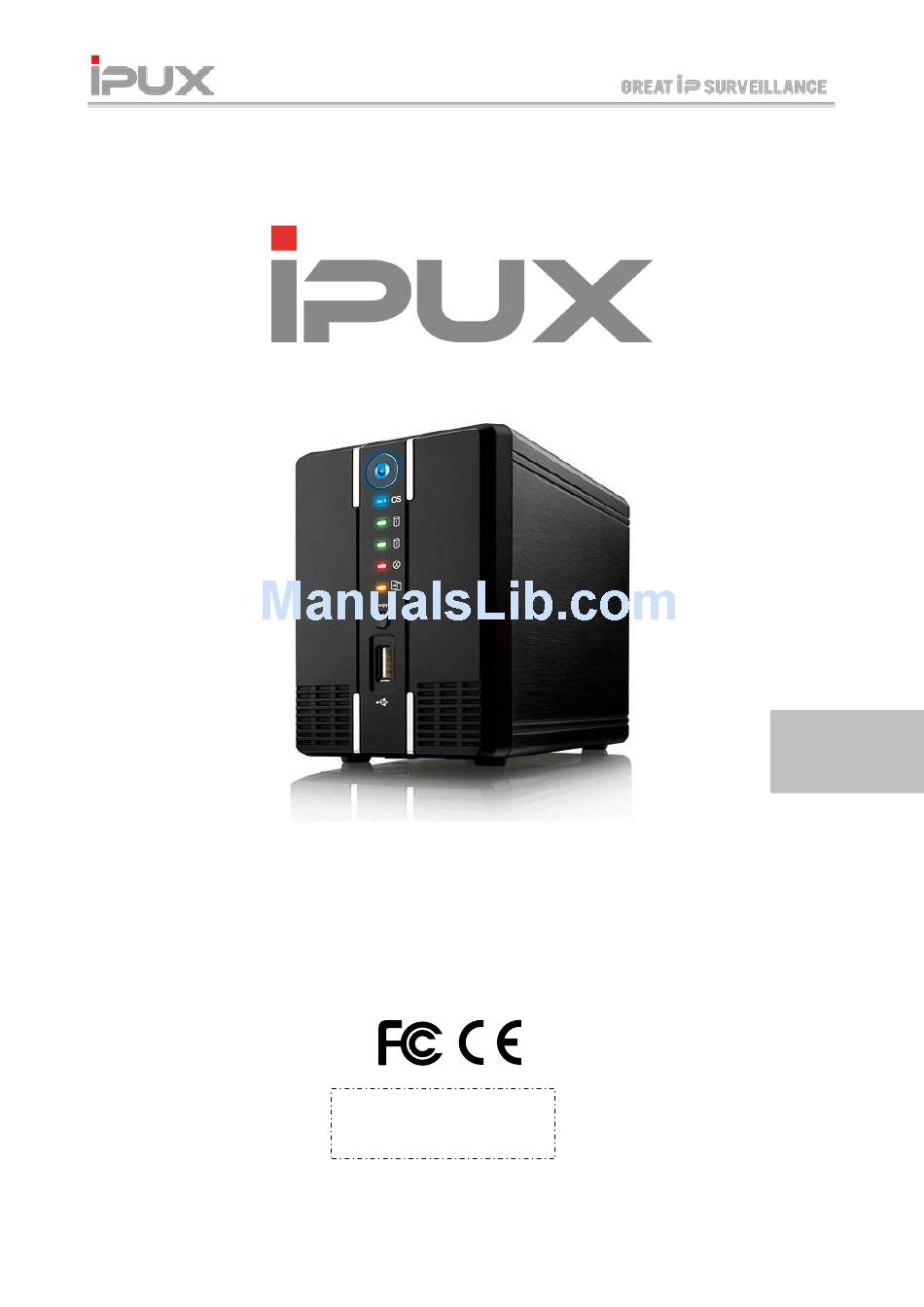

Page 1: Quick Installation Guide
Quick Installation Guide Version 1.4 BARCODE... -
Page 2: System Requirements
© Copyright 2013 by IPUX. All Rights Reserved The information contained in this manual is believed to be accurate and reliable. IPUX assumes no responsibility for any errors contained in this manual. IPUX reserves the right to make changes in the specifications and/or design of this product without prior notice. -
Page 3: Detailed View
1.6 Detailed View Label Description USB 2.0 host port Gigabit Ethernet port DC +12V Power receptacle Reset System reset button Security lock slot Meaning Power button (blue when turned on) Blue = System ready Flashing blue = System is starting up or shutting down Flashing green = Data access Red = System error or upgrade firmware ... -
Page 4: Getting Started
2 Getting Started 2.1 Before Use 2.1.1 Network Setup Do not connect the device directly to your computer but to a network switch or router on the same local network as the computer that is used to access the data. Note To make use of all the functions and features, make sure the device is connected to a network with internet access. - Page 5 Choose your preferred language and then click the Next button Click Search button, the NVR Setup Wizard will start searching for all the available NVRs on the LAN currently. Choose one of them, and then click the Next button.
- Page 6 Type in the admin password (default is “1234”), click the OK button and then click the Next button. Type in the NVR hostname, http port (default is 80) and eth0/eth1 network setting, and then click the Next button.
- Page 7 DHCP IP Setting: obtain IP Address, Netmask, Gateway, Primary DNS Sever and Secondary DNS Server automatically via DHCP Static IP Setting: configure IP Address, Netmask, Gateway, Primary DNS Sever and Secondary DNS Server manually. Add cameras for this server. Click Search to automatically find all IP cameras on the LAN currently.
- Page 8 10. Type in Admin Name and Password of searched IP camera or manually configuring the IP cameras for the Address, Port, Admin Name, Password, CH ID(video server only), Vendor, Model No. and click Apply and then Next button. 11. Click Start up NVR remote client or Start up NVR Web client to bring up the NVR remote client or Web client.
- Page 9 2.1.3 Remote login via NVR Remote Client Click the Start button -> NVR Client -> NVR Remote Client at your Windows® desktop. When the client is up, you will see the following login window. Login your NVR unit by entering its NVR Name, IP Address, Port No., User Name, Password, Language and Resolution and then click OK begin using this unit.
