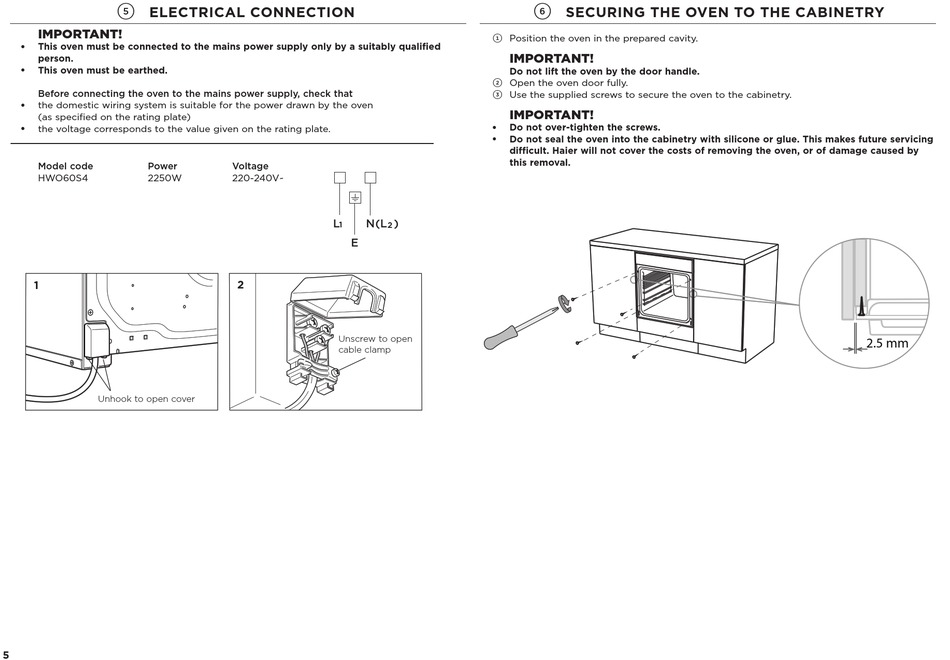

5 ELECTRICAL CONNECTION
IMPORTANT!
This oven must be connected to the mains power supply only by a suitably qualified
● ●
person.
This oven must be earthed.
● ●
Before connecting the oven to the mains power supply, check that
the domestic wiring system is suitable for the power drawn by the oven
● ●
(as specified on the rating plate)
the voltage corresponds to the value given on the rating plate.
● ●
Model code Power
HWO60S4 2250W
1
Unhook to open cover
5
230-240 V~ 2350-2550W
230-240 V~ 3095-3370W
Voltage
220-240V~
L N (L )
1 2
E
2
Unscrew to open
cable clamp
L N (L ) E
1 2
6 SECURING THE OVEN TO THE CABINETRY
1 Position the oven in the prepared cavity.
IMPORTANT!
Do not lift the oven by the door handle.
2 Open the oven door fully.
3 Use the supplied screws to secure the oven to the cabinetry.
IMPORTANT!
Do not over-tighten the screws.
● ●
Do not seal the oven into the cabinetry with silicone or glue. This makes future servicing
● ●
difficult. Haier will not cover the costs of removing the oven, or of damage caused by
this removal.
2.5 mm
