TROUBLESHOOTING

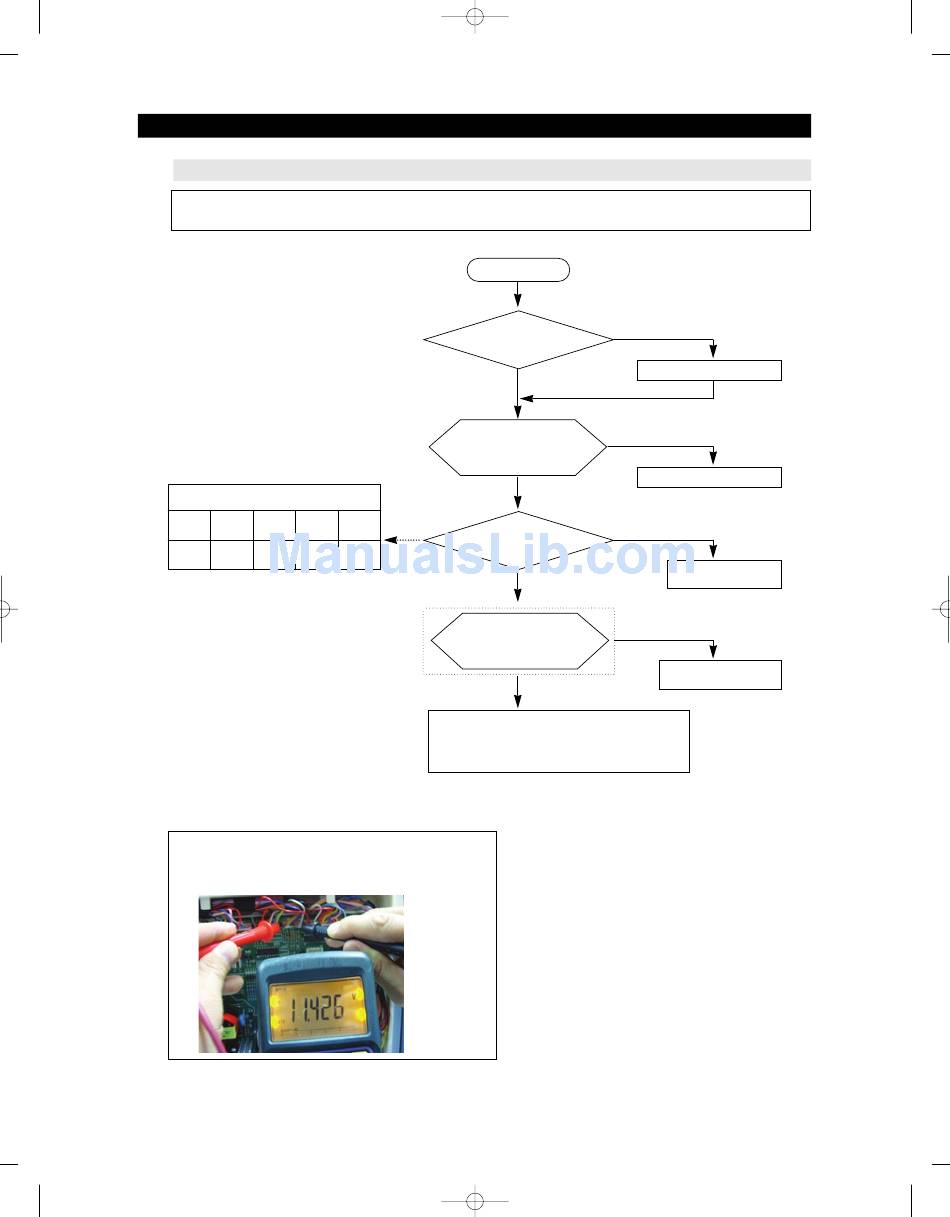

4-2-4. If FAN does not operate(Flex Room - FAN)

- This refrigerator has BLDC FAN motor. BLDC motor is driven by DC10~12V
- When COMP ON, normally with F-FAN motor.
Flex Room control temperature
Micom
Sort
(IC01)
37℉
Temperaure
(3℃)
☞ Checking method of Flex Zoon FAN Motor Voltage with the voltage
between CN79-"1"(Orange) and "3"(Blue) shall be less than DC10~12V
- Additional check if resistance values are different after measurement.
1) Flex Room - FAN
Initial Heater Working
power On off heater
42℉ 27℉ 32℉
(6℃) (-3℃) (0℃)
◆ Predicted Cause
① FAN-MOTOR troubles itself
② Bad wiring connections.
③ Wrong Input of the fan motor rotation pulse
Start
Is COMPRESSOR ON ?
Yes
Is the voltage between
CN79-"1"(Orange) and "3"(Blue)
(Black) around DC10~12V?
No
Is the Flex
Room temperature suitable for
the Fan working?
Yes
Does DC7~12V alternate
with below DC2V between CN79-
"1"(Orange) and "3"(Blue)
Yes
82
No
Execute manual operation
Yes
FAN works normally
No
Operation
temperature/ready
No
Replace MAIN PCB
