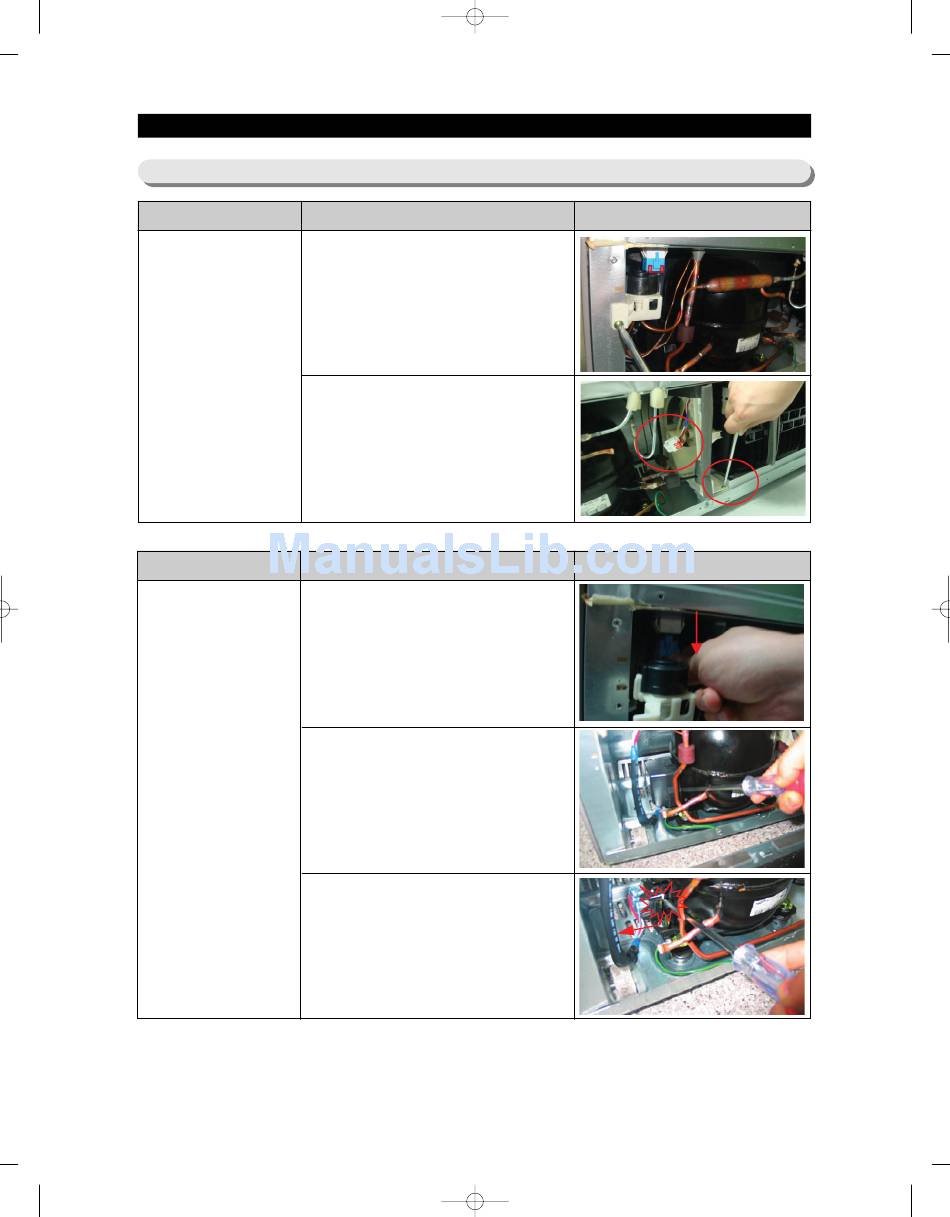

DISASSEMBLY AND REASSEMBLY
3-29) Machine Compartment
Part Name
Step Valve
Part Name
Relay O/L
How To Do
1. Unscrew 1 screw fixed on left.
2. Disengage the housing
connector.
How To Do
1. Disengage the housing
connector.
2. Remove Cover Relay.
3. Remove the relay O/L with a
flat-blade screwdriver.
(Refer to the picture)
