PRODUCT SPECIFICATIONS

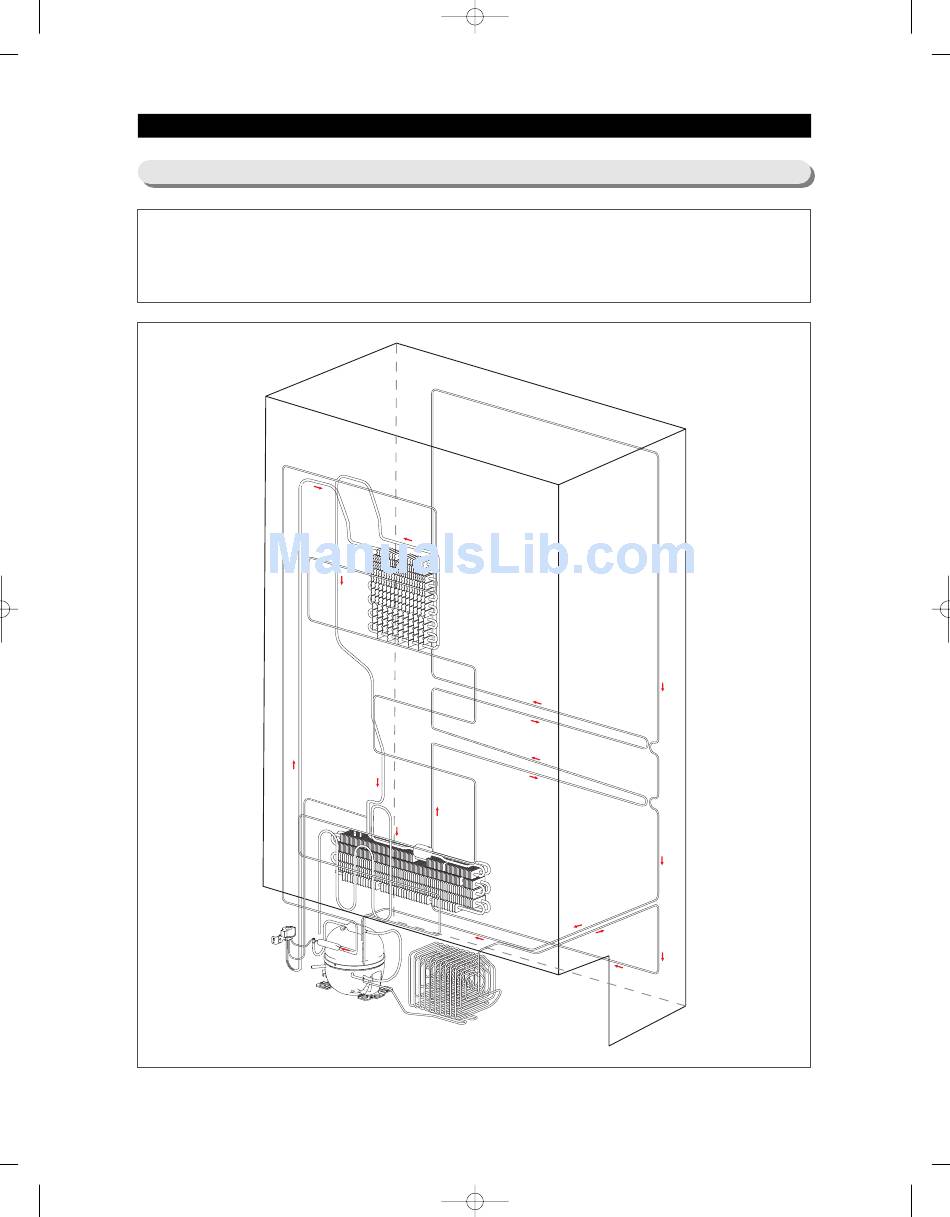

2-7) Refrigerant Route in Refrigeration cycle
1. Compressor → Condenser → Hot Pipe → Back Cluster Pipe → Dryer → Ref Capillary Tube → Refrigerator
Evaporator → Freezer Evaporator → Suction Pipe → Compressor
2. Compressor → Condenser → Hot Pipe → Back Cluster Pipe → Dryer → Fre Capillary Tube → Freezer
Evaporator → Suction Pipe → Compressor
20
