Dim plex W all-mounted Fan Convector
M odel : W FE 3TNB and WFE 3TNS

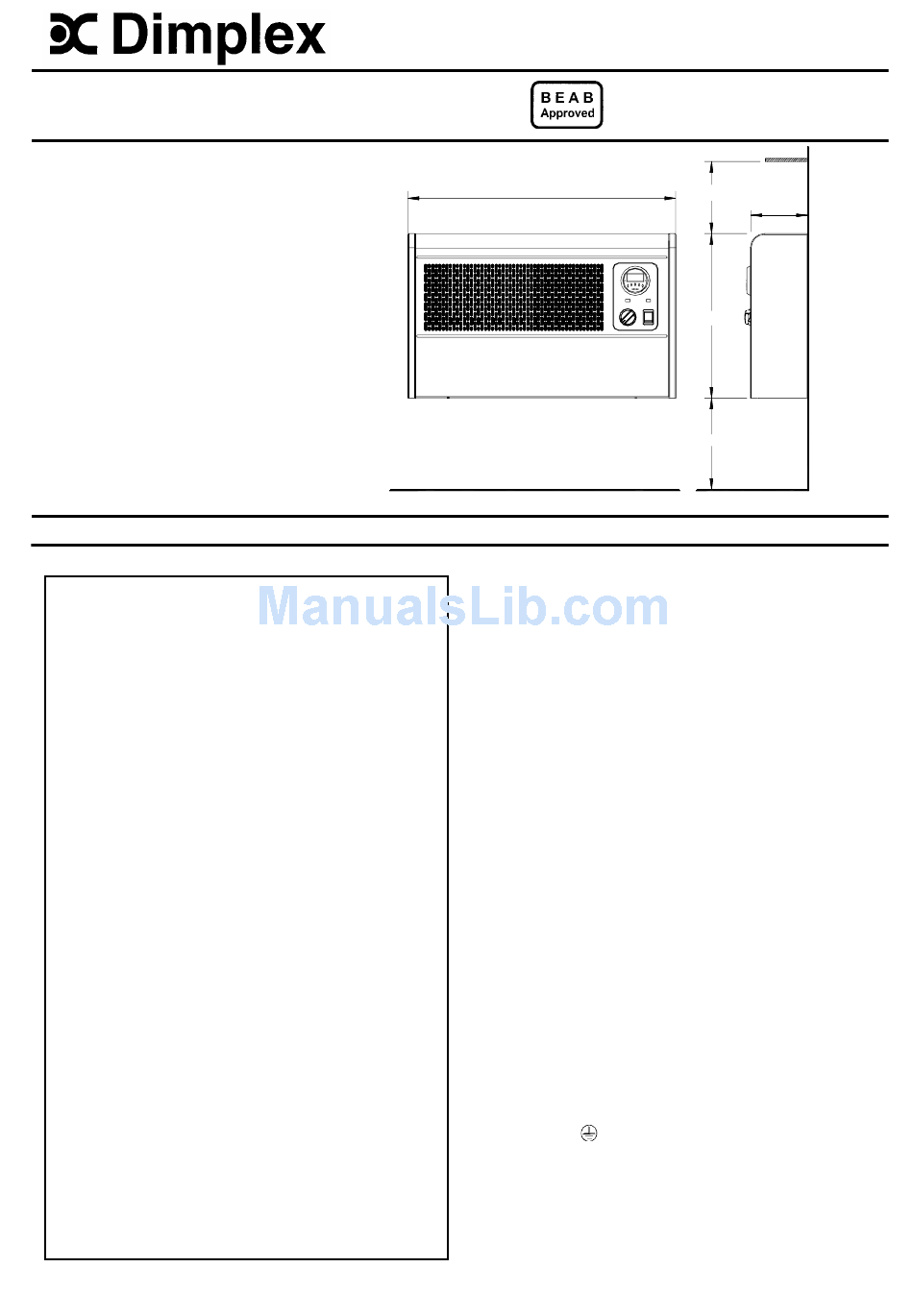

Dimensions
Model(s) Specification
WFE 3TNB 3Kw Thermostat, Switch, 24Hr Timer - Bl
WFE 3TNS 3Kw Thermostat, Switch, 24Hr Timer - Si
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
IMPORTANT SAFETY ADVICE
•
WARNING – THIS APPLIANCE MUST NOT BE USED IN
A BATHROOM.
•
WARNING – DO NOT USE THIS HEATER IN THE
IMMEDIATE SURROUNDINGS OF A BATH, A SHOWER
OR A SWIMMING POOL.
•
WARNING – THIS HEATER MUST NOT BE LOCATED
IMMEDIATELY ABOVE OR BELOW A FIXED SOCKET
OUTLET.
•
DO NOT USE THE HEATER UNTIL IT IS WALL
MOUNTED CORRECTLY.
•
The heater carries a warning 'Do Not Cover' to alert
the user to the risk of overheating that exists if the
heater is accidentally covered.
•
Keep combustible materials such as drapes and other
furnishings clear from the front of the heater. Do not
use heater to dry your laundry.
•
NEVER cover or obstruct in any way the air inlet slots
at the front of the heater or the heat outlet slots in the
base of the heater.
•
If young children, the aged, or infirm are likely to be
left in the vicinity of the heater, we advise that
adequate precautions
recommend that a guard be fitted to ensure contact
with the heater is avoided and objects cannot be
inserted into the product.
•
If you use this heater in conjunction with a thermal
control, a programme controller, a timer or any other
device whi ch switches on the heater automatically,
remem ber t o observe all safety warnings at all times.
•
Do not use where excessive dust or moisture is
present.
For further information, please contact our guard supplier
direct on Tel. No. 01603 667957, or in the case of difficulty
or for further advice contact our Customer Helpline.
ack
lver
should be taken. We
Installation and Operating Instructions
571mm
Installation
Before undertaking installation work, ensure the electricity
supply is disconnected from any relevant fixed wiring.
Supply cable is not provided with this appliance, and a competent
electrician should therefore install it.
The appliance must be fitted horizontally with the cable or conduit
entry at bottom right. It should be mounted such that the underside
is at least 350mm above the floor and the top of the heater is
150mm below any overhanging shelf or obstruction.
This heater must be used on an A.C. ~ supply only and the
voltage marked on the heater must correspond to the supply
voltage.
To comply with the I.E.E. Wiring Regulations, the appliance must
be earthed; the supply circuit must be adequate for the input of the
appliance, and the circuit protected by a suitable 13A fuse. A
suitable termination to the fixed wiring of the premises must be
provided adjacent to the final position of the appliance. In this
instance, such termination can be a double-pole switch with a
contact separation of at least 3mm in all poles.
The heater must not be located immediately below a socket-
outlet.
Electrical
WARNING : THIS APPLIANCE MUST BE EARTHED.
After ensuring the electricity supply is not live, electrical
connections can be made, either to an adjacent double-pole switch
having a contact separation of at least 3mm in all poles or to a
plug-top for use in a standard 13A socket.
If the latter: Connect Green and Yellow wire to plug terminal
marked 'E' or Green or Green and Yellow. Connect Blue
wire to plug terminal marked 'N' or Black. Connect Brown wire to
plug terminal marked 'L' or Red.
Refit cover, first hooking top over the unit and then securing
bottom by refitting the two screws under the bottom edge. The
appliance is now ready for use and the electricity supply can be
reinstated.
08/18748/1 Issue 1
shelf
150mm min.
120mm
350mm
350mm min.
Fi g. 1
.
