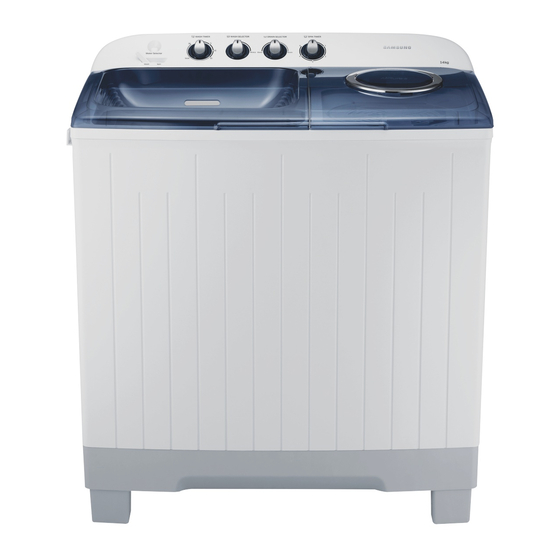

WT14J4200MB/FA

Washing Machine

user manual

imagine
the possibilities
Thank you for purchasing this Samsung product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the wt14j4200mb/fa and is the answer not in the manual?

Questions and answers

Summary of Contents for Samsung wt14j4200mb/fa

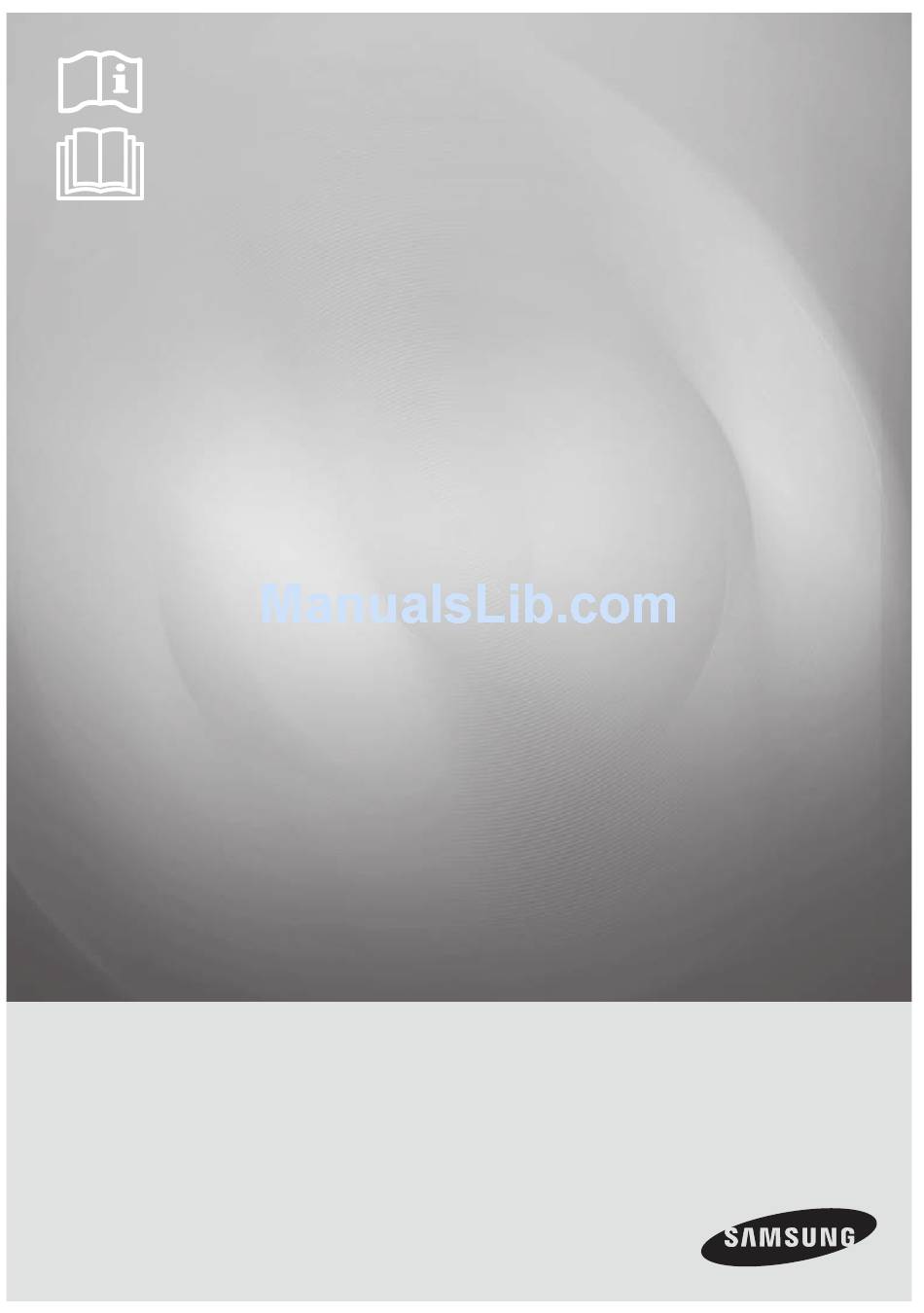

  • Page 1: Washing Machine

    WT14J4200MB/FA Washing Machine user manual imagine the possibilities Thank you for purchasing this Samsung product.
  • Page 2: Table Of Contents

    Machine or on the lid. disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. For more information on safe disposal and recycling visit our website www.samsung.com 2_ features...
  • Page 3: Precautions When Operating

    Put only washing Must follow the cautions below when the washing machine is cloths on WASH- working. TRAY. Do not let the WASH-TRAY fall in the wash-tub when the machine is running. Do not put candles Disconnect the power cord from the power &...
  • Page 4: Description Of Parts

    description of parts SPIN DRYER LID When you open this lid while the spin basket is spinning, the spinning will be stopped by brake system. OVER FLOW FILTER WATER SELECTOR LINT FILTER This is used for gathering the dregs which are made during washing. WASH TRAY Be sure to keep the tray closed during washing and spinning.
  • Page 5: Control Panel

    WT12J4200MR/NQ WT14J4200MB/FA During washing,WATER SELECTOR Turn Dial should be selected to wash.During spin rinsing, WATER SELECTOR WATER SELECTOR Turn Dial should be selected to spin. This is used to set the wash time, 1-15 minutes WASH TIMER and can close the “Soak” fuction by 1-20 minutes.
  • Page 6: Installation

    installation cleaning the machine Environment Cleaning the lint filter How to move the machine. If the dregs are filled up in the lint filter after finishing Wheels are provided for easy translocation of the wash, push down(1) and pull it out(2) as shown machine.
  • Page 7: Soaking

    2. Be sure to attach the safety cover and close the 3. Set the WATER INLET SELECTOR. inner lid. spin inlet Inner Lid wash inlet Safety Cover 4. Load laundry in the wash tub. 3. Close the spin dryer lid. 5.
  • Page 8: Over Flow Wash

    Over flow wash 4. Close the spin dryer lid. 1. Keep supplying water. . Adjust water pressure to ensure that the amount of water supplied does not exceed that water drained. 5. Set the SPIN DRY TIMER 2~3 minutes. 2. Set the WASH TIMER 6~8 minutes. laundry guide Washing time Washing...
  • Page 9: Maintenance

    maintenance WHEN YOU LOAD THE LAUNDRY INTO THE SPIN BASKET. Press the laundry evenly and put the safety cover into the spin basket drum as shown in the figure. Bottom of balancer Inner Lid Safety Cover Safety cover troubleshooting Check that the power supply is in good condition. The washing machine does not Check that the power plug is inserted properly.
  • Page 10: Specifications

    CAPACITY WT14J4200MB/FA 7.0 kg 14.0 kg DIMENSIONS (WxDxH)mm WT14J4200MB/FA W931xD553xH1052mm WEIGHT WT14J4200MB/FA 31.5 kg WATER PRESSURE 0.1~0.6 MPa STANDARD QUANTITY OF WATER Low : 42L Middle : 65L High : 87L RATING TIME Washing 35minutes (Soak 20) / Spinning 5minutes...
  • Page 11 memo...
  • Page 12 603-77137477(Overseas contact) 1-800-10-7267864 [PLDT] PHILIPPINES 1-800-8-7267864 [Globe landline amd Mobile] www.samsung.com/ph/support 02-4222111 [Other landline] SINGAPORE www.samsung.com/sg/support 1800-SAMSUNG(726-7864) 1 800 588 889 VIETNAM www.samsung.com/vn/support 0860-SAMSUNG(726-7864 ) SOUTH AFRICA www.samsung.com/support IRAN 021-8255 www.samsung.com/iran/support PAKISTAN 0800-Samsung (72678) www.samsung.com/pk/support TUNISIA www.samsung.com/n_africa/support www.samsung.com/ae/support (English) KUWAIT 183-CALL (183-2255) www.samsung.com/ae_ar/support (Arabic)
