Summary of Contents for Baxi Solaire Super
-

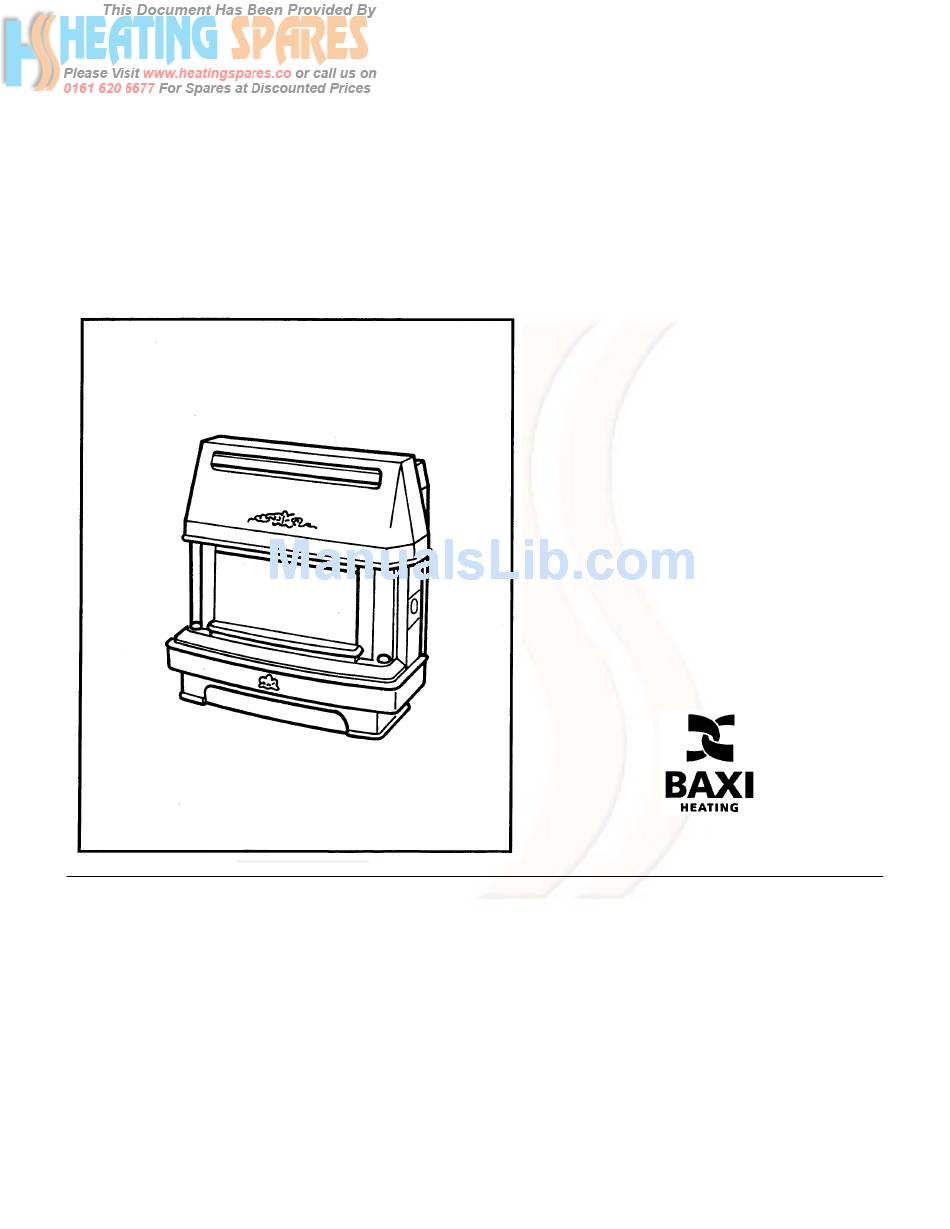

Page 1: Servicing Instructions
Please leave these Instructions with the user. Baxi Solaire Super Gas Fire Natural Gas Comp N 236216 - 10/95 Baxi Solaire Super - G.C.N 32 077 36 Installation Servicing Instructions Supplied By www.heating spares.co Tel. 0161 620 6677... -
Page 2: Installation Instructions

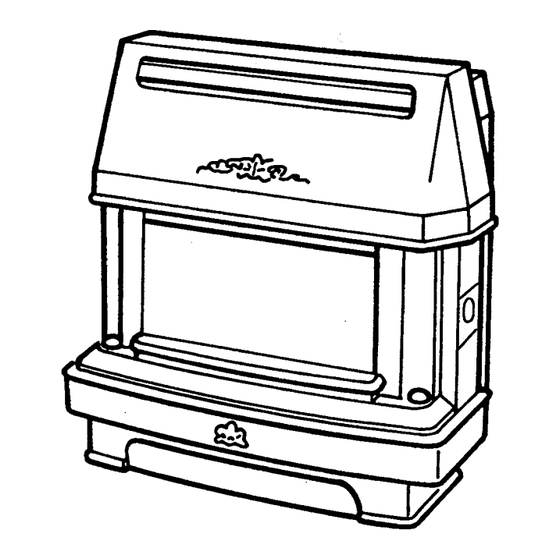

INTRODUCTION A shelf may be fitted above the fire provided that it does The Baxi Solaire Super is a hearth or wall mounted gas fired not exceed 150mm (6in deep) and is at least 100mm room heater with a flame and coal effect. Input at maximum (4in) above the top of the fire. -
Page 3: Appliance Details
Appliance Details – Page 3 Dimensions Projection in room HEIGHT 706mm (27 WIDTH 696mm (27 ½ in) DEPTH 317mm (12 ½ in) INPUT High - 5.42kW (18,500 Btu/h) Low - 2.10kW (7,200 Btu/h) OUTPUT High - 3.47kW (11,840 Btu/h) SETTING PRESSURE 12.5 mbar ±... -
Page 4: Installation
Installation – Page 4 PREPARATION (a) Where the closure plate is more than adequate in height to cover the fireplace opening, trim a minimum of 35mm (1 in) from the top of the closure plate to prevent the sealing tape being seen above the fire. Where the closure plate is inadequate to cover the fireplace opening completely or where it is required for the sake of appearance a NON-COMBUSTIBLE infill... -
Page 5: Test For Spillage
Commission the Fire – Page 5 Check the gas pressure (Figs 7 and 11) (a) Remove the packing securing the coal bed as follows: Slide the glass front panel retaining clamps sideways. (ii) Lift the glass front panel bottom edge out of the locating channel and carefully remove the glass front panel. - Page 6 Commission the Fire – Page 6 Fit the Outer Case Servicing the Fire Fit the main electrical cable to the outer case. The cable Turn off the gas and withdraw the plug from the electrical supply can be routed to the left or right hand side of the case to before any servicing.
- Page 7 Commission the Fire – Page 7 Supplied By www.heating spares.co Tel. 0161 620 6677...
-
Page 8: Changing Components
Changing Components – Page 8 The following components can be removed as described through the combustion box. below after first removing the outer case. Turn off the gas (e) Remove the two screws securing the burner. and withdraw the plug from the electrical supply before Slide the burner out above the glass locating channel. -
Page 9: Short Parts List
Short Parts List – Page 9 BAXI SOLAIRE SUPER B.G.C. No 32 077 36 Key N Description G.C. Manufact’rs Part N Seal - Glass Frame 155 747 043111 Glass & Frame Assembly 155 758 040955 Knob - Gas Tap Control... - Page 10 Fault Finding Chart – Page 10-11 BAXI SOLAIRE SUPER Gas Type G20 (Natural Gas) Click here for Helplines Supplied By www.heating spares.co Tel. 0161 620 6677...
