4. Installation of the wireless router

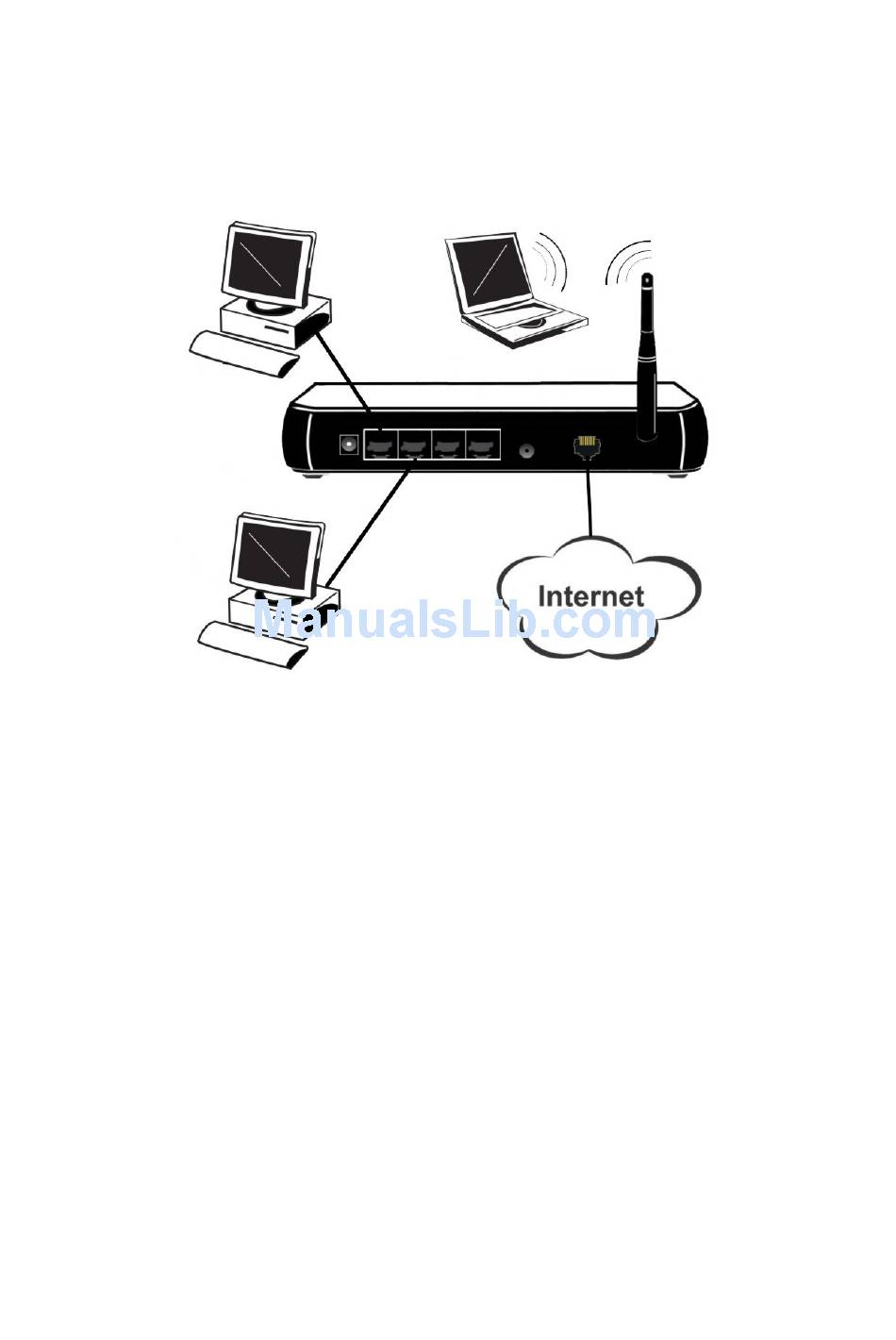

4.1 Physical installation

Before you proceed, make sure the Wireless ADSL Router is powered OFF.
1. Connect the LAN cables: For the WL-108, use standard LAN cables to connect the
PCs to the LAN ports (hub) on the broadband modem/router. You must use a
standard (straight) LAN cable for this.
2. Connect the supplied ADSL cable from the WAN port on the Wireless ADSL Router
(the RJ11 connector) to the ADSL terminator provided by your phone company.
3. Connect the power supply adapter to the broadband modem/router. Use only the
adapter supplied with the router.
4. Check the LEDs
• The Power LED should be ON.
• The Status LED should flash, then turn Off. If it stays on, there is a
hardware error.
• For each LAN (PC) connection, the LAN Link/Act LED should be ON
(provided the
• The WAN LED should be ON.
• The WLAN LED should be ON.
Return to the PC where the wireless adapter are installed and restart the PC. This way
the DHCP server of the router will assign an IP address to the wireless adapters.
Installation - WL-108
PC is also ON.)
