Summary of Contents for Activeon LX

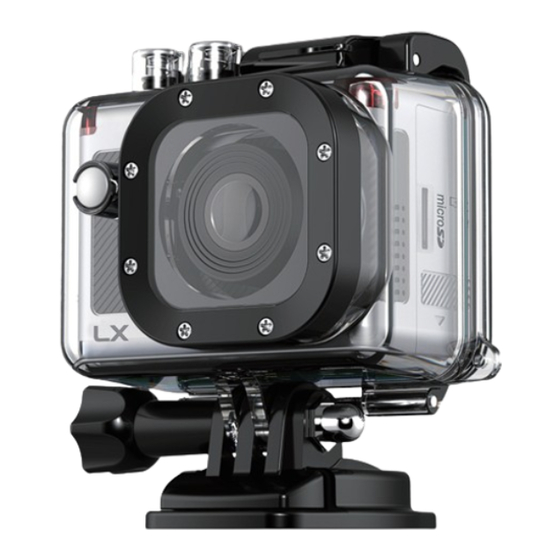

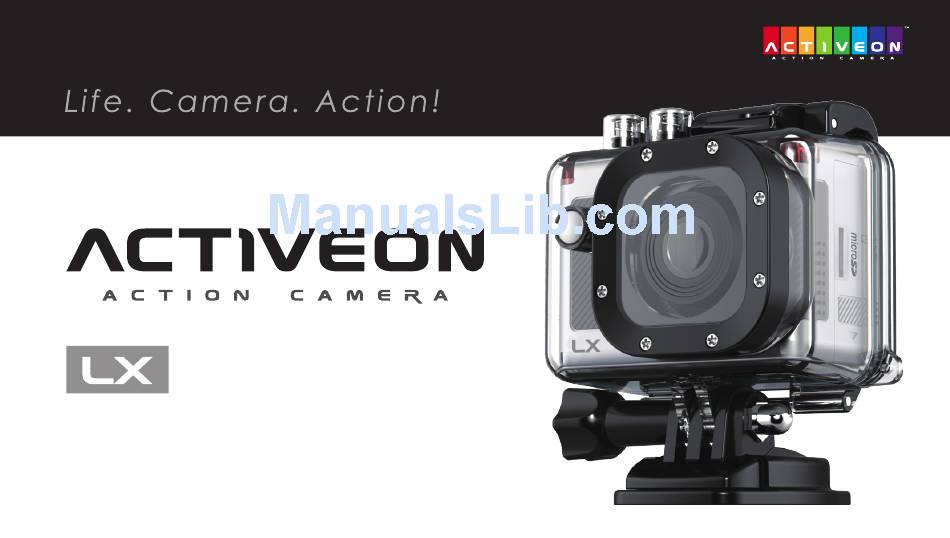

  • Page 1 USER MANUAL...

  • Page 2: Table Of Contents

    Operation & button description Start the camera LCD screen shot Graphical icon description Video recording Photo shoot Quick setup User setup menu Playback mode Recharging battery Connect ACTIVEON LX to smartphone Transferring data to computer Firmware Update Features and specifications Package Includes...

  • Page 3: Names Of Each Part

    ENGLISH U SE R MANUA L Please read this manual completely and thoroughly before use! www.activeon.com 1. Names of each part ① Power / REC. / Select ⑩ ③ ② ② Setup / Quick setup / right ③ Mode / Zoom / Left ⑤...

  • Page 4: Operation & Button Description

    2. Operation & button description ⊙ ACTIVEON LX is operated by three buttons (Button , SETUP, MODE) ● ⊙ Button ( ) means 'POWER / REC. / SELECT'. ● Button (SETUP) means 'SETUP / QUICK SETUP / RIGHT'. ● Button (MODE) means 'MODE / ZOOM / LEFT'.

  • Page 5: Start The Camera

    Zoom-in SETUP 3. Start the camera Open the battery cover and insert ACTIVEON LX Li-ion battery. Open the battery cover and insert Micro SD card. (The camera does not record when there is no Micro SD inside) ⊙ Press the shutter POWER ( ) button and hold for two seconds.

  • Page 6: Lcd Screen Shot

    4. LCD screen shot Video screen Description Function ① ② ③ ④ ⑤ Shows current shooting mode ① Current mode (video or photo) ② WiFi Shows WiFi connection status ③ Zoom Shows current zoom level ④ Memory capacity Shows usable memory capacity in percentage (%) ⑥...

  • Page 7: Graphical Icon Description

    5. Graphical icon description Function Description Mode Icons Video Recording Mode Current mode Photo Shooting Mode WiFi signal activated WiFi WiFi signal deactivated * Zoom function will be disabled during high speed recording Zoom Zoom level (Upto x4) (720p 120fps / 480p 240fps) Memory capacity Shows usable memory capacity in percentage (%) Battery...
  • Page 8 Mode Function Icons Description Full HD (1920x1080) 30fps video recording (1280x960) 30fps video recording Real HD (1280x720) 60fps / 30fps video recording Resolutions WVGA (848x480) 60fps / 30fps / 120fps video recording VIDEO * In 480p 120fps video, time-lapse mode will not be activated. Super fine video image quality * Use CLASS10 memory card only Image quality...
  • Page 9 Function Description Mode Icons Single photo shooting Captures each image of setup time and save as photo. Photo shoot ⊙ (2sec / 3sec / 5sec / 10sec / 30sec / 60sec) Press shutter REC. ( ) button to stop. options Burst photo shooting (35 photo images for 5 seconds) Photo 3.15MP (2048x1536) 4:3 ratio...

  • Page 10: Video Recording

    6. Video recording ⊙ After the camera is turned on, press button to start video recording. When the camera starts to record, LED light blinks* and shows recording time on LCD. ⊙ Press button to stop recording. Without entering user setting menu, user can select video 'QUICK SETUP' before start recording. (* If 'LED off' option is selected in user setup, LED light will not blink.) 7.

  • Page 11: Quick Setup

    8. Quick setup Without entering user setting menu, user can adjust various quick setups in live screen. ● Press (SETUP) button to select quick setup options on bottom of the screen. Quick setup mode changes as → → → → recording option resolution image quality...
  • Page 12 Quick setup screen Operation Video quick setup screen ● Press (SETUP) button to go to quick setup ● Select video resolution and recording speed ● Use (SETUP) and (MODE) button to choose option ● ⊙ Press button to confirm setting option ●...

  • Page 13: User Setup Menu

    Quick setup screen Operation Photo quick setup screen ● Press (SETUP) button to go to quick setup ● Select photo shooting option ● Use (SETUP) and (MODE) button to choose option ● ⊙ Press button to confirm setting option ● Photo quick setup screen ●...
  • Page 14 Function Sub menu Description Video Manual Timer 1min, 5min, 10min, 30min Recording Time lapse 1sec, 3sec, 5sec, 10sec, 30sec option (captures each image of setup time and save as video file) Multi file REC. 1min, 5min, 10min, 30min (record consecutive video files of setup time) NTSC 1080p 30fps 1080p 25fps...
  • Page 15 Function Sub menu Description Photo Manual Time lapse 2sec, 3sec, 5sec, 10sec, 30sec, 60sec Recording (captures each image of setup time and save as photo) option Burst photo-shooting (35 photo images for 5 seconds) 3.15M (2048 x 1536) 4:3 Resolution 3.5M (2304 x 1536) 3:2 3M (2304 x 1296) 16:9 Super Fine (...
  • Page 16 Function Sub menu Description Settings Mic. Volume Off, 30%, 60%, 100% Buzzer Buzzer On / Off LED On / Off WiFi WiFi On / Off TV Out NTSC / PAL TV OSD TV OSD On / Off Time Set current time (YYYY/MM/DD HH:MM) Yes / No.

  • Page 17: Playback Mode

    10. Playback mode Press (MODE) button and hold for two seconds to change to playback mode. ● Mode changes as ● → → → video mode photo mode playback mode video mode ) in turn. User can view recorded video or photo through LCD screen of the camera. ●...
  • Page 18 Playback mode Operation Thumbnail of video files. Select the file to play ● Press (SETUP) and (MODE) button to use control panel ● ⊙ Press ( ) button to select ● Video playback ● Press (SETUP) and (MODE) button to use control panel ●...

  • Page 19: Recharging Battery

    Operation Playback mode Photo playback ● Press (SETUP) and (MODE) button to use control panel ● ⊙ Press ( ) button to select ● 11. Recharging battery LCD will show the low battery icon when the battery is too low and close to the cut off level. ●...

  • Page 20: Connect Activeon Lx To Smartphone

    12. Smartphone control Utilizing WiFi function of ACTIVEON LX, user can control the camera through smartphone. ● Compatible with iOS ver. 5.0 or better, Android OS Ginger Bread or better. ● Before connect the camera, download 'ACTIVEON APP' application from smartphone app store.
  • Page 21 '12345678' in smartphone. Select 'ACTV_xxxx' in WiFi ● Setup WiFi connection Click 'Connect' button in app- ● ● setting. between the camera and lication to connect ACTIVEON LX. the smartphone. Smartphone screen will display ● live screen of the camera.
  • Page 22 2. While smartphone is connected to the camera, the camera button operation will be disabled. 3. 'ACTIVEON APP' features will be upgraded through application update of your smartphone. 4. It does not support 'live screen', 'preview' and 'reduced size file downloading' in timelapse video or recording speeds of 120 fps and up.

  • Page 23: Transferring Data To Computer

    While the camera is connected to a Battery Charger or Car charger for recharge, the camera ● can record while it is recharging. Power on ACTIVEON LX. Connect the camera to a computer via USB cable. The camera LCD will display as 'USB Ready'.

  • Page 24: Firmware Update

    15. Firmware Update (find the latest firmware in www.activeon.com) You can always find the latest firmware updates of ACTIVEON products on the website. ● www.activeon.com Firmware upgrade may not available if battery is too low. ● Recharge up to two cells of battery gauge for proper upgrade.

  • Page 25: Features And Specifications

    16. Features and specifications "ACTIVEON LX " 1080p 30fps Action camera ● FULL HD (1920 x 1080) resolution, 30fps recording ● 60m waterproof housing ● 3.5M Pixel high precision digital Image CMOS sensor ● 140° wide-angle field of view (FOV) ●...

  • Page 26: Package Includes

    17. Package Includes Note: A microSD card is not included with the camera. A high-performance microSD card is recommended for your ACTIVEON camera. . ACTIVEON-LX . Waterproof Housing . Opened Backdoor . Flat Adhesive . Curved Adhesive Mount Mount . Long connector .
