  • Page 1 Wireless Pocket Scanner Quick Start Guide (V1.22)
  • Page 2 Copyright © 2015 This manual is copyrighted, with all right reserved. Under the copyright laws, this manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic medium or machine readable form without prior written consent of maker. Note: Due to product improvement programs, specifications and features are subject to change without prior notice.

  • Page 3: Table Of Contents

    Contents Chapter 1. Introduction .................... 4 Safety & Caution ..................5 Package ......................6 Scanner Characteristics ................7 Chapter 2. HID connection ..................8 Connect to Mobile phone or Tablet PC ............8 Step1.Scan bar code [Enable BT function] ............. 8 Step2.
  • Page 4 FCC Approval This device has been tested in accordance with the procedures and in compliance with Part 15 Subpart B of FCC Rules and keeps all requirements according ANSI C63.4 & FCC Part 15 B Regulation and CISPR22 Class B. CE Standards The CE mark as shown here indicates this product had been tested in accordance with the procedures given in European Council Directive 2004/108/EC and confirmed to comply with the Europe Standard...

  • Page 5: Chapter 1. Introduction

    Chapter 1. Introduction This barcode scanner is a brand new compact design which is especially for the applications in ticketing, stocktaking or logistic market. With its tiny and lightweight body, it can be easily carried in pocket or bag for mobility application. As the tiny compact body, the housing is designed with IP54 rating that prevents from water and dust;...

  • Page 6: 1.1 Safety & Caution

    1.1 Safety & Caution Please read the following safety statements carefully. 1. Please keep this user’s manual for reference. 2. Before cleaning the equipment, the power must be cut off. Do not use liquid or spray type of detersive to clean the equipment. Please use dampish cotton cloth to clean the equipment.

  • Page 7: Package

    Package Unpack the box, there are as follows:  Barcode Scanner  USB Cable ( Micro USB + USB plug)  Neck Strap  Battery  Quick Guide  Adaptor (Option) Visually inspect the scanner and accessories for any evidence of physical damage. If anything is missing or appears to be damaged, immediately contact your dealer.

  • Page 8: Scanner Characteristics

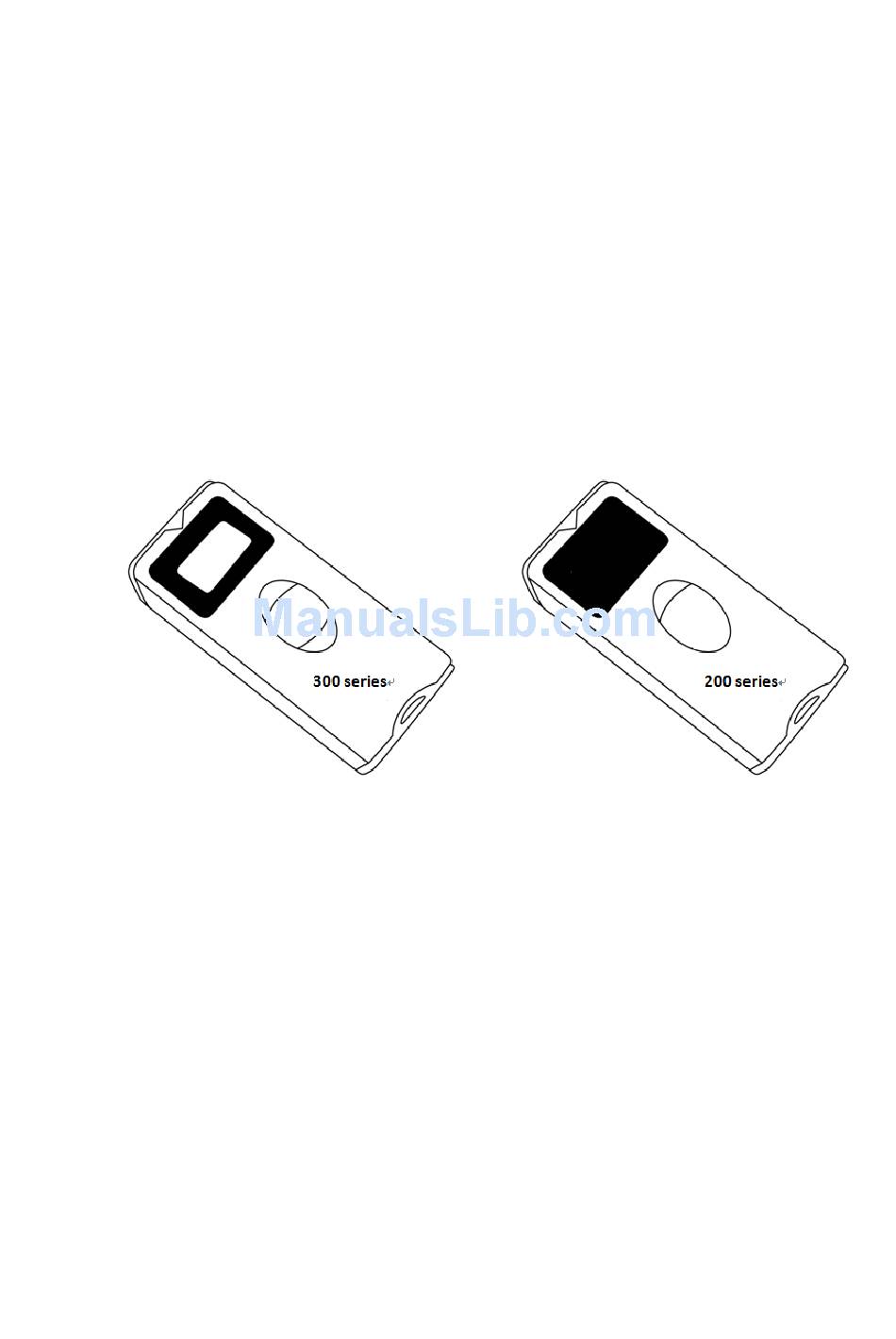

    The scanners come with 2 or 3 controls buttons and 1 indication LED. The exterior control and display are shown below. Power OFF LED Indicator UP/DOWN Scrolling Buttons Micro USB OLED Display Connector (300 Series) OK/ Power ON For Neck Strap /Trigger Button Reboot *”300x” series are including the OLED display, “200x”...

  • Page 9: Chapter 2. Hid Connection

    Chapter 2. HID connection *HID profile: pocket scanner can timely transmit the bar code data to the equipment it connected, such as mobile phone, tablet PC, PC or laptop, once when you scan the bar code label. 2.1 Connect to Mobile phone or Tablet PC Step1.Scan bar code [Enable BT function] 1.
  • Page 10 The following steps show the pairing steps for the scanner and mobile device. The user interface will have a little difference depend on your mobile device. 1. Turn on Bluetooth on mobile device. 2. Look at the searching devices list shown on mobile device. Find “Pocket Scanner”...

  • Page 11: Step3. Open A Notepad On Mobile Device And Start To Scan Barcode

    Step3. Open a notepad on mobile device and start to scan barcode.

  • Page 12: Connect To Personal Computer Or Laptop

    2.2 Connect to Personal Computer or Laptop Step1.Scan bar code [Enable BT function] 1. Scan both labels by scan ‘A’ first to be back to BT default, and following scan ‘B’ to set it to HID mode. A. BT Default B.
  • Page 13 1. Turn on Bluetooth of your PC(or Laptop), search pocket scanner 2.Look at the searching devices list shown on PC(or Laptop). Find “Pocket Scanner” and double click icon, “ ” to connect the scanner. 4. When paired, the scanner will be shown as paired device on PC(or Laptop).

  • Page 14: Step3. Open A Notepad On Pc(Or Laptop) And Start To Scan Your Barcode

    Step3. Open a notepad on PC(or Laptop) and start to scan your barcode.

  • Page 15: Chapter 3. Spp Connection

    Chapter 3. SPP connection *SPP profile: by this profile, you can transmit all bar code data saving on your pocket scanner as batch transmission at once, received via an pre-installed APP in your mobile equipment. *The barcode scanner can be connected to mobile devices, such as smart phones or tablets for further data operation.

  • Page 16: Step2. Enable Bt In Your Portable Devices And Build A Connection Between Your Mobile Device And Pocket Scanner

    Step2. Enable BT in your portable devices and build a connection between your mobile device and pocket scanner The following steps show the pairing steps for the scanner and mobile device. The user interface will have a little difference depend on your mobile. 1.

  • Page 17: Step3. Using App To Transmit All Data To Your Mobile Or Tablet Pc

    Step3. Using App to transmit all data to your mobile or tablet PC. *On the top of screen shows the product name, connection status and app version. *Connect Button: Connect app to the scanner. *Synchronize: Upload the data from scanner to mobile device. *Send Sync.

  • Page 18: Step4. Connect To Scanner

    Step4. Connect to Scanner To connect the app with mobile device, follow the steps below. 1. Press “Connect” 2. Wait for a while 3. When connected, the scanner is shown on the device list 4. On the screen top, the connection status shows “Connected”.

  • Page 19: Step5. Synchronize The Data From Scanner

    Step5. Synchronize the Data from Scanner The scanned data can be saved in the barcode scanner and the data can be uploaded to the mobile devices. Follow the steps below. 1. Press “Synchronize” to upload all the data from scanner to mobile device.

  • Page 20: Step6. Send The Synchronized Data

    Step6. Send the Synchronized Data Save the uploaded data from scanner as a file in the mobile devices. This file can be sent out to the designated email address. Therefore the data can be downloaded from PC or other equipment in order to do further data process on other PC’s or equipment.

  • Page 21: 3.2 Connect To Personal Computer Or Laptop

    3.2 Connect to Personal computer or Laptop Step1.Scan bar code [Enable BT function] 1. Scan both labels by scan ‘A’ first to be back to BT default, and following scan ‘B’ to set it to HID mode. A. BT Default B.

  • Page 22: Pc(Or Laptop) And Pocket Scanner

    Step2. Enable BT in your PC(or Laptop) and build a connection between PC(or Laptop) and pocket scanner The following steps show the pairing steps for the scanner and PC(or Laptop). The user interface will have a little difference depend on your mobile. 1.Turn on Bluetooth on computer (or Laptop).

  • Page 23: Step3. Using App To Transmit All Bar Code Data To Your Computer (Or Laptop)

    Step3. Using App to transmit all bar code data to your computer (or Laptop). *On the top of screen shows the product name, connection status and app version. *Connect Button: Connect app to the scanner. *Synchronize: Upload the data from scanner to mobile device. *Send Sync.

  • Page 24: Step4. Connect To Scanner

    Step4. Connect to Scanner *You need to confirm your pocket scanner’s com port on below. To connect the app with mobile device, follow the steps below. 1. Press “Connect” 2. Select the com port 3. Press “Connect” 4. When connected, the scanner is shown on the device list On the screen top, the connection status shows “Connected”...

  • Page 25: Step5. Synchronize The Data From Scanner

    Step5. Synchronize the Data from Scanner The scanned data can be saved in the barcode scanner and the data can be uploaded to the mobile devices. Follow the steps below. 1. Press “Synchronize” to upload all the data from scanner to computer. 2.

  • Page 26: Chapter 4. Data Format Setting

    Chapter 4. Data Format Setting The data shown in mobile devices can be formatted prior to upload the data from scanner. Therefore required data format can be used in the mobile devices. On the main screen, press “Setting” to enter the menu. The options in “Setting”...
  • Page 27 The data format to be configured is defined as following. For example: 000001, 2015-06-20_14:10:15, A, 12345678CR Data 000001 2015-06-20_ 12345678 14:10:15 Format Serial No Column Time stamp Column Barcode ID Column Barcode separator: separator: separator: separator: NONE NONE NONE NONE SPACE SPACE SPACE...
  • Page 28  Row Separator: Select one of the separators between 2 rows.  Code Page: Select different type in each Encoding Codepage  Email: Set the email address here for the data file to be sent to. When press “Send Sync. data” to send out the file, the email address will be automatically prompted.

  • Page 29: Chapter 5. Synchronize The Date And Time

    Chapter 5. Synchronize the Date and Time The data and time on the scanner can be set by “Date/Time Synchronization”, according to the mobile devices. Follow the steps below. 1. Press “Date/Time Synchronization”. The date and time in the scanner will be set according to the mobile devices.

  • Page 30: Chapter 6. Bluetooth Pin Code

    Chapter 6. Bluetooth Pin Code Enter NOTICE 1. Scan the pin code what you saw on the screen from your smart device or PC. 2. Scan the pin code”Enter” when you will complete the pin code input.
