Projector
8953H
User's Manual (concise)
Thank you for purchasing this projector.
WARNING
►Before using this product, be sure to read all manuals for this product. See "Using the
CD manual" ( 13 ) to read the manuals in the CD. After reading them, store them in a
safe place for future reference.
Contents
Contents of package .................................. 1
Arrangement ............................................. 2
Connecting your devices ........................... 3
Using a USB storage ................................ 4
Using an SD card ...................................... 4
Connecting power supply ......................... 5
Turning on the power ................................ 5
Adjusting the projector's elevator ............. 6
Remote control .......................................... 6

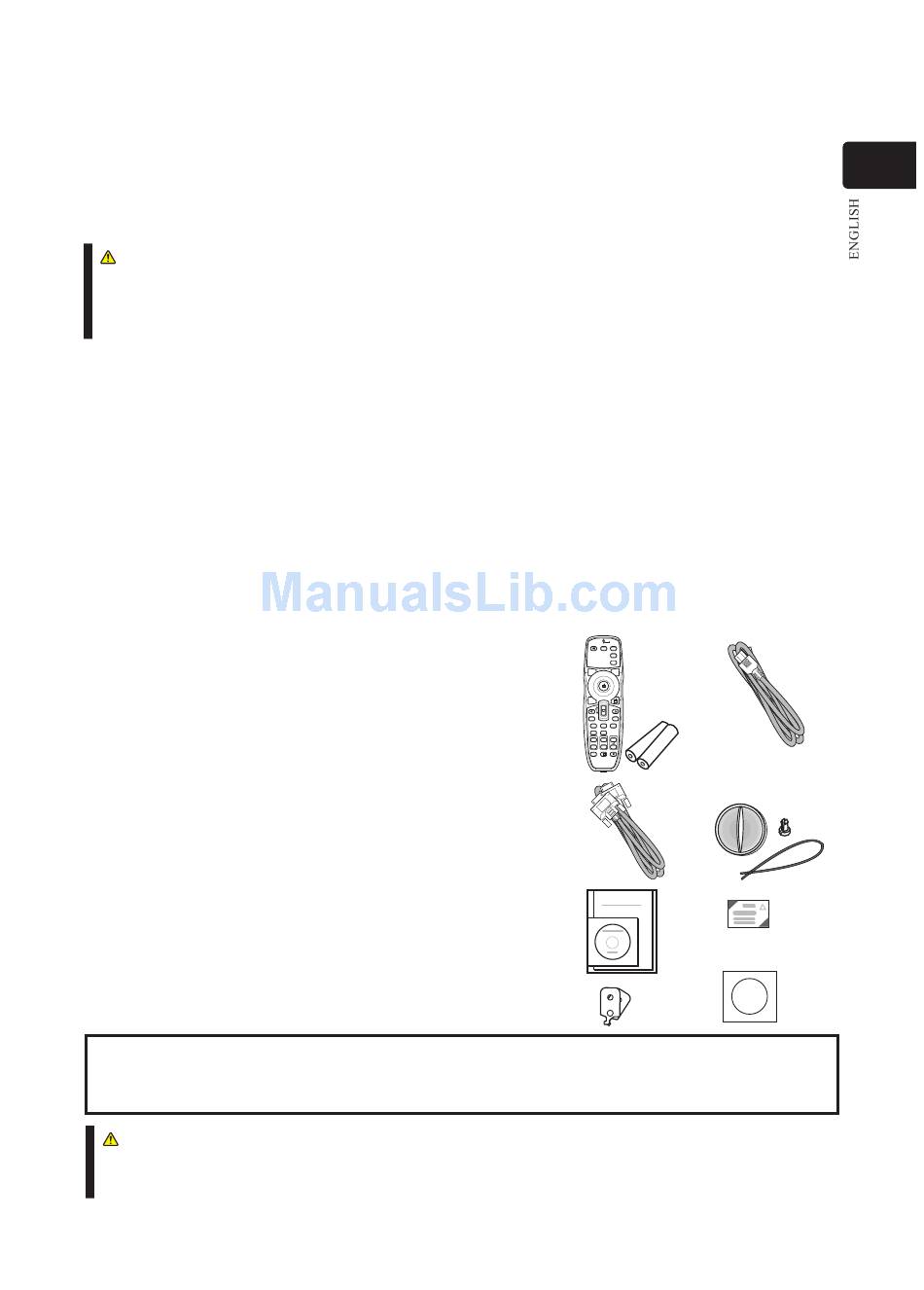

Contents of package
Your projector should come with the items shown below.
Check that all the items are included. Require of your
dealer immediately if any items are missing.
(1) Remote control with two AA batteries
(2) Power cord
(3) RGB cable
(4) Lens cover and Rivet and Strap
(5) User's manuals (Book x1, CD x1)
(6) Security label
(7) Slot cover lock
(8) Application CD
NOTE
• To use the wireless network function, the designated wireless network card that is sold as an
optional is required. (15)
CAUTION
►Keep the original packing materials for future reshipment. Be sure to use the original
packing materials when moving the projector. Use special caution for the lens.
Displaying the picture ............................... 8
Turning off the power ............................... 8
Lamp ......................................................... 9
Air filter ................................................... 11
Internal clock battery .............................. 12
Using the CD manual .............................. 13
Regulatory notices .................................. 14
Specifications .......................................... 15
Warranty and after-service ...................... 16
(1)
STANDBY/ON
BLANK
ASPECT
PUSH
ENTER
PAGE UP
ESC
POSITION
MAGNIFY
ON
OFF
FREEZE
(3)
(5)
(7)
(2)
LASER
INDICATOR
VIDEO
RGB
MY SOURCE/
DOC.CAMERA
SEARCH
LASER
PAGE DOWN
MENU
RESET
AUTO
MY BUTTON
VOLUME
1
+
2
-
KEYSTONE
MUTE
(4)
(6)
(8)
1
Advertisement
Table of Contents
Related Manuals for Dukane 8953H
Summary of Contents for Dukane 8953H
-
Page 1: Table Of Contents
Projector 8953H User's Manual (concise) Thank you for purchasing this projector. WARNING ►Before using this product, be sure to read all manuals for this product. See “Using the CD manual” ( 13 ) to read the manuals in the CD. After reading them, store them in a safe place for future reference. -
Page 2: Arrangement
Arrangement Please arrange the projector and the screen. Install the projector in a stable, cool and airy place, keeping a space of 30 cm or more between the sides of the projector and other objects such as walls. Avoid the projector from a hot, humid, dusty, or smoky place. -
Page 3: Connecting Your Devices
Connecting your devices Before connecting devices, please read the manuals for all the devices that you want to connect with this projector, to make sure that the connection is proper and prepare the connectors needed. And connect them properly according to the manuals. AUDIO OUT RGB OUT AUDIO OUT... -
Page 4: Using A Usb Storage
Using a USB storage SD card slot cover In order to view images stored in a USB storage, such as (SD card slot inside) AUX I/O port a USB memory, insert the device into the AUX I/O port. Before removing the USB storage, be sure to perform the REMOVE MEDIA procedure using the PC-LESS PRESENTATION menu under the MIU menu. -
Page 5: Connecting Power Supply
Connecting power supply 1. Connect the connector of the power cord to the AC IN (AC inlet) of the projector. 2. Firmly plug the power cor 's plug into the outlet. Connector of the AC IN power cord to the outlet WARNING ►Please use extra caution when connecting the power cord, as incorrect or faulty connections may result in fire and/or electrical shock. -
Page 6: Adjusting The Projector's Elevator
Adjusting the projector's elevator Use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating 10° the front side of the projector within 10 degrees. This projector has 2 elevator feet and 2 elevator knobs. -
Page 7: Putting Batteries
Remote control (continued) Putting batteries Please load the batteries before using the remote control. 1. Slide back and remove the battery cover. 2. Put the two AA batteries into the holder, according to the polarity markings (+) and (-) on the holder. 3. -
Page 8: Displaying The Picture
Displaying the picture ASPECT INPUT button button 1. Make sure that the signal source is sending the signal to the projector. LASER INDICATOR STANDBY/ON VIDEO MY SOURCE/ DOC.CAMERA SEARCH 2. Use the VOLUME +/- buttons to adjust the volume. To have the BLANK LASER projector silent, press the MUTE button on the remote control. -
Page 9: Lamp
Lamp A lamp has finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended. -
Page 10: Lamp Warning
Lamp (continued) Lamp warning HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. -
Page 11: Air Filter
Air filter Please check and clean the air filter periodically. When the indicators or a message prompts you to clean the air filter, comply with it as soon as possible. The air filter has two kinds of filters inside. Replace the filters when they are damaged or too soiled. To prepare the new filters, make contact with your dealer and tell the following type number. -
Page 12: Internal Clock Battery
Internal clock battery Consumption of the battery makes the clock not to work correctly. When the clock is wrong or it has stopped, please replace the battery according to the following procedures. 1. Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently. -
Page 13: Using The Cd Manual
Using the CD manual The other manuals for this product are written into the included CD-ROM titled “User’s Manual (detailed)”. Before using the CD-ROM, please read the following to ensure the proper use. System requirements The system for using the CD-ROM requires the following. ®... -
Page 14: Regulatory Notices
Regulatory notices WARNING: In the US Declaration of Conformity Trade name: HITACHI Model Number: CP-X809W Responsible Party: Hitachi Home Electronics (America), Inc. Address: 900 Hitachi way, Chula Vista, CA 91914-3556 U.S.A. Telephone Number: +1 –800-225-1741 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 15: Specifications
Specifications Item Specifications Product name Liquid crystal projector Liquid Crystal Panel 1024 horizontal x 768 vertical Lens Zoom lens F=1.7 ~ 1.9 f=24 ~ 29 mm (approx.) Lamp 275W UHB Audio output 4W x 4 Power supply AC 100-120V/5.0A, AC220-240V/2.1A Power consumption 460W Temperature range... -
Page 16: Warranty And After-Service
Please check the following web address where you may find the latest information for this projector. http://www.dukcorp.com/audiovisual Dukane Service Dept: 1.888.676.2487 NOTE • The information in this manual is subject to change without notice.
