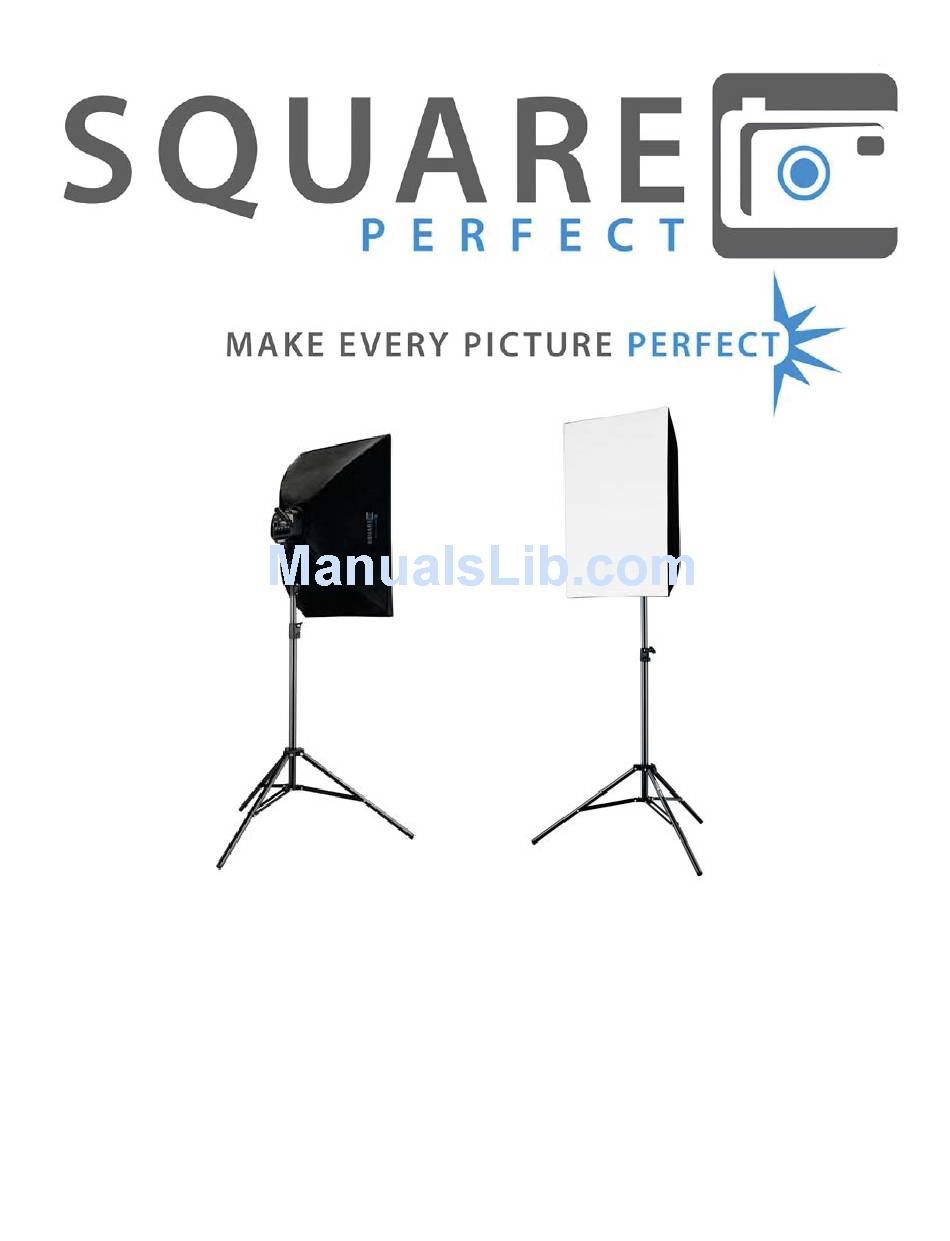

- Page 1 SP2 CONTINUOUS LIGHT KIT Model: 2816 SP2 Light Kit ASSEMBLY AND USER MANUAL Copyright 2012 DTX International...
- Page 2 This kit is perfect for beginners and professionals alike for taking those studio quality portraits without the photo studio cost. The Square Perfect 2000 Watt Photography and Digital Video Continuous Lighting Kit comes with a carrying case, 2 light stands, 2 softboxes, 2 light heads, and ten 45 watt 5000k compact fluorescent daylight balanced photo bulbs.
- Page 3 SP2 CONTINUOUS LIGHT KIT PARTS Light Stand (2) Carry Bag (1) 45W Light Bulb (10) Light Body (2) Main Diffuser Lens (2) Power Cord (2) Inner Diffuser Lens (2) Auxiliary Parts Bag (2) Softbox Body (2) High Tension Support Flex Rod (8) Copyright 2012 DTX International...
- Page 4 SP2 CONTINUOUS LIGHT KIT SETUP 1. First, open the case and remove all of the components. Then remove the components from their boxes and bags. Verify that you have all the parts listed on page 3. 2. Assembling the Softboxes A.
- Page 5 G. Install the inner diffuser lens (I) into the light box using the hook & loop fasteners on the inside the softbox body (Figure 6). H. The final step in completing the softboxes is to install the main diffuser lenses (H) over the softbox body by hooking one corner of the lens over one corner of the body and fitting the entire lens over the soft...
