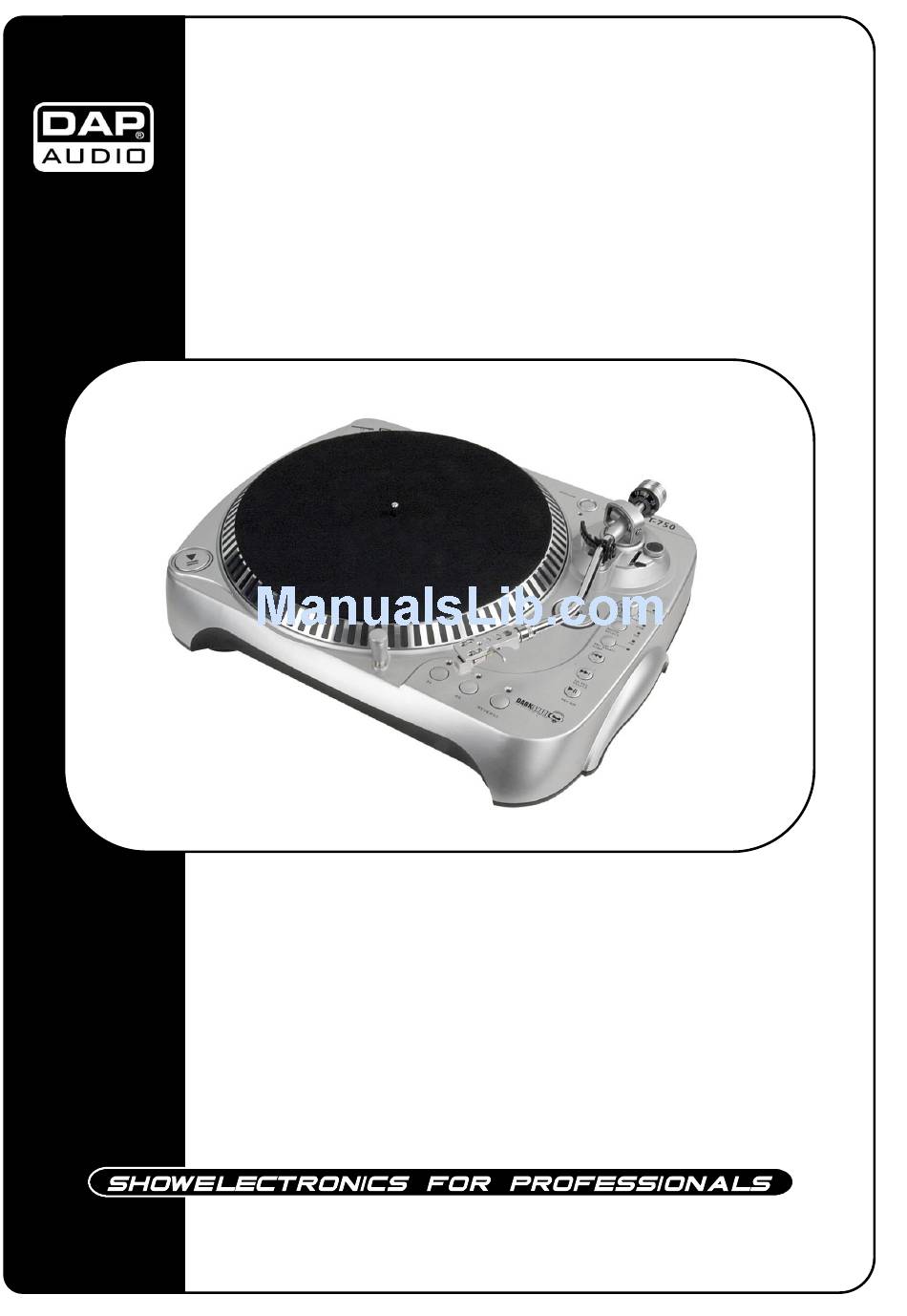

- Page 1 DS-TT-750-USB ORDERCODE D1209...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio DS-TT-750-USB brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio DS-TT-750-USB Warning.…..................…......………………………………… Unpacking Instructions............................Safety-instructions..............................Operating Determinations..........................Return Procedure..............................Claims..................................Description.…................………...………………..…......………… Features………………………………………………………………………………….…......………….… Rear Panel....………………………………………….…………….………………......…….…… Installation...............………....……………..…..………………………… Set Up and Operation..................……..…………………………….…… Phono Playback…………………….………………………………………………….……....………….… SD Playback....……………………………………………………….………………......…….…… USB Playback....……………….……………………………………….………………......…….…… Recording Phono on USB Stick/ SD Card ……………………………………………..……….....…….…… Audacity Software Quick Start...........………...………………..….....…………... -
Page 4: Dap Audio Ds-Tt-750-Usb
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP DS-TT-750-USB • USB cable – 1,30m • Power Cable – 2,10m •... -
Page 5: Operating Determinations
Do not forget to attach rubber belt to motor for correct operation. Do not place the unit in a location where it will be exposed to direct sunlight or near a heating appliance. Do not place the unit in a location where it will be exposed to dust. Do not insert objects into air vents. -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description
Description of the device Features The DS-TT-750-USB is a belt drive turntable with USB connection for PC interface: Overview DS-TT-750-USB Fig. 1 1. SD Slot Slot for inserting SD/MMC card. The contacts of the card must point downwards. The unit cannot read cards with a capacity of more than 4GB. - Page 8 20. PH LED In playback mode, the LED lights if the Turntable (Phono) is selected for playback. 21. Rec LED Lights up if the DS-TT-750-USB is in record standby mode and blinks if the DS-TT-750-USB is actually recording. 22. Tonearm To start playback, gently place the stylus on the record using the headshell finger support.
-
Page 9: Rear Panel
31. Ground (GND) 32. USB Slot This USB Slot can be used to connect the DS-TT-750-USB to your PC/ laptop. You can use this connector For playback or record with the supplied Audacity software. Make sure to use an USB cable with a maximum length of 3m. -
Page 10: Installation
Installation Remove all packing materials from the Turntable. Check that all foam and plastic padding is removed. Before use, check for the following parts included in the package with the main unit: Turntable Platter, Slip mat, 45-rpm adapter, Counterweight, Headshell. Assembly of the Turntable : 1. -
Page 11: Set Up And Operation
8. Adjustment of horizontal “zero” balance and stylus pressure: (a) Remove the stylus protector from the headshell, do not touch the stylus tip during the adjustment. (b) Set the cueing lever to the lowered position. (c) Release the tonearm clamp and lift the tonearm from the armrest to free it. (d) Rotate the counterweight, until the tonearm is approximately balanced horizontally (floats freely). -
Page 12: Sd Playback
SD-LED (19) or the USB-LED (18) start blinking. 5. When finished recording, press the Rec Start/ Stop (13) button for 2 seconds. The recording stops, the DS-TT-750-USB generates an MP-3 file and the Rec LED (21) dims. -
Page 13: Audacity Software Quick Start
Using the Audacity Software Quick start Audacity is free software, licensed under the GNU General Public License (GPL). More information as well as open source code can be found on the web at http://audacity.sourceforge.net/ Note: Please ensure you have installed the software before Setting up your PC to work with Audacity 1. -
Page 14: Recording Albums/ Tracks With Audacity
Recording Albums with Audacity 1. Saving a project Audacity writes all the changed and recorded audio to a directory called Projectname_data, which is located right where you saved the project file itself. Thus, select “ Save project as...” from your Audacity File tab and choose a location and filename for your project. -
Page 15: Maintenance
Maintenance DAP DS-TT-750-USB requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 16: Product Specifications
Product Specification Power supply: AC 80-260 V - 50/60 Hz Power consumption: 5,5 Watt Motor: DC motor Driving method: Belt Drive Starting and braking time: less than 1 sec Speed selection: 33, 45, 78 rpm Speed adjustment: +/- 10% Wow & flutter: Less than 0,2% WRMS (JIS WTD) Tone arm type: Static balanced S-shaped tone arm Computer interface: USB 1.1 compliant, Windows XP or MACOS X Audio output: Stereo RCA unbalanced... - Page 17 2009 Dap Audio.
